Removing Wire Harness For Rear Apron

Information

The number of electric plug connections will vary depending on equipment.

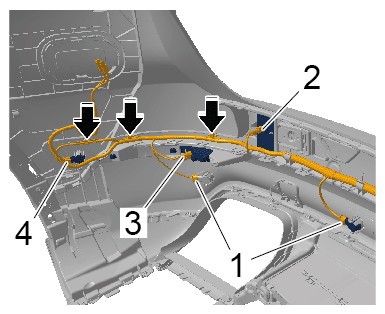

1. Release and disconnect electric plug connections -1-  on ParkAssist.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   ParkAssist

2. Release and disconnect electric plug connection -3-  on reflector.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Reflector

3. Unclip wire harness for rear apron -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wire harness

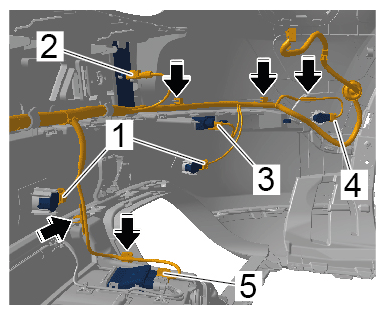

4. Release and disconnect electric plug connections -1-  on ParkAssist sensors.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   ParkAssist sensors

5. Release and disconnect electric plug connecting -2-  on mobile communication antenna.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mobile communication antenna

6. Release and disconnect electric plug connection -5-  on control unit for rear lid opener.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Control unit for rear lid opener

7. Unclip wire harness for rear apron -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wire harness

8. For vehicles with Remote parking:

   Release and disconnect electric plug connection -2-  on mobile communication antenna.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mobile communication antenna

9. For vehicles with Remote parking:

   Release and disconnect electric plug connection -4-  on parking sensor.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Parking sensor

10. For vehicles with Remote parking:

    Release and disconnect electric plug connection -4-  on parking sensor.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Parking sensor

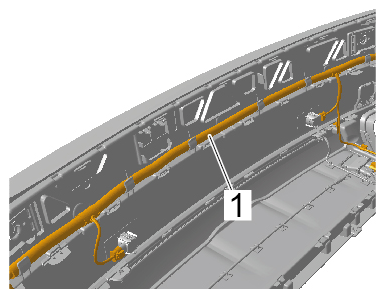

11. Remove wire harness for rear apron -1-  from its holders.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wire harness for rear apron

12. Remove wire harness for rear apron.
