Removing Wiring For Backrest (Front Seat)

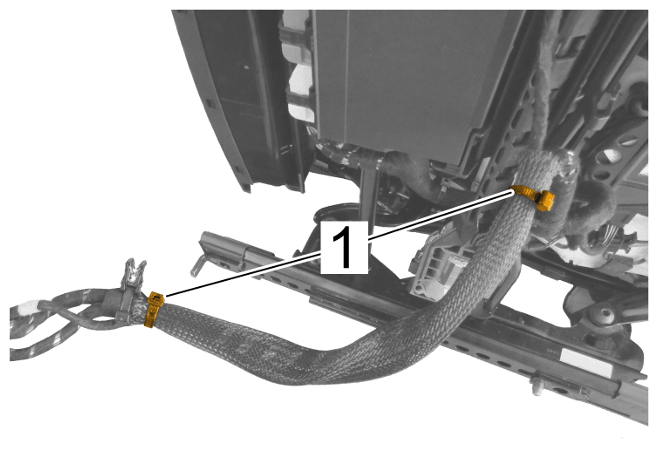

Cut tie-wrap -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tie-wrap

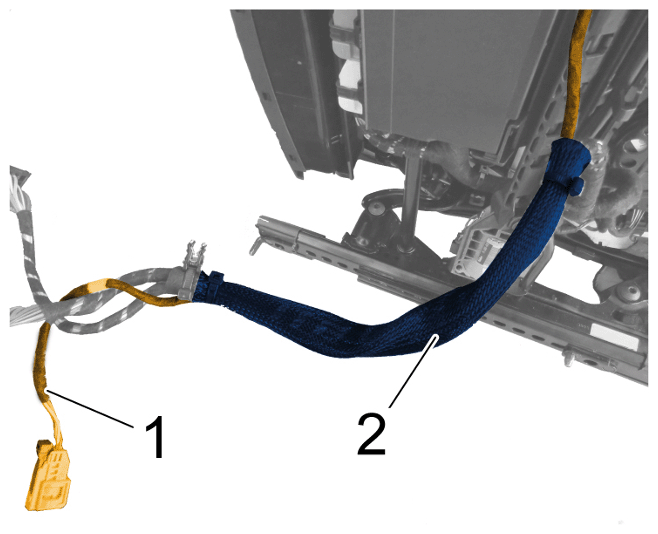

Guide line connection for side airbag -1- though the anti-chafing element -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line connection for side airbag

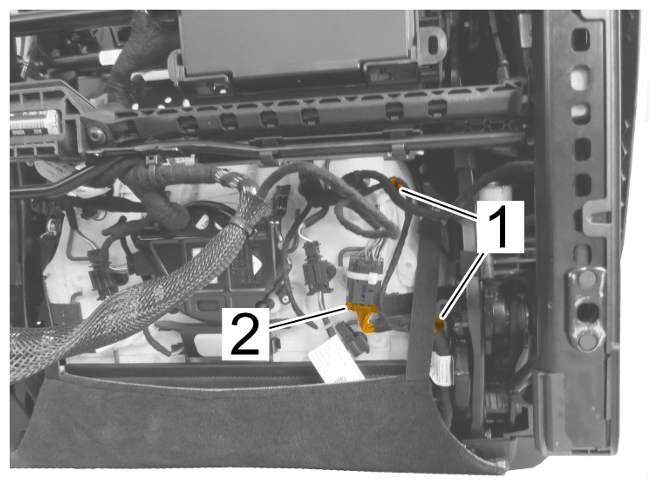

Disconnect electric wire harness at the seat frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness at seat frame
1. 3.1 Unclip clips -1- .
2. 3.2 Release and disconnect electric plug connection -2- .

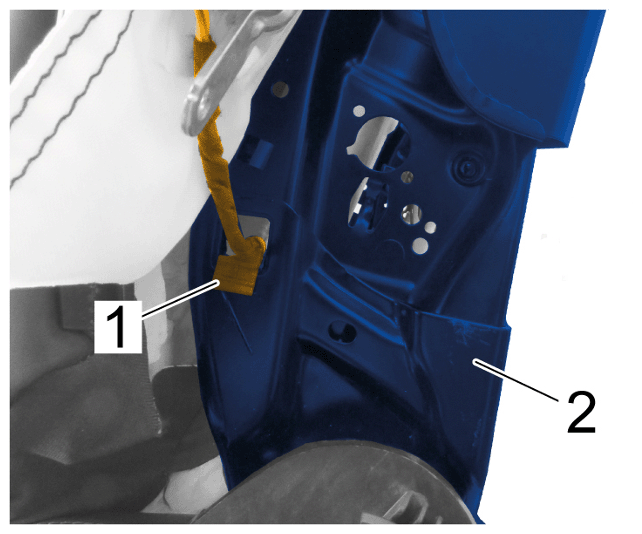

Unclip clips -1- and guide electric wire harness for side airbag through the backrest frame -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness for side airbag

Only for vehicles with front 14-way comfort seats or front 18-way sports seat (I-no. Q2J or Q1 J):

Disconnect electric wire harness at the lumbar support.

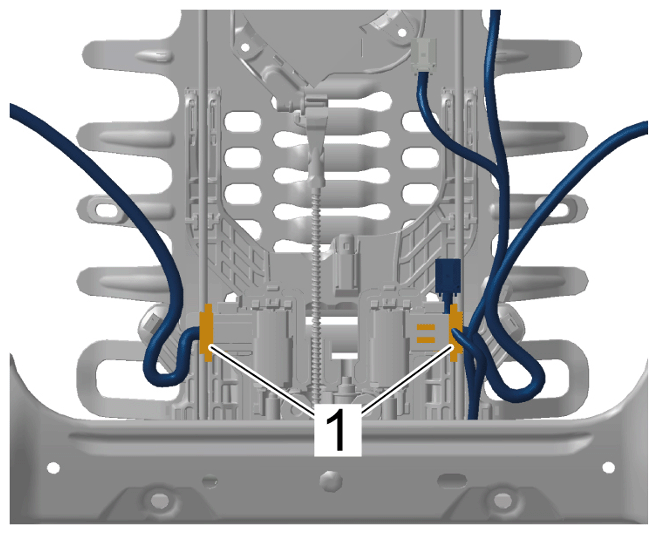

5.1 Release and unplug electric plug connections -1- .

G15261870

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

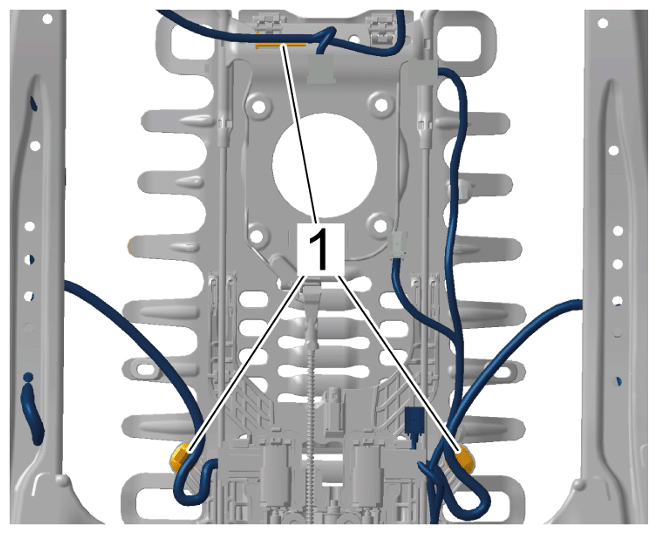

5.2 Unclip clips -1- .

G15261871

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips

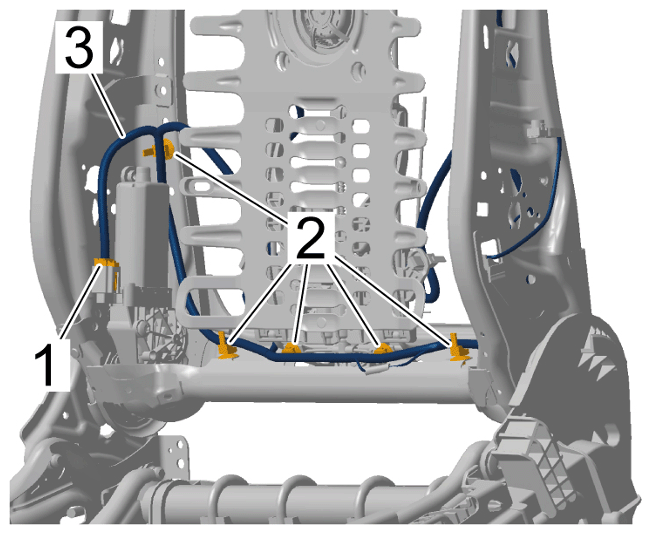

Disconnect electric wire harness -3- at the backrest frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness for backrest

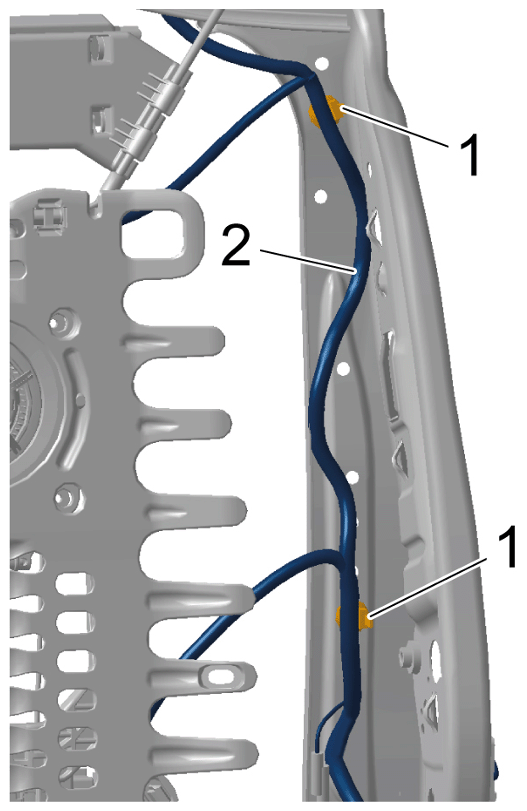

1. 6.1 Release and disconnect electric plug connection -1- .
2. 6.2 Unclip clips -2- .
Only for vehicles with front 14-way comfort seats or front 18-way sports seat (I-no. Q2J or Q1 J):
Unclip clips -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness for lumbar support

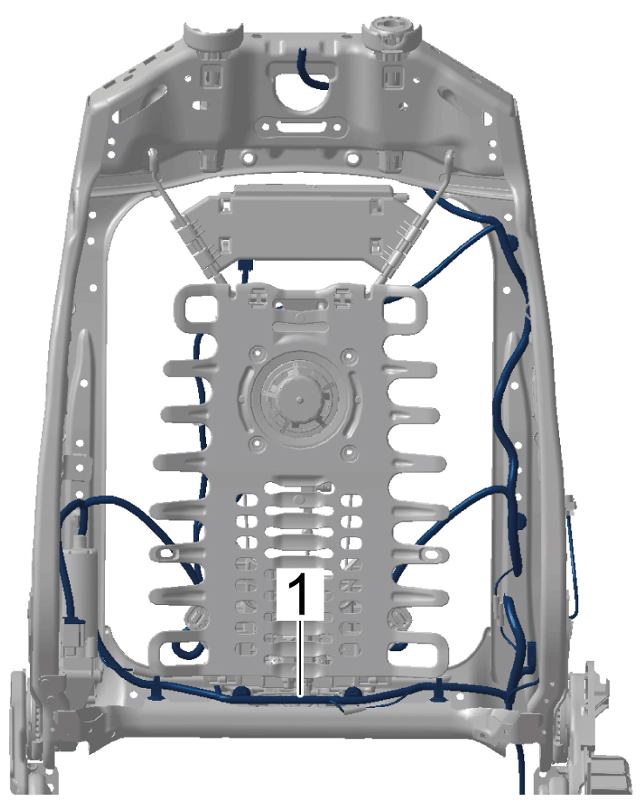

Remove electric wire harness for backrest -1- from the backrest frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness for backrest
