Technical Values

Location	Description	Type	Basic value
Fastening nut on ground strap for engine support	Item 1	Tightening torque	20 Nm (15 ftlb.)

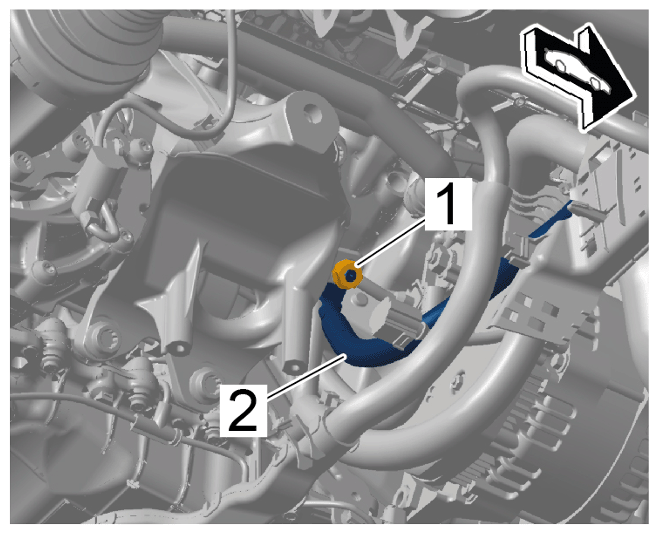

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nut on ground strap for engine support
Fastening screws for ground lines for left cylinder head	Item 1	Tightening torque	9 Nm (6.5 ftlb.)

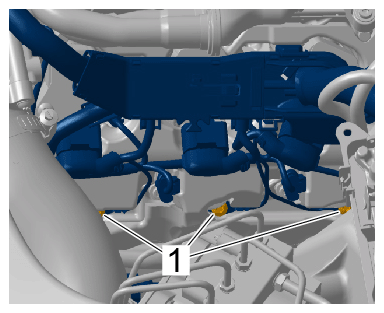

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws for ground lines for left cylinder head
Ground lines for right cylinder head	Item 1	Tightening torque	9 Nm (6.5 ftlb.)

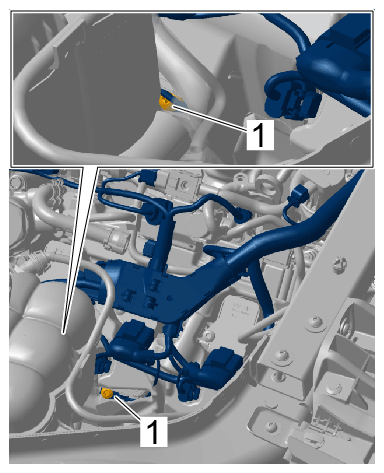

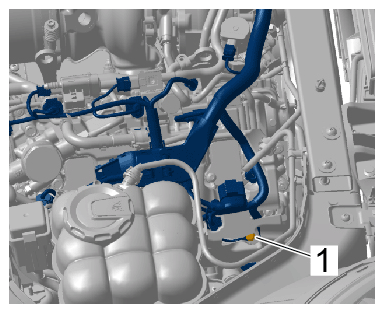

Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Ground line for right cylinder head Courtesy of PORSCHE CARS NORTH AMERICA, INC.PORSCHE CARS NORTH AMERICA, INC. Ground line for right cylinder head, bottom
Screws securing engine carrier to engine	M10 x 35	Tightening torque	55 Nm (40.6 ftlb.)
Screws support bearing on engine carrier	M6 x 22	Torque	10 Nm (7.4 ftlb.)
