Subsequent Work

> 137319 REMOVING AND INSTALLING BELT TENSIONER (AIR-CONDITIONING COMPRESSOR)

> 276019 REMOVING AND INSTALLING STARTER (V6 TURBO)

> 272219 REMOVING AND INSTALLING GENERATOR (V6 TURBO)

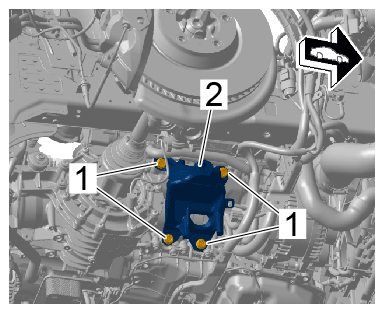

1. 4.1  Fit right engine support -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Right engine support

2. 4.2  Screw in fastening screws -1-  and tighten to > Tightening torque 55 Nm (40.6 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws

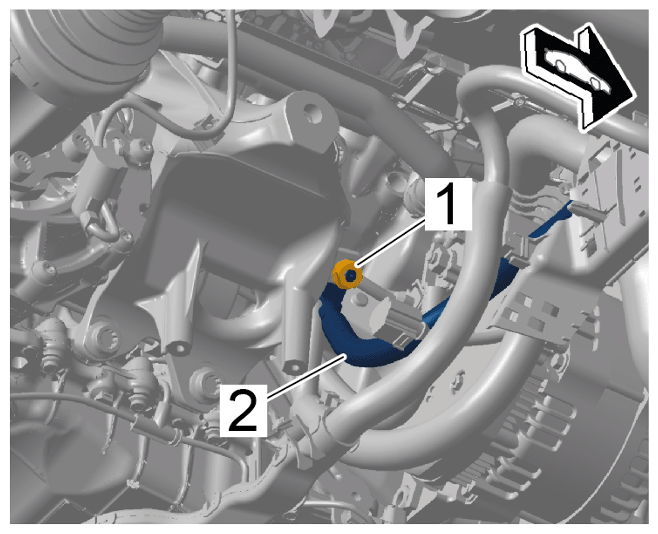

3. 4.3  Fit ground strap on right engine support, screw on fastening nut and tighten to > Tightening torque 20 Nm (15 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ground strap for engine support

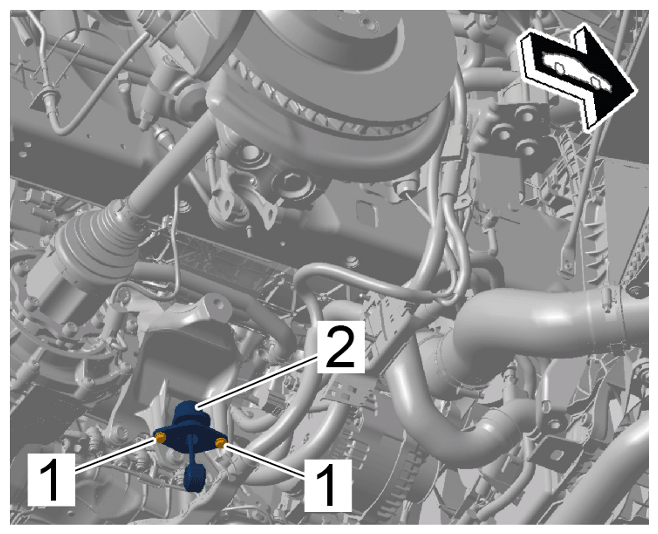

4. 4.4  Fit right supporting mount -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Right supporting mount

5. 4.5  Screw in fastening screws -1-  and tighten to > Torque 10 Nm (7.4 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws

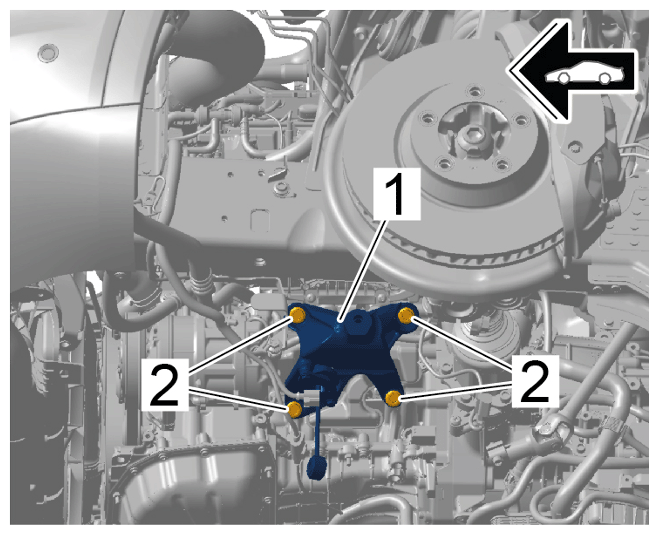

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Left engine support

1. 5.1  Fit left engine support -1-  with supporting mount.
2. 5.2  Screw in fastening screws -2-  and tighten to > Tightening torque 55 Nm (40.6 ftlb.)  .

> 400119 REMOVING AND INSTALLING FRONT AXLE

> 103719 REMOVING AND INSTALLING TORQUE SUPPORT

> 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING
