Removing Wire Harness For Engine (V6 Turbo)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

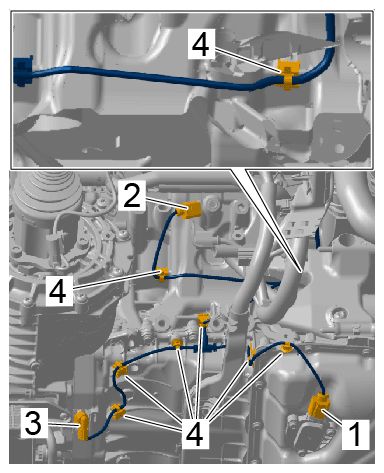

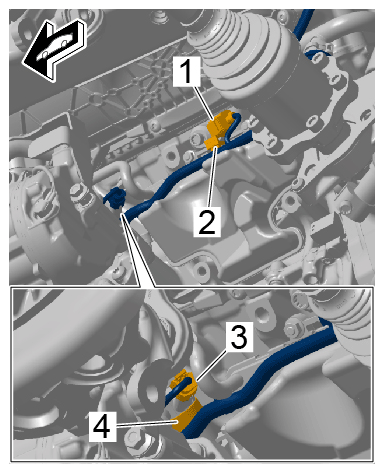

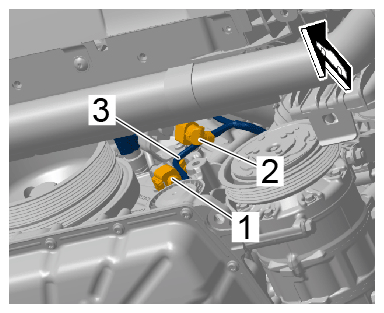

Section of line

1. 1.1  Release and disconnect electric plug connection on oil level sensor -1-  .
2. 1.2  Release and disconnect electric plug connection on right knock sensor -2-  .
3. 1.3  Release and disconnect electric plug connection on engine speed sender -3-  .
4. 1.4  Loosen fixing clips -4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

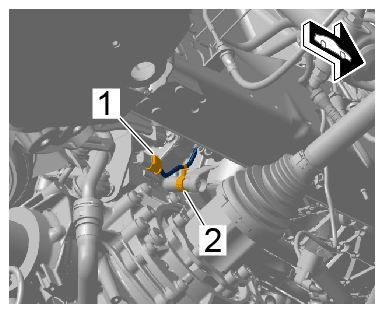

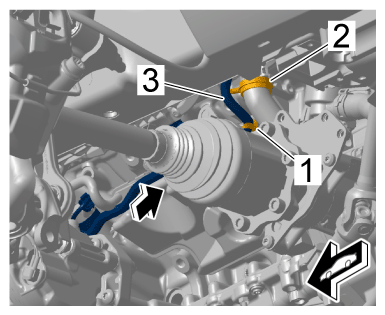

Fixing clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for water pump

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

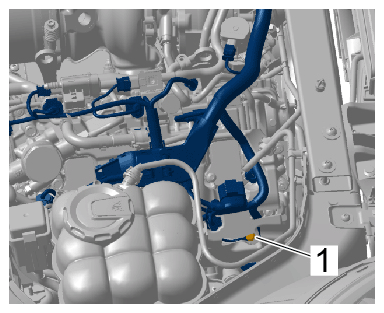

Omega clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for temperature sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection on vacuum valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fixing clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for left knock sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fixing clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for oil pressure control valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Omega clip for oil pressure control valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fixing clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Omega clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Section of line

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

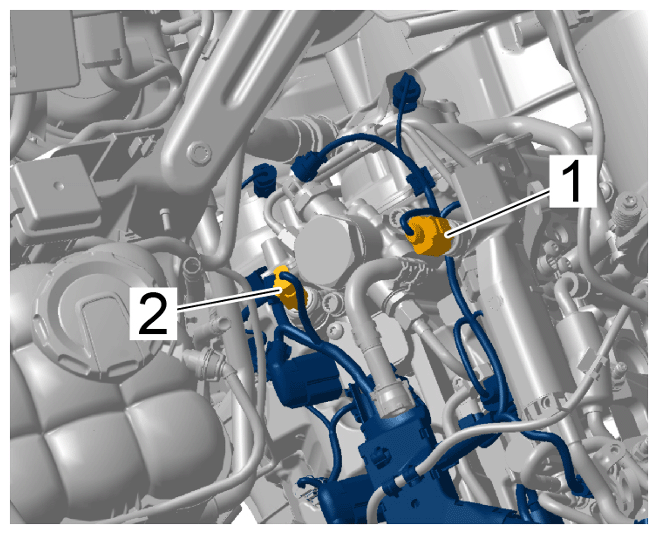

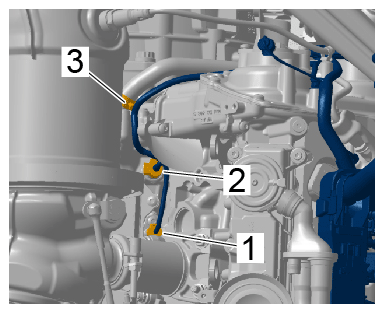

Electric plug connection on exhaust camshaft adjuster

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection on intake camshaft adjuster

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

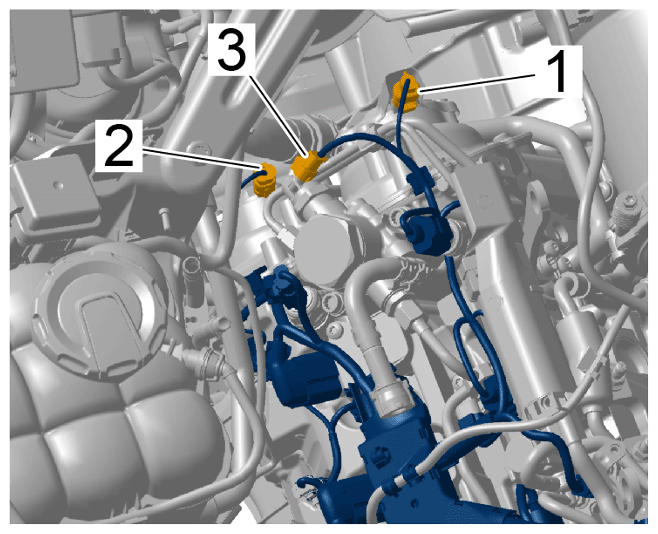

Electric plug connection for high-pressure pump

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for fuel pipe pressure sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for fuel pressure sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat protection mat

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

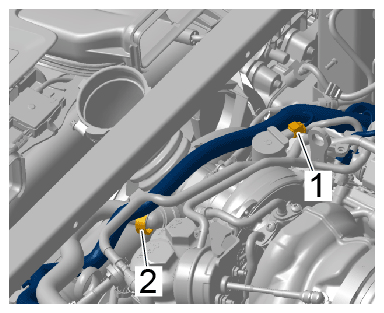

Electric plug connection for active carbon filter valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for active carbon filter lock

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fixing clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for inner V temperature sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for turbocharger vacuum valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

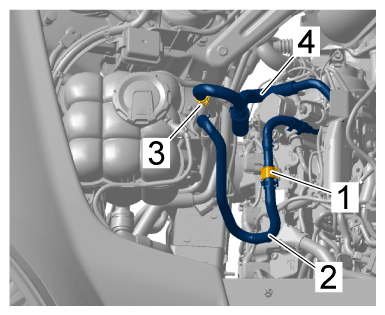

Fuel line

1. 26.1  Release and disconnect coupling -1-  from fuel supply line -2-  .
2. 26.2  Loosen spring band clamp -3-  from fuel return line -4-  .
3. 26.3  Lay fuel lines aside -2 and 4-  .

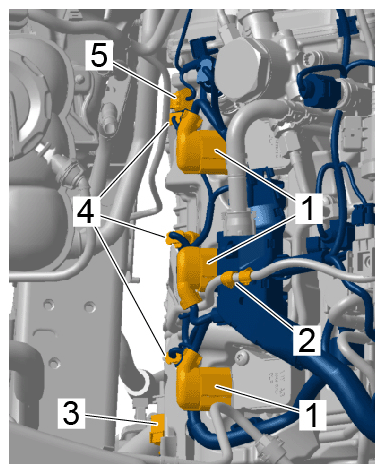

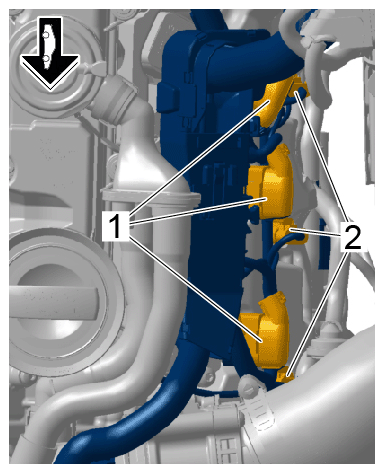

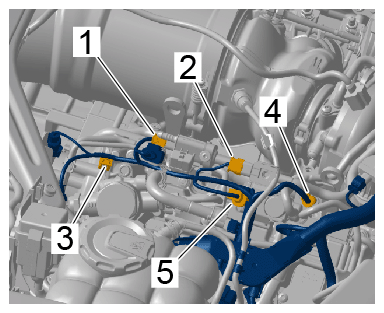

1. 27.1  Release and disconnect electric plug connections on ignition coils -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections for ignition coils

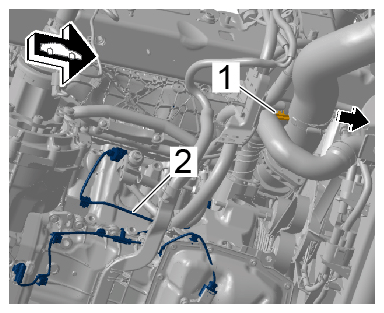

2. 27.2  Loosen electric line for oxygen sensor -2-  from the cable duct.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric line for oxygen sensor

3. 27.3  Release and disconnect electric plug connection for oxygen sensor -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for oxygen sensor

4. 27.4  Release and disconnect electric plug connections for camshaft actuators -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections for camshaft actuators

5. 27.5  Release and disconnect electric plug connection on camshaft pulse sender -5-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for camshaft pulse sender

6. 27.6  Unscrew fastening screws for ground lines -1-  and disconnect ground lines from cylinder head.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

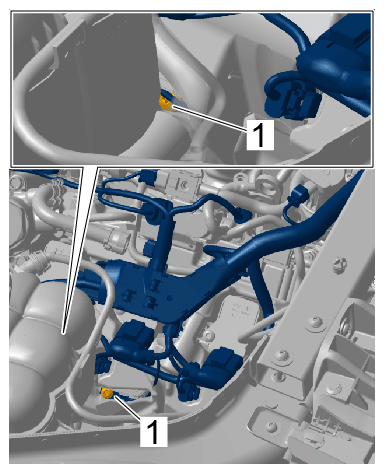

   Ground lines on cylinder head

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ground line on cylinder head

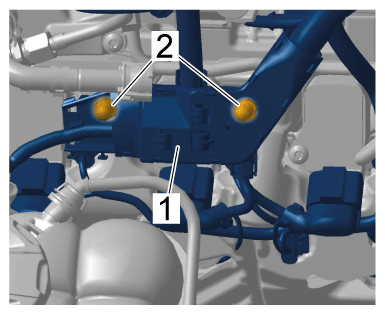

7. 27.7  Pull cable duct -1-  off ball studs -2-  and set it aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ball studs

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections for injectors for cylinders 1 to 3

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

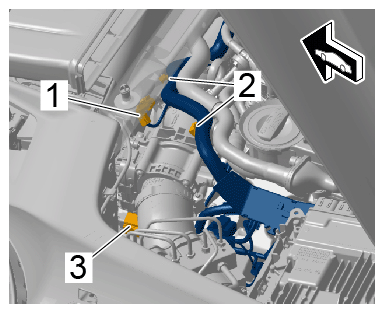

Electric plug connection for exhaust turbocharger

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Omega clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for intake air sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

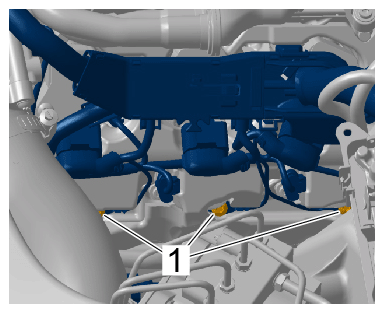

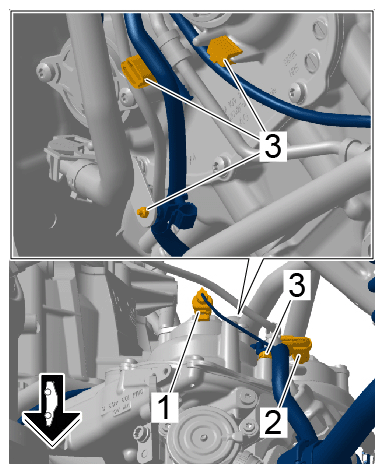

Fixing clips

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for throttle valve

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for oil temperature sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for oil pressure switch

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Omega clip

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for exhaust camshaft controller

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for intake camshaft controller

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

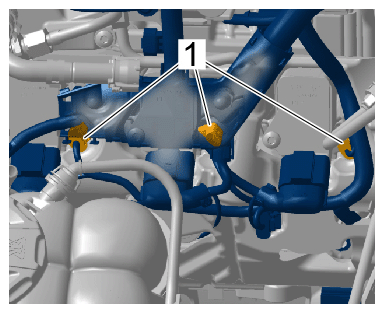

Fixing clips

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections for ignition coils

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections for camshaft actuators

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws for ground line

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for pulse sender

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

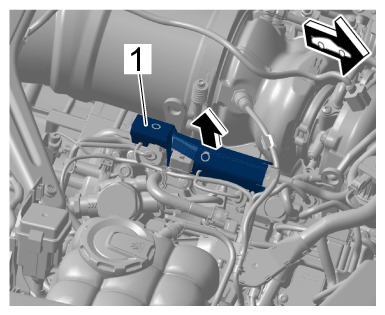

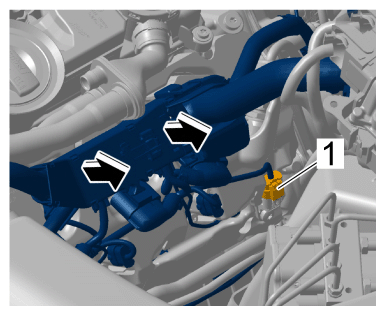

Cable duct

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

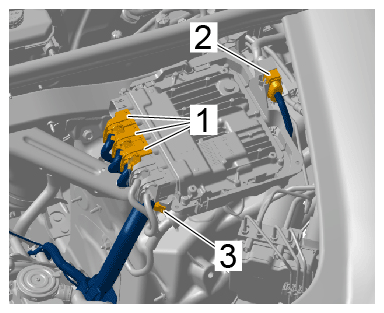

Electric plug connections on control unit

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for main wire harness

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fixing clip
