Preliminary Work

> 242519 REMOVING AND INSTALLING AIR CLEANER HOUSING

> 103719 REMOVING AND INSTALLING TORQUE SUPPORT

Information

The engine must be supported.

> 400119 REMOVE AND INSTALL FRONT AXLE

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

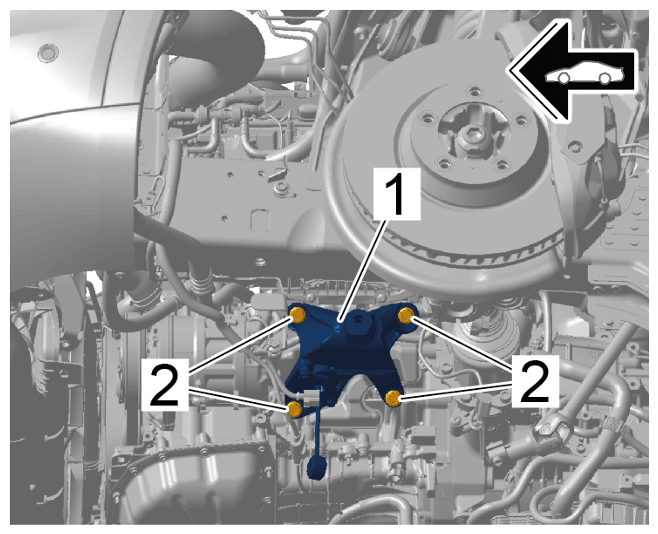

Left engine support

1. 4.1  Unscrew fastening screws -2-
2. 4.2  Remove left engine support -1-  with supporting mount.

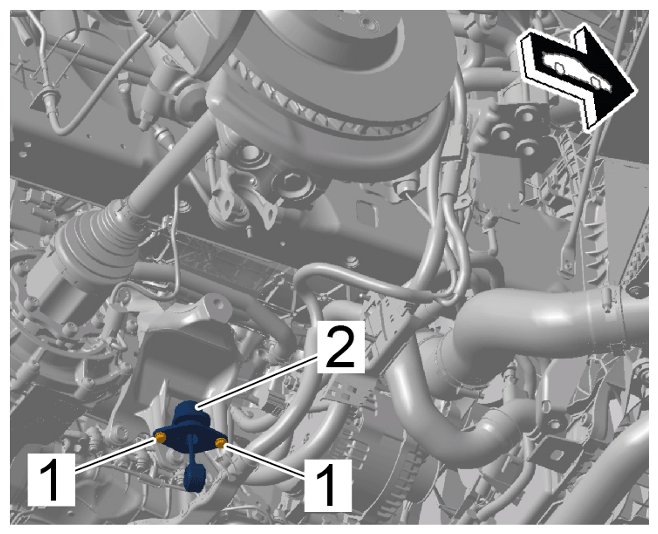

1. 5.1  Unscrew fastening screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Right supporting mount

2. 5.2  Remove supporting mount -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Right supporting mount

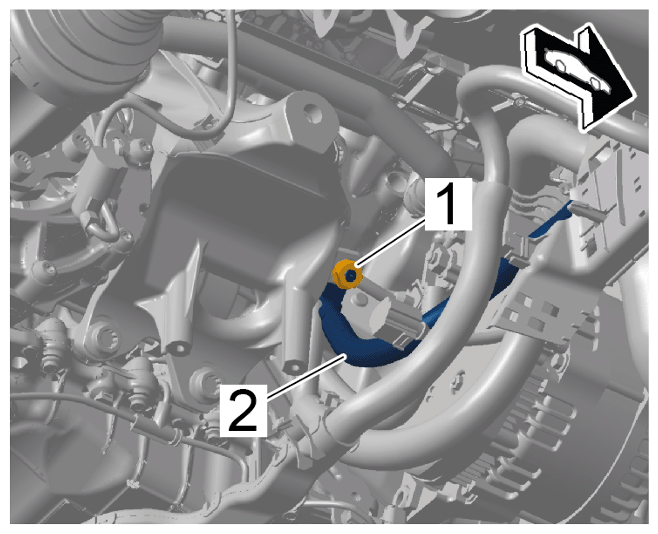

3. 5.3  Unscrew nut -1-  and remove ground strap -2-  from right engine support.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ground strap for engine support

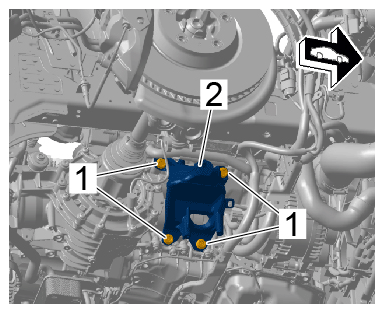

4. 5.4  Unscrew fastening screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Right engine support

5. 5.5  Remove right engine support -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Right engine support
