Removing Disconnection Element

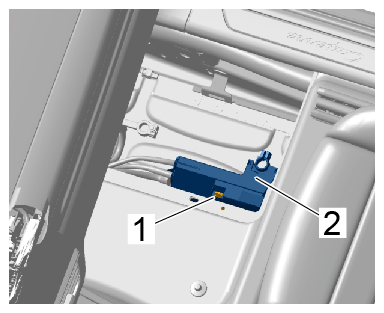

Press locking lug -1- and open cover on positive terminal -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on positive terminal

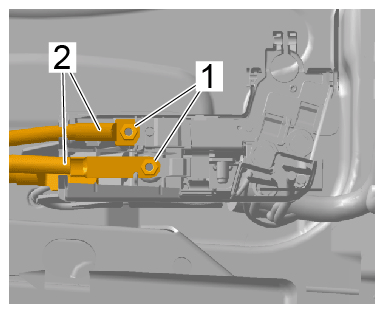

Unscrew fastening nuts -1- and remove lines -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lines

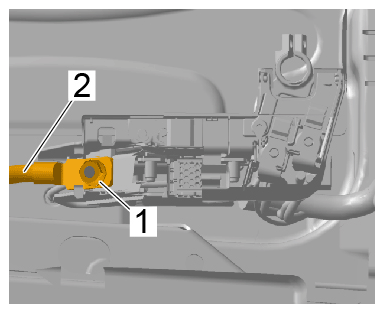

Unscrew fastening nut -1- and remove line -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nut
Screw off fastening nuts 1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts

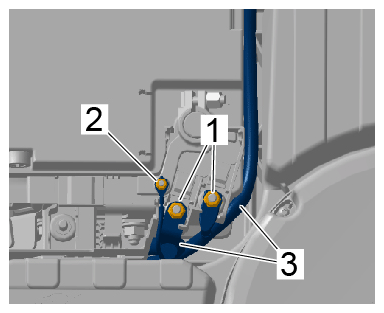

Unscrew fastening screw -2- , remove lines -3- and set them aside.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lines

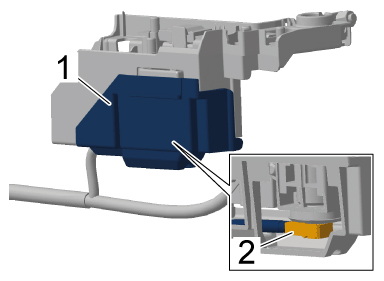

Unclip cover -1- and release and disconnect electric plug connection -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection
Remove disconnection element.
