Technical Values

Location	Description	Type	Basic value

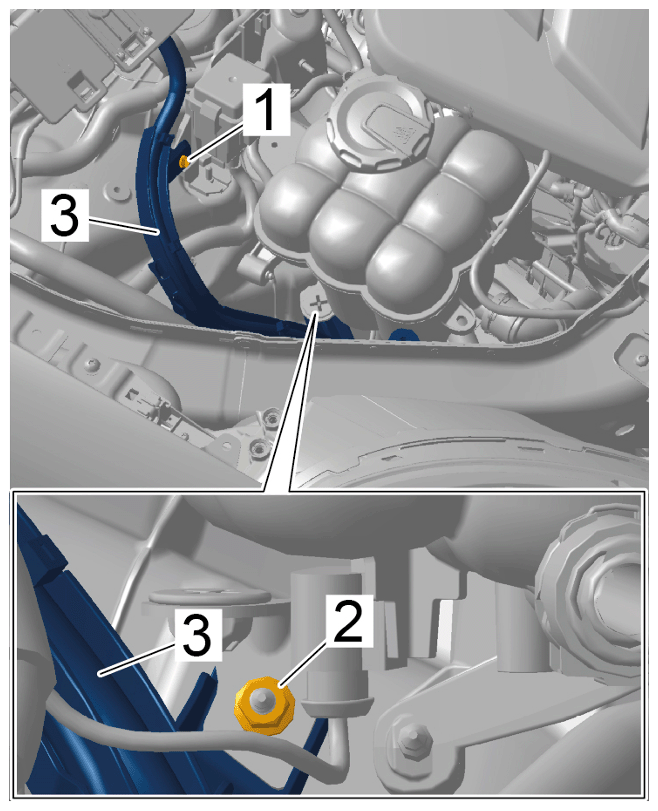

Line bracket fastening points	Item 2	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

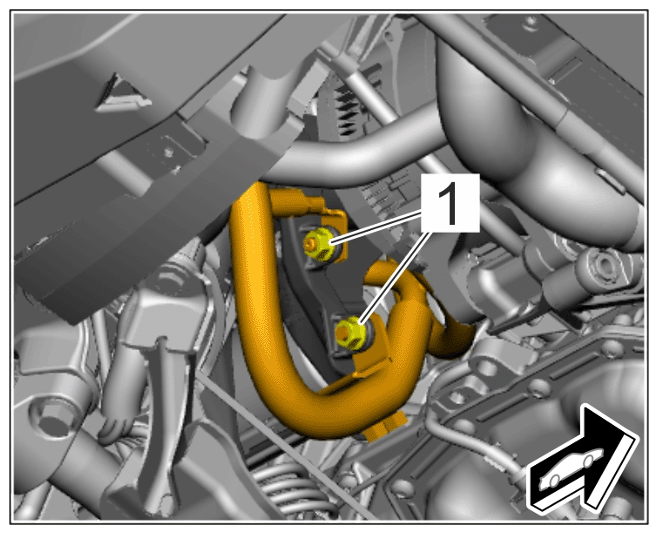

Fastening screw for line bracket	Item 1	Tightening torque	4 Nm (3 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

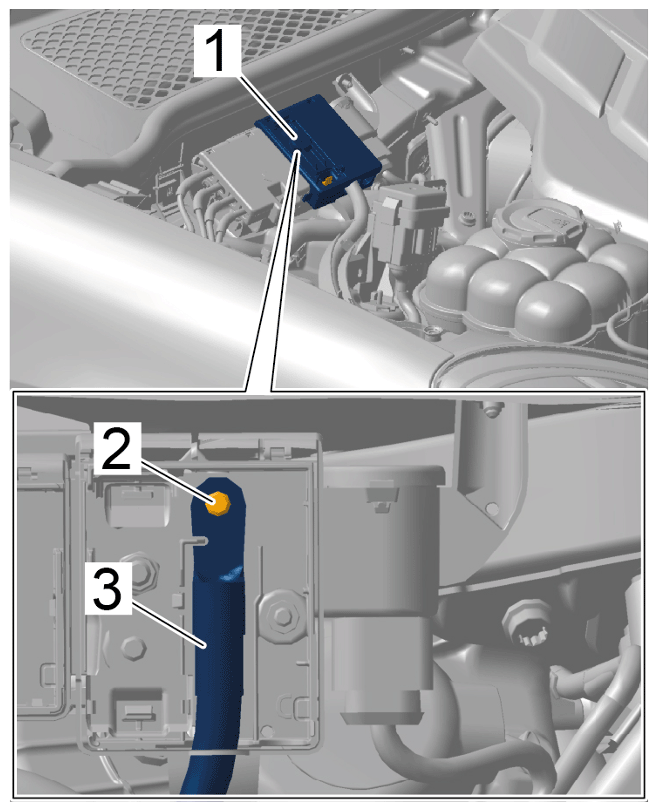

Fastening nut on external power connection	Item 2	Tightening torque	20 Nm (14.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. External power connection cover

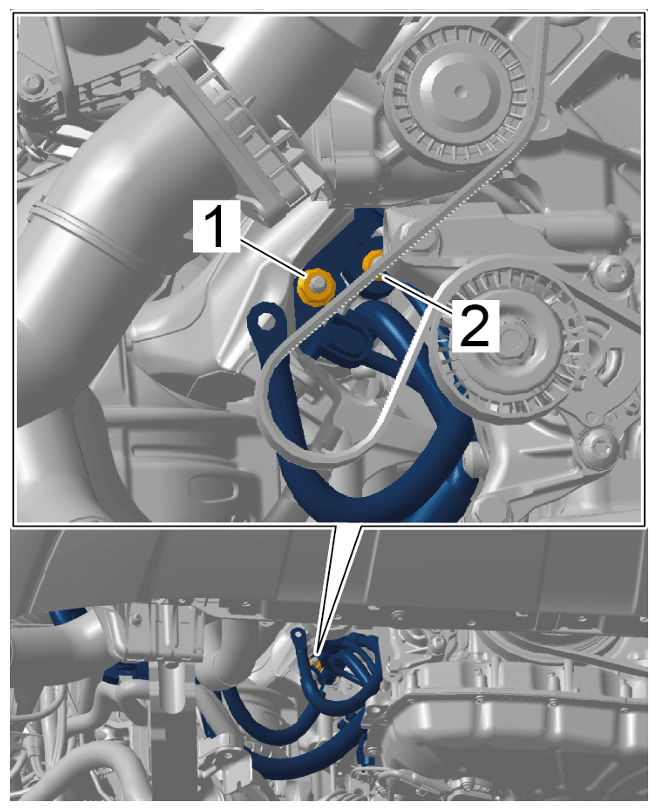

Fastening nuts securing wire harness to starter	Items 1 and 2	Tightening torque	20 Nm (14.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
Ground line on engine carrier	Item 1	Tightening torque	20 Nm (14.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground line on engine carrier
