Removing Battery-Starter Wire Harness (From External Power Connection To Starter)

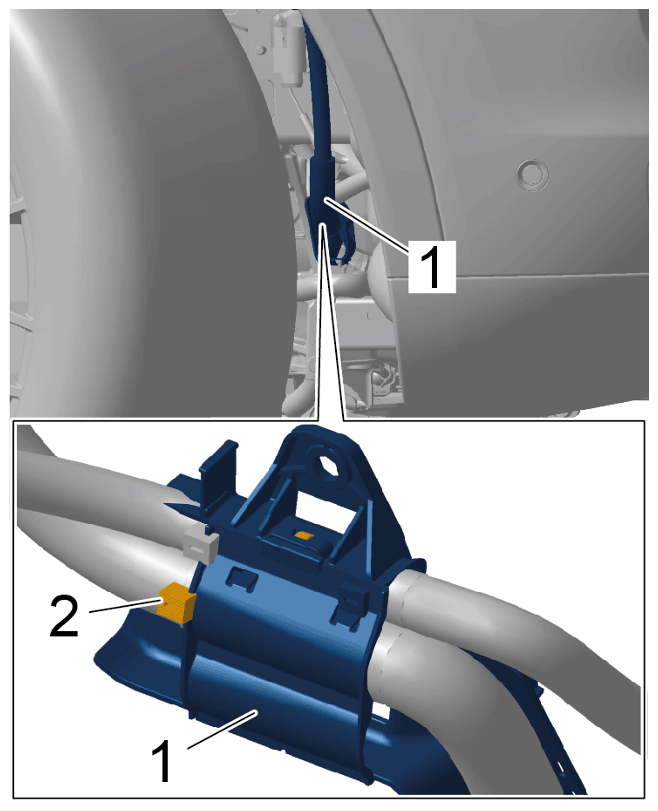

Unclip line bracket -1- from wire harness from battery to starter (from external power connection to starter) -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front wire harness

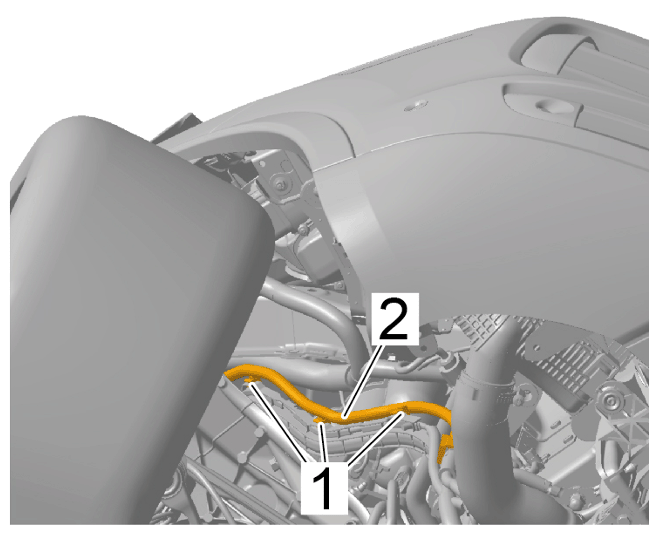

Release and disconnect electric plug connection -1- and unclip line brackets -2 and 3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear wire harness

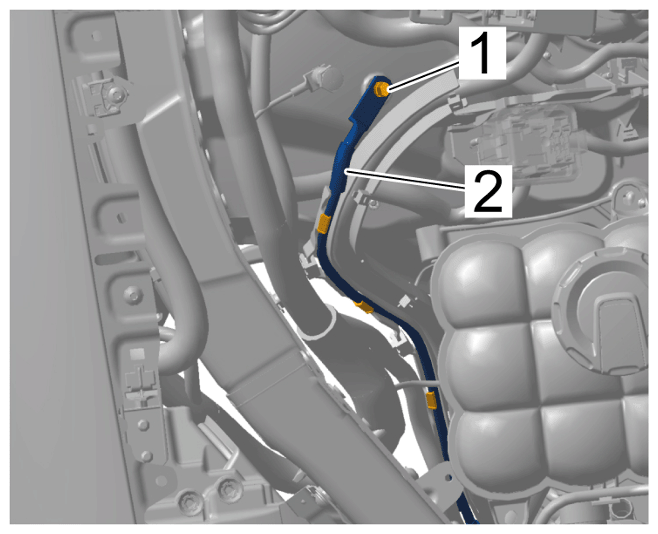

Unscrew fastening screw -1- , remove ground line -2- and guide it out of the holder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ground line

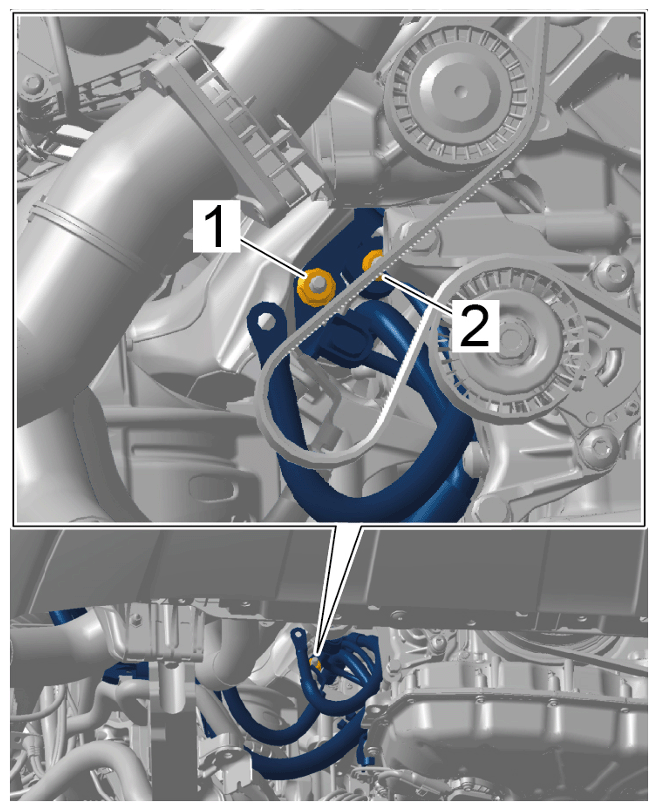

Unscrew fastening nuts -1 and 2- and remove wire harness from battery to starter (section on external power connection to starter) from the starter.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nuts

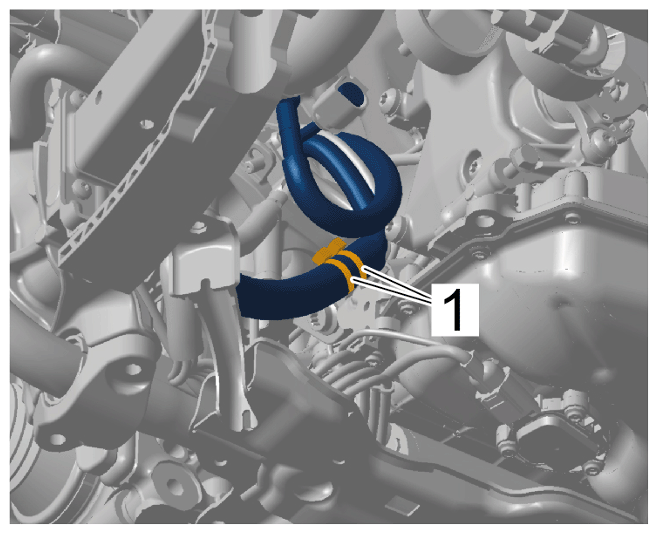

Cut tie-wrap -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tie-wrap

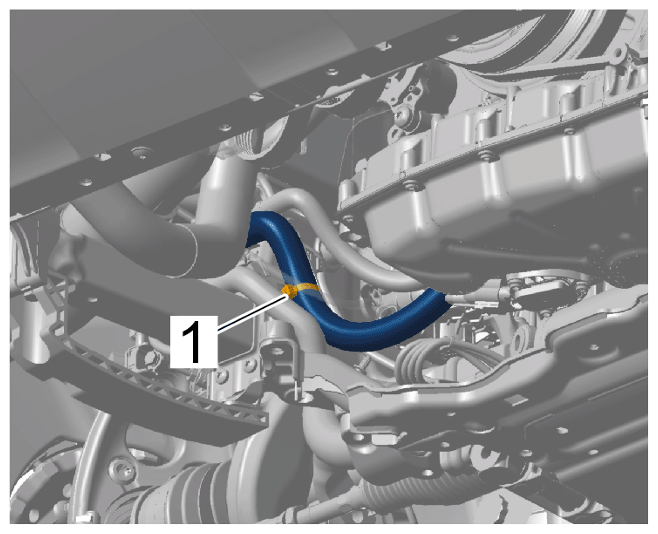

Open line bracket -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line bracket

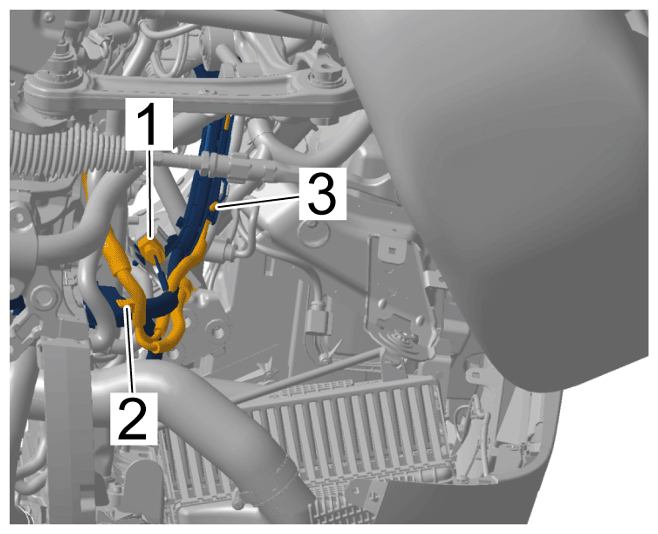

Open line bracket -1- cut tie-wrap -2- and guide wire harness from battery to starter (from external power connection to starter) towards the wheel housing.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tie-wrap

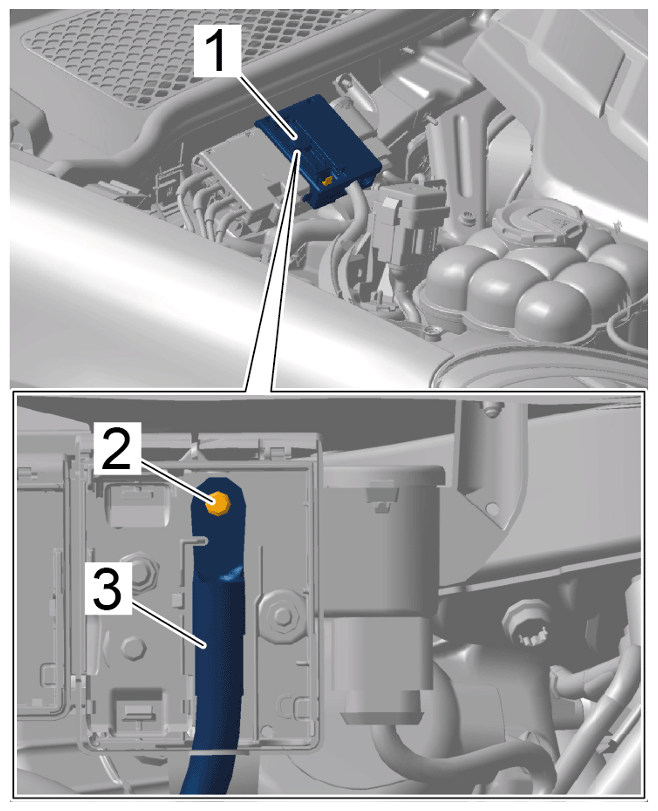

Open cover on external power connection -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on external power connection
Unscrew fastening nut -2- and remove wide harness from battery to starter (from external power connection to starter) -3- from external power connection.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening nut
Unscrew fastening screw -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw

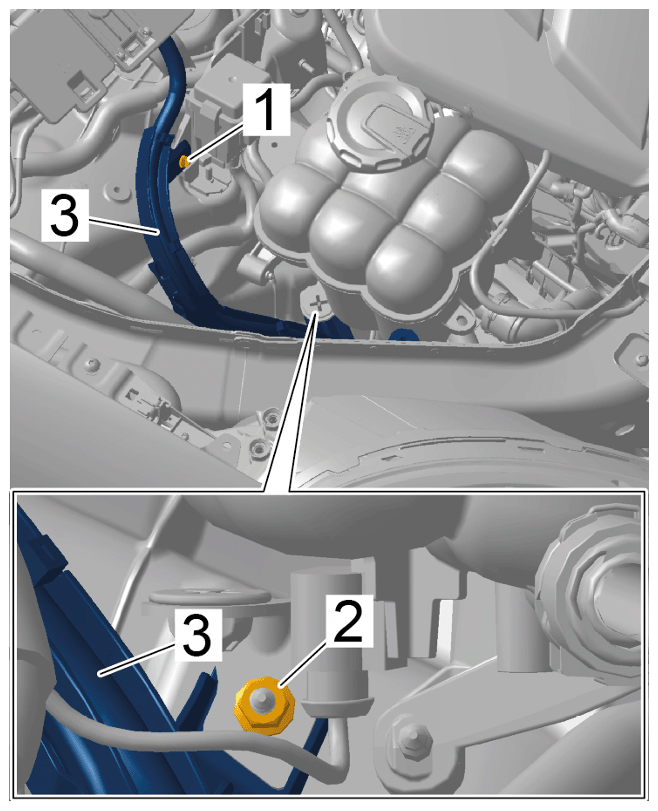

Unscrew fastening nut -2- and remove wire harness from battery to starter (from external power connection to starter) -3- by pulling it upwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness from battery to starter
