Removing Wire Harness For Rear-View Mirror

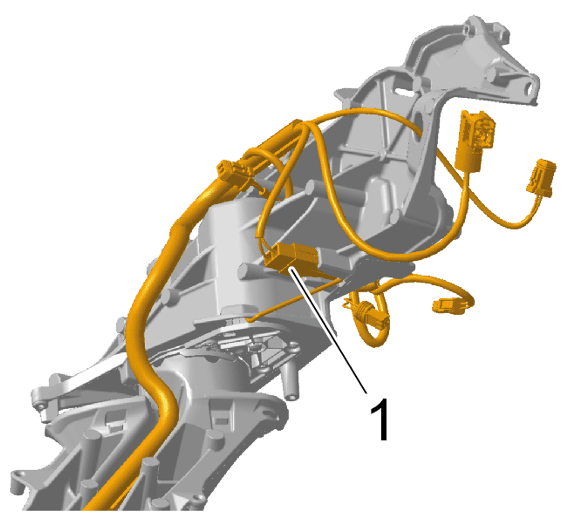

  1. Release and disconnect electric plug connection -1-  .
    G15261764Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

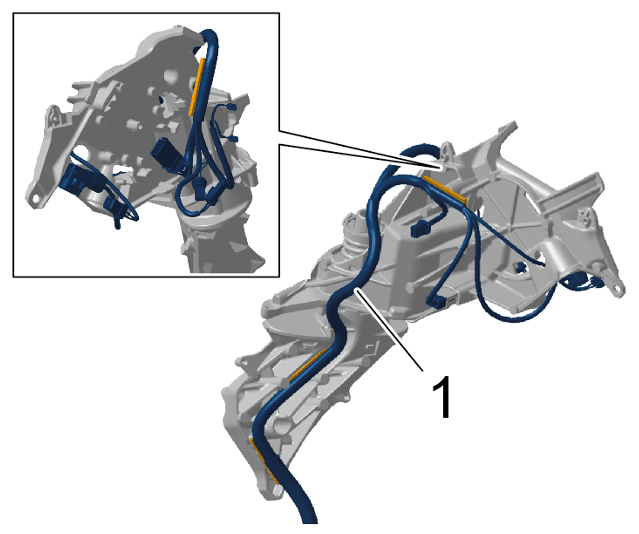

  2. Unclip electric wire harness -1-  from mirror frame and remove it.
    G15261765Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness
