Removing Wire Harness For Front Door (BODYSHELL)

Information

The number of electric plug connections will vary depending on equipment.

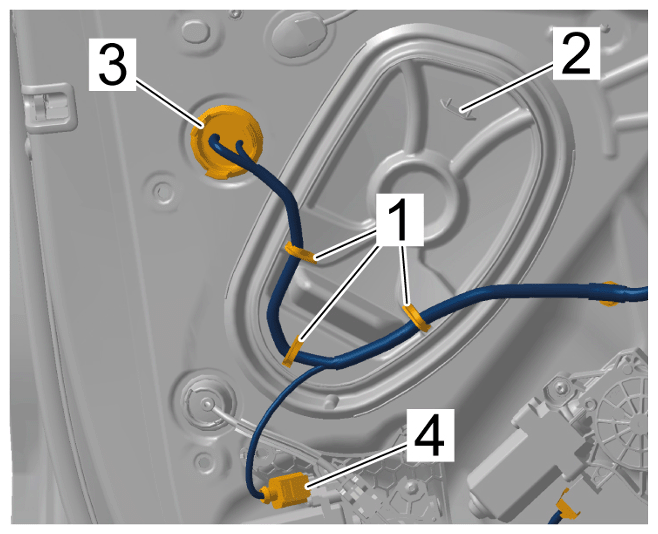

1. Disengage wire harness for front door (bodyshell) -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wire harness for front door (bodyshell)

2. Remove cover -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover

3. Press sleeve -3-  through the bodyshell.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sleeve

4. Release and unplug electric plug connection -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

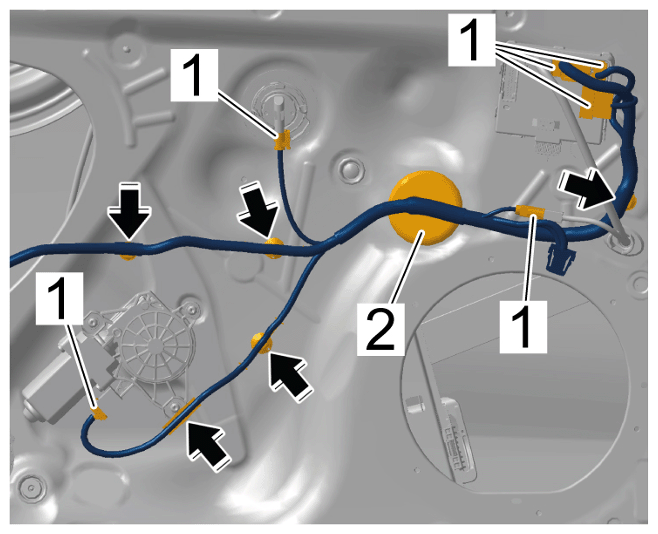

5. Unclip wire harness for front door (bodyshell) -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wire harness for front door (bodyshell)

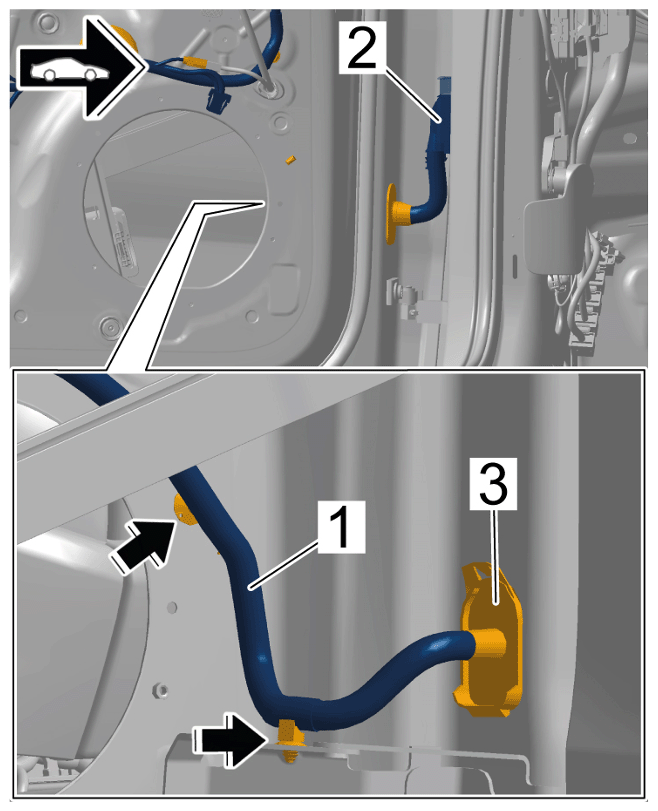

6. Release and unplug electric plug connections -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

7. Release and unplug electric plug connections -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections

8. Unclip wire harness for front door (bodyshell) -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wire harness for front door (bodyshell)

9. Press sleeve -2-  through the bodyshell.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sleeve

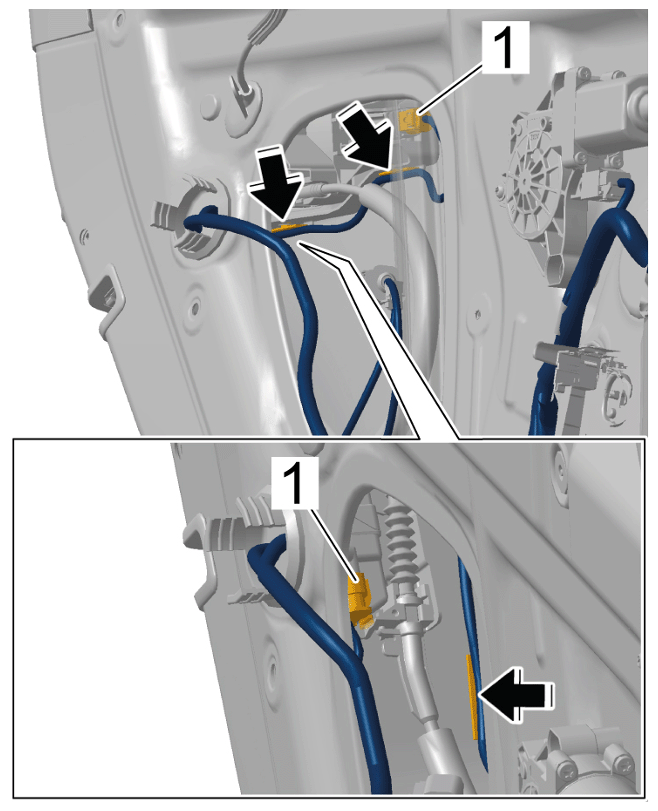

10. Unclip wire harness for front door (bought II) -1-Arrows-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wire harness for front door (bodyshell)

11. Unclip grommet -3-  using a suitable tool.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sleeve

12. Release and unplug electric plug connection -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

13. Remove wire harness for front door (bodyshell).
