Technical Values

Location	Description	Type	Basic value
Ground points on roof cross member	Item 1	Tightening torque	9 Nm (6.5 ftlb.)

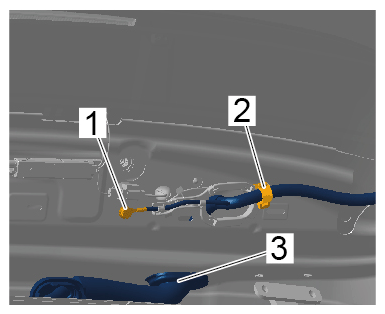

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground line
Ground point on tailgate, right	Item 1	Tightening torque	9 Nm (6.5 ftlb.)

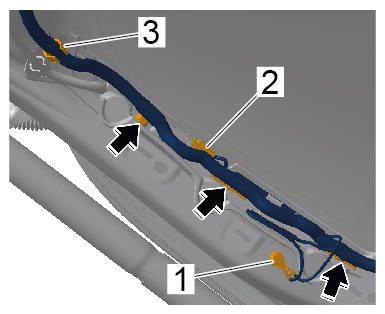

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground point on rear lid
Ground point on tailgate, left	Item 1	Tightening torque	9 Nm (6.5 ftlb.)

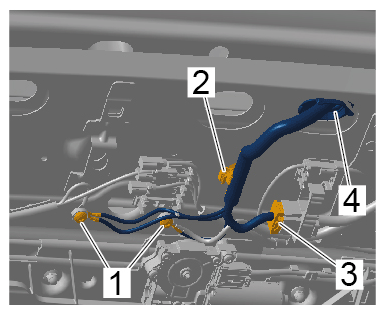

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground connection
Ground points for main wire harness on tailgate, top	Item 3	Tightening torque	9 Nm (6.5 ftlb.)

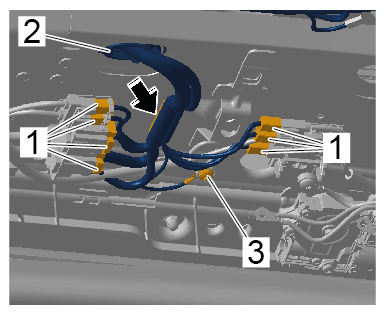

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric plug connection for main wire harness
