Removing Wire Harness For Rear Lid At The Right

Information

The number of electric plug connections will vary depending on equipment.

Information

• Some repairs are shown only on one side of the vehicle.
• The steps are identical for the opposite side of the vehicle.

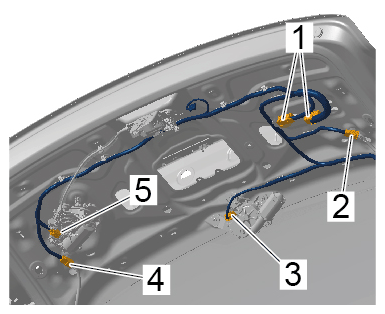

1. Release and disconnect electric plug connection -5-  for closing aid.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for closing aid

2. Release and disconnect electric plug connection -2-  for right actuating cylinder.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for right actuating cylinder

3. Release and disconnect electric plug connection -3-  for wiper motor.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for wiper motor

4. Release and disconnect electric plug connections -1-  for tailgate control unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections for tailgate control unit

5. Release and disconnect electric plug connection -4-  for left actuating cylinder.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for left actuating cylinder

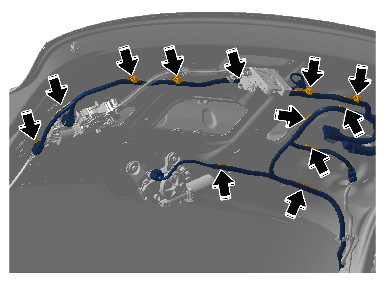

6. Unclip electric wire harness from rear lid -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric wire harness for rear lid

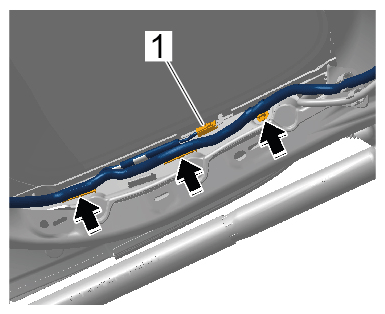

7. Release and disconnect electric plug connection -1-  for rear window heading.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for rear window heating

8. Disengage electric wire harness and unclip it from the rear lid -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric wire harness

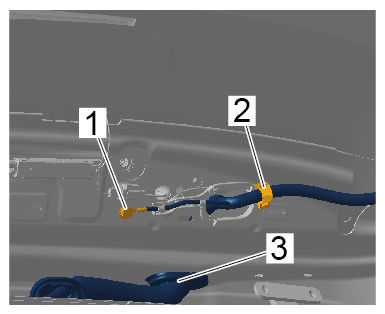

9. Unscrew fastening screw -1-  and remove ground line.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ground point on rear lid

10. Open line bracket -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line bracket

11. Carefully press rubber sleeve -3-  on the rear lid out of the holder.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rubber sleeve

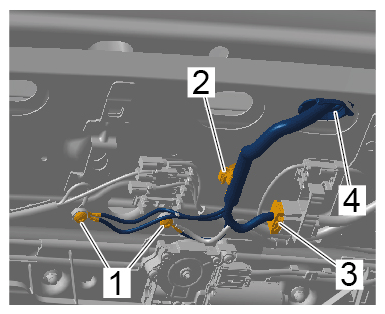

12. Unscrew fastening screws -1-  and remove ground line.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Ground straps

13. Carefully press rubber sleeve -4-  on the roof inwards out of the holder.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rubber sleeve

14. Release and unplug electric plug connection -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

15. Unclip electric wire harness for rear lid at the right from holder -2-  and remove it.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness
