Removing Wire Harness For Rear Lid At The Left

Information

The number of electric plug connections will vary depending on equipment.

Information

• Some repairs are shown only on one side of the vehicle.
• The steps are identical for the opposite side of the vehicle.

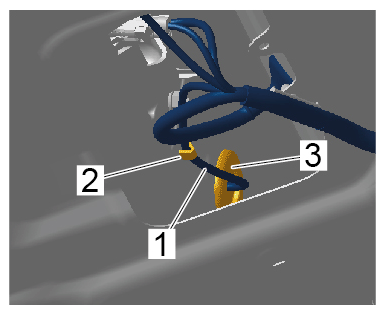

1. Press rubber sleeve -1-  inwards and guide section of line -2-  through towards the inside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rubber sleeve

2. Press rubber sleeve -3-  for number plate light inwards and guide section of line -1-  through towards the inside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rubber sleeve for number plate light

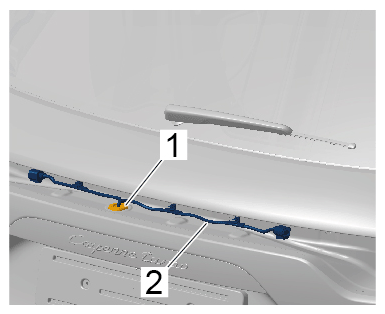

3. Disengage section of line -1-  from bracket -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bracket

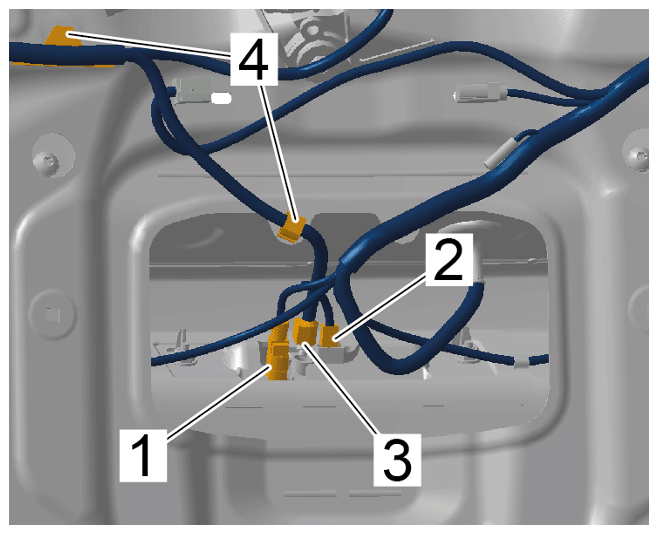

4. Release and disconnect electric plug connection -1-  for reversing camera and electric plug connection -2-  for lid switch.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for reversing camera

5. Release and pull off hose connection -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Washer fluid line

6. Unclip retaining clips -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Retaining clips

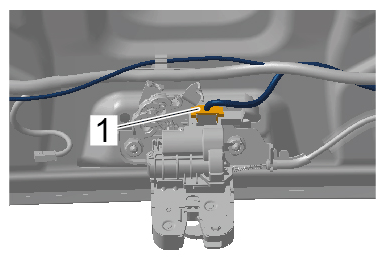

7. Release and disconnect electric plug connection -1-  on upper part of rear, lid lock.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for upper part of lid lock

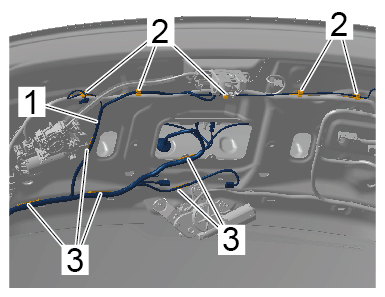

8. Disengage section of line -1-  from brackets -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Bracket for section of line

9. Unclip section of line -1-  from the rear lid -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Section of line for rear lid

10. Unscrew fastening screw -1-  and remove ground line.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Ground line

11. Release and disconnect electric plug connection -2-  for rear window heating.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for rear window heating, left

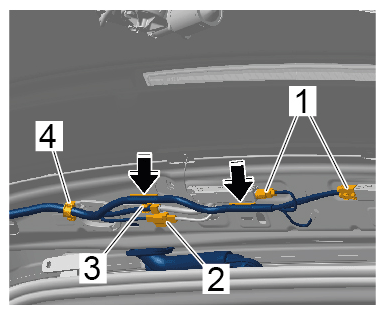

12. Unclip wire harness from holder -3-  and rear lid -Arrows-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wire harness for lid

13. Release and disconnect electric plug connections -1-  for antenna amplifier.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for antenna amplifier

14. Release and disconnect electric plug connection -2-  for additional brake light.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for additional brake light

15. Pull off hose connection -2-  for rear washer nozzle.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hose connections

16. Open line bracket -4-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line bracket

17. Carefully press rubber sleeve -1-  on the rear lid out of the holder.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rubber sleeve

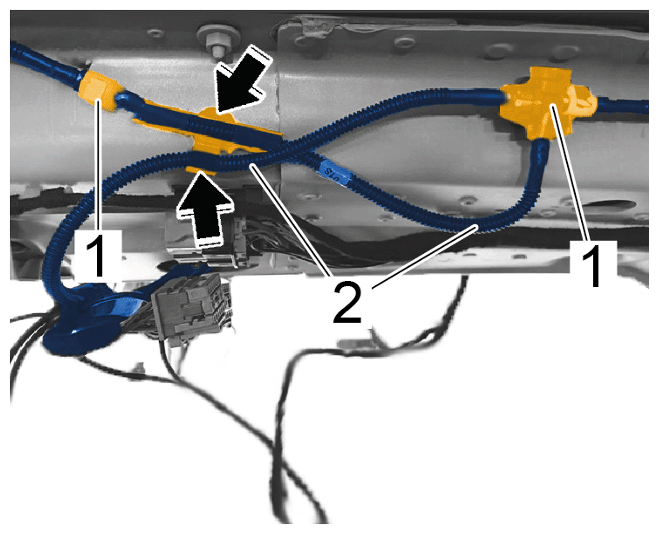

18. Pull off hose connections for rear washer nozzle -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hose connection for rear washer nozzle

19. Unclip wire harness -2-  from holder -Arrows-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hose connection for rear washer nozzle

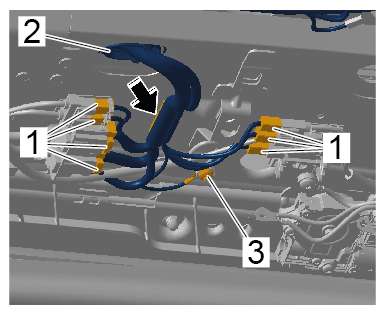

20. Release and disconnect electric plug connections -1-  at connection point for main wire harness at the center.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections for main wire harness

21. Unscrew fastening screw -3-  and remove ground line.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Ground line

22. Carefully press rubber sleeve -2-  on the roof inwards out of the holder.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rubber sleeve on roof

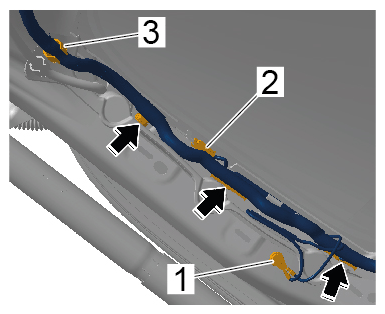

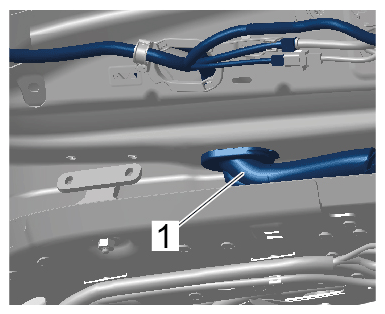

23. Unclip wire harness for rear lid at the left -Arrow-  and remove it.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wire harness in rear-wall lining
