Removing Wire Harness For Trailer Hitch

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. → Switch off electrical loads before disconnecting or removing them.

Information

Replace screws. Do not modify or lubricate micro-self-locking screws.

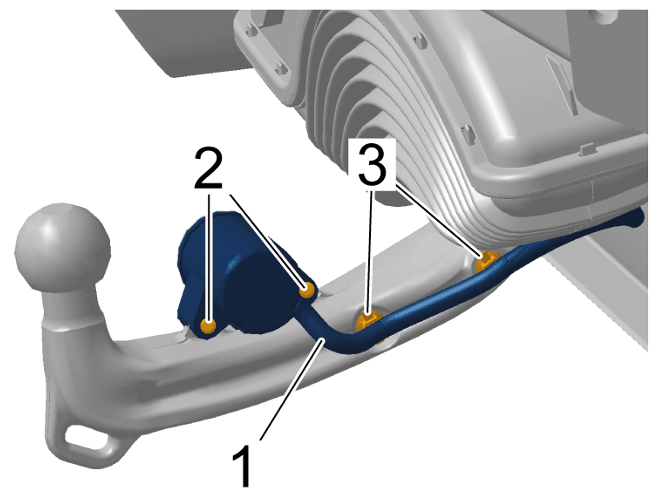

1. Unscrew fastening screws -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws

2. Unclip wire harness for trailer hitch -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wire harness for trailer hitch

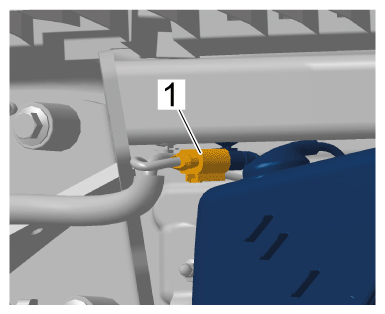

3. Release and disconnect electric plug connection -1-  from trailer hitch motor.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

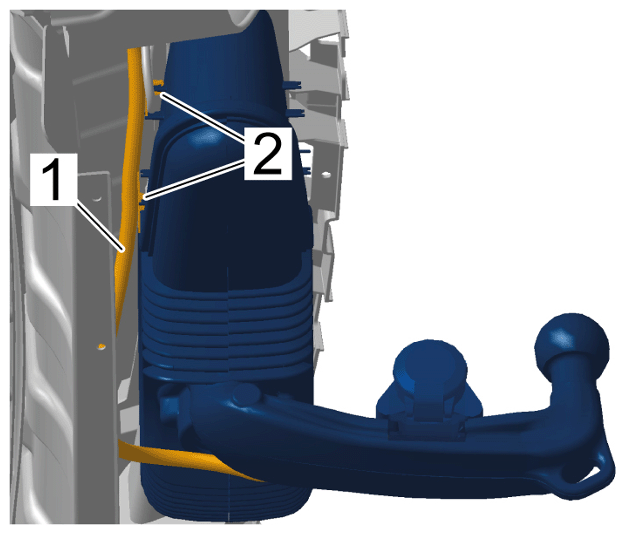

4. Unclip wire harness for trailer hitch -1- -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wire harness for trailer hitch

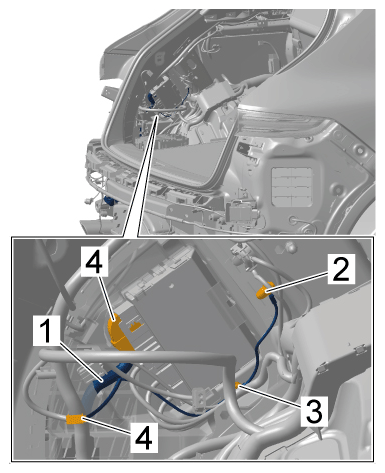

5. Loosen inner wire harness for trailer hitch

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Inner wire harness for trailer hitch

   1. 5.1  Screw off fastening nut -2-  for ground line.
   2. 5.2  Clip wire harness for trailer hitch -1-  out of retaining clip -3-  .
   3. 5.3  Release and unplug electric plug connections -4-  .
6. Press grommet -1-  out of the body and guide wire harness for trailer hitch -2-  out of the body.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sleeve

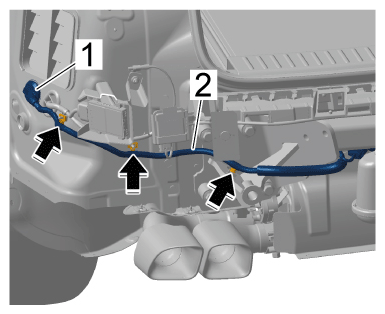

7. Unclip wire harness for trailer hitch -1- - ARROWS-  and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Wire harness for trailer hitch
