Removing Front Wire Harness

Information

The number of electric plug connections and clips will vary depending on equipment.

1. Release and disconnect electric plug connections from front apron.

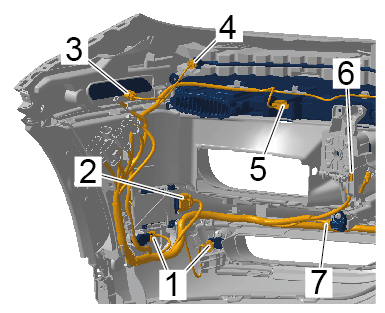

   1. 1.1  Release and disconnect electric plug connections -1. 2,_3,_4,_5,_6,_7-  from front apron at the left.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric plug connections

   2. 1.2  Release and disconnect electric plug connections -1,_2,_3-  from front apron at the center.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric plug connections

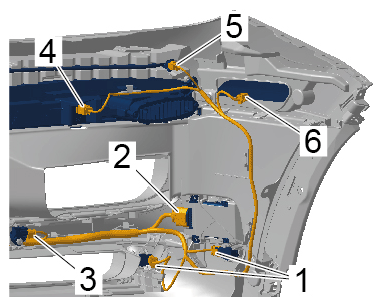

   3. 1.3  Release and disconnect electric plug connections -1,_2,_3,_4,_5,_6-  from front apron at the right.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric plug connections

2. Unclip front electric wire harness from the front apron.

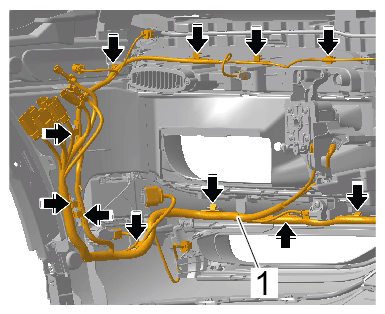

   1. 2.1  Unclip front electric wire harness -1-  from the front apron at the left -arrows-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric wire harness

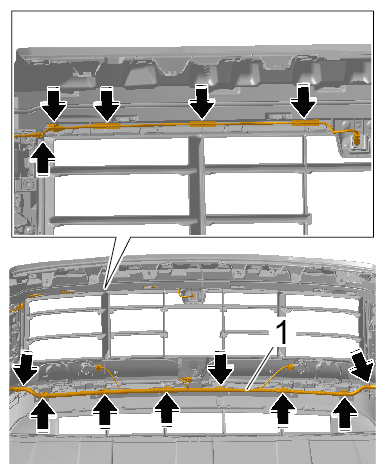

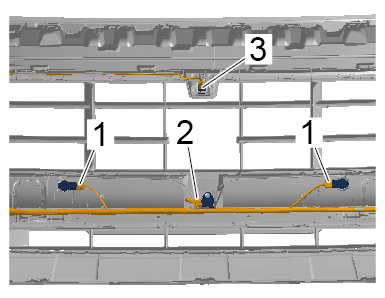

   2. 2.2  Unclip front electric wire harness -1-  from the front apron at the center -arrows-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric wire harness

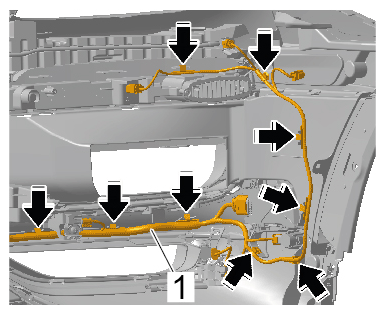

   3. 2.3  Unclip front electric wire harness -1-  from the front apron at the right -arrows-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric wire harness

3. Remove front electric wire harness.
