Technical Values

Location	Description	Type	Basic value

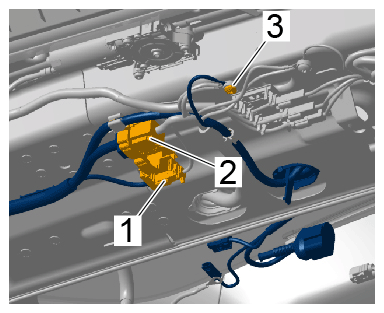

Fastening nut for ground point in wheel housing at near right	Item 1	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Line bracket for main wire harness for luggage compartment at the right
Fastening nut for ground point at rear right	Item 2	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Line bracket for main wire harness for luggage compartment at the right

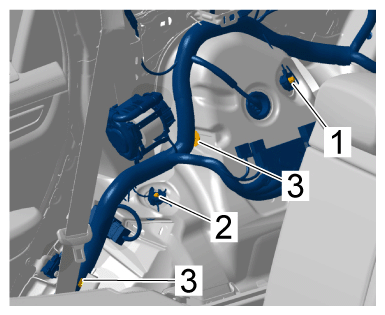

Fastening screw for ground point for roof, left	Item 3	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric plug connection

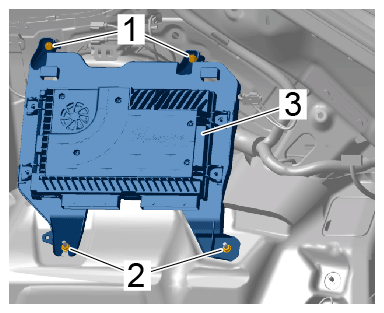

Fastening screws securing loudspeaker booster holder to body	Item 1	Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder for loudspeaker booster
Fastening nuts securing loudspeaker booster holder to body	Item 2	Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Holder for loudspeaker booster
