- Install left tail light.
> 943119 REMOVING AND INSTALLING TAIL LIGHT
- Install right luggage rail.
- 2.1

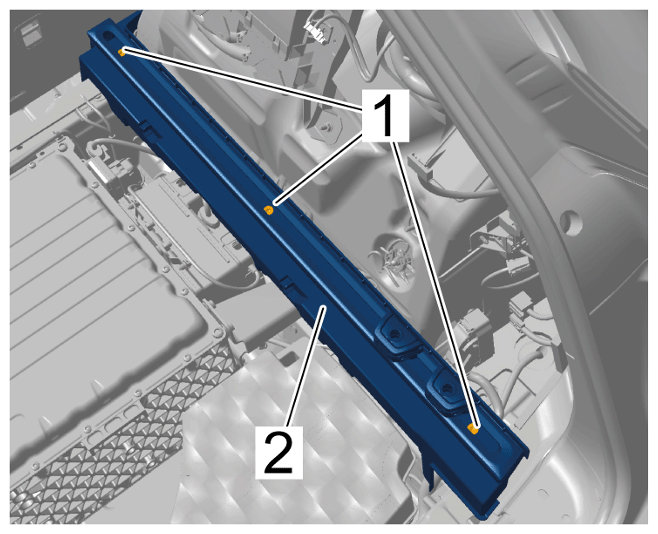

Fit right luggage rail -2-
in luggage compartment.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Right luggage rail
- 2.2
Screw in fastening screws -1-
and tighten to > Tightening torque 12 Nm (9 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Fastening screws
- 2.3

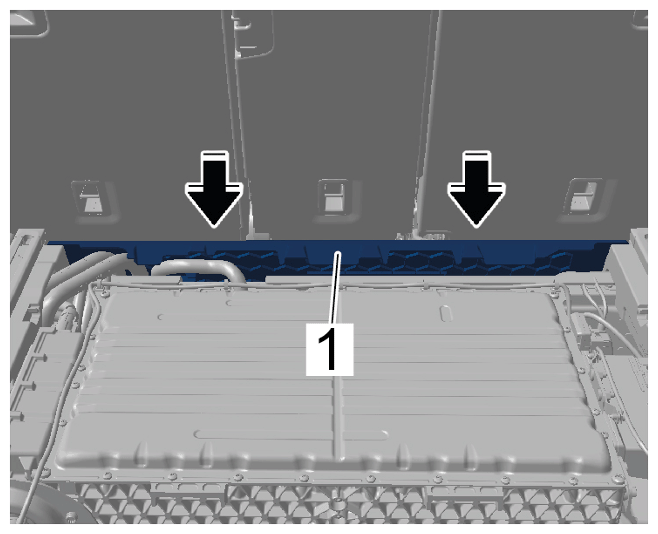

Install floor cover -1-
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Floor cover
- Install rear-end electronics.
> 578919 REMOVING AND INSTALLING REAR-END ELECTRONICS
- Install subwoofer.
With High-End sound system (Bose)
(I-no. 9VL)
> 913619 REMOVING AND INSTALLING SUBWOOFER (BOSE)
With Top Premium sound system (Burmester)
(I-no. 9VJ)
> 913619 REMOVING AND INSTALLING SUBWOOFER (BURMESTER)
- Install rear apron.
> 635519 REMOVING AND INSTALLING REAR APRON
- Install headliner.
> 708419 REMOVING AND INSTALLING HEADLINER

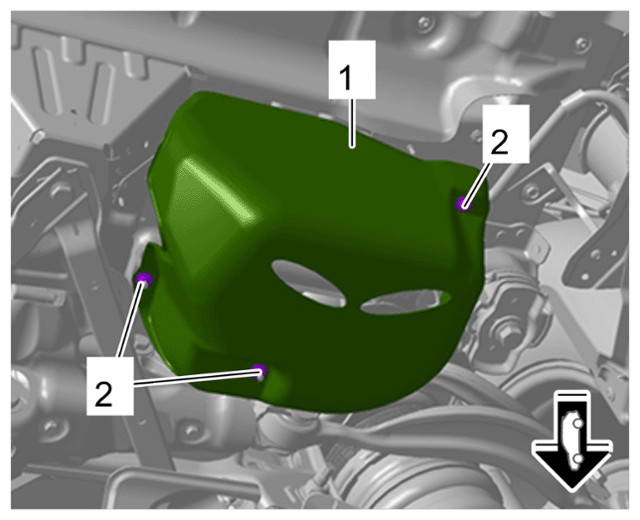

- Fit stone guard for valve unit screw on nuts -2-
and tighten to > Tightening torque 9 Nm (6.5 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Stone guard for valve unit
- Install carbon canister.
> 202519 REMOVING AND INSTALLING CARBON CANISTER
- Fit left rear wheel.
> 440519 REMOVING AND INSTALLING WHEEL
- Secure battery ground strap.
> 978509 LOOSENING AND SECURING GROUND STRAP FOR BATTERY
