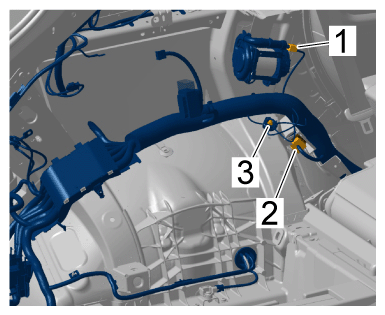

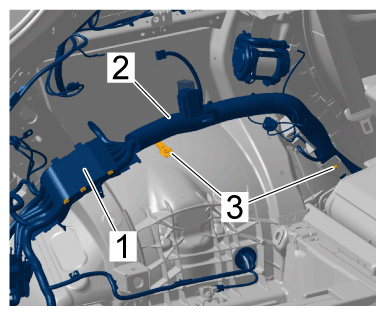

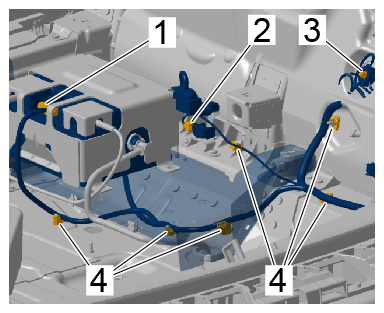

Loosening Main Wire Harness In Luggage Compartment At The Left

NOTIFICATION

Incorrect handling of main wire harness

• Risk of damage to lines
  1. → The main wire harness contains all airbag lines, antenna lines and optical waveguides.
  2. → The main wire harness must not be separated and is always replaced as a complete wire harness when carrying out extensive repairs.
  3. → If individual lines are damaged, shut off these lines and install new lines. Lay the new lines along the main wire harness and secure them to the main wire harness.

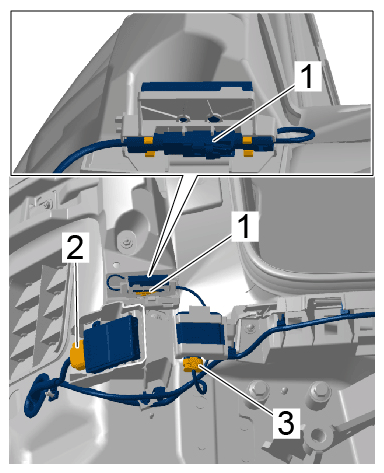

1. Unclip electric plug connection for PVTS antenna -1-  from the holder.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for PVTS antenna

2. Release and disconnect electric plug connection from PVTS antenna

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for PVTS antenna

3. Release and disconnect electric plug connection for Lane Change Assist control unit at the right -2-  .

   > 917019 REMOVING AND INSTALLING CONTROL UNIT FOR LANE CHANGE ASSIST

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection on control unit for Lane Change Assist, right

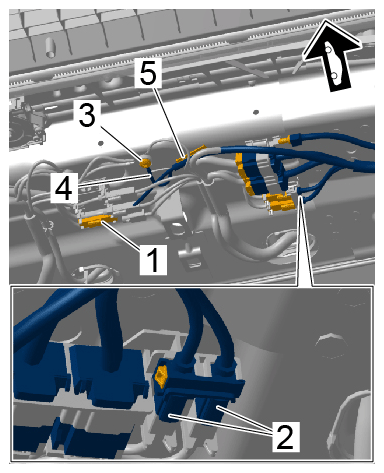

4. Unclip line bracket -3-  for section of line for Lane Change Assist control unit at the right.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Line bracket

5. Unclip center line bracket -1-  for section of line for Lane Change Assist control unit at the right -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Centre line bracket

6. Unclip electric plug connection on antenna for ERA GLONASS -1-  from the holder.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection on antenna for ERA GLONASS

7. Release and disconnect electric plug connection on antenna for ERA GLONASS -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection on antenna for ERA GLONASS

8. Release and disconnect electric plug connection on Lane Change Assist control unit at the left -2-  .

   > 917019 REMOVING AND INSTALLING CONTROL UNIT FOR LANE CHANGE ASSIST

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection on control unit for Lane Change Assist, left

9. Release and disconnect electric plug connection on control unit for garage door opener -3-  .

   > 967919 REMOVING AND INSTALLING CONTROL UNIT FOR GARAGE DOOR OPENER

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection on control unit for garage door opener

10. Unclip line bracket -1-  for section of line for Lane Change Assist control unit.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for Lane Change Assist control unit

11. Press rubber sleeve -2-  into the passenger compartment and guide section of line for Lane Change Assist control unit into the passenger compartment.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rubber sleeve

12. Press rubber sleeve -1-  into the passenger compartment and guide section of line for left tail light -2-  into the passenger compartment.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for left tail light

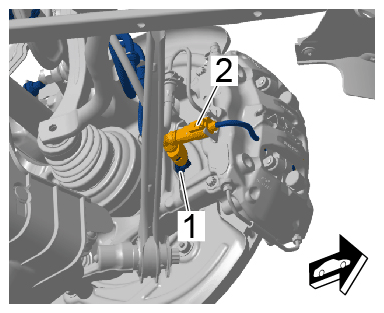

13. Release and disconnect electric plug connection on rear left speed sensor

    > 451519 REMOVING AND INSTALLING REAR SPEED SENSOR

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection on speed sensor

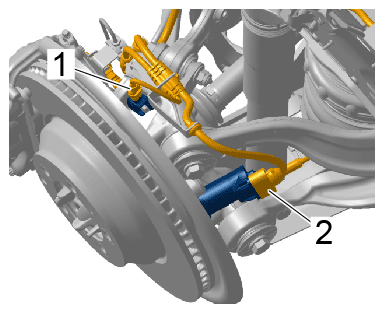

14. Release and disconnect electric plug connection for brake pad wear indicator -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for brake pad wear indicator

15. Release and disconnect electric plug connection for a bag sensor on rear left wheel bearing housing -1-  .

    > 695119 REMOVING AND INSTALLING AIRBAG SENSOR

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for airbag sensor on rear left wheel bearing housing

16. Release and disconnect electric plug connection on parking brake spreader device -2-  .

    > 468519 REMOVING AND INSTALLING SPREADER DEVICE

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection on parking brake spreader device

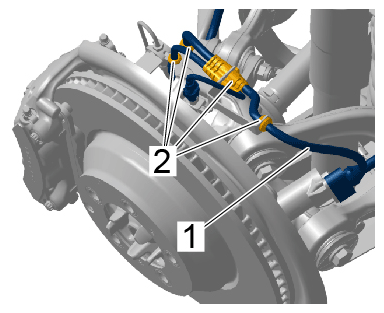

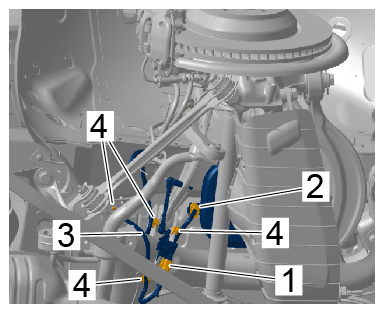

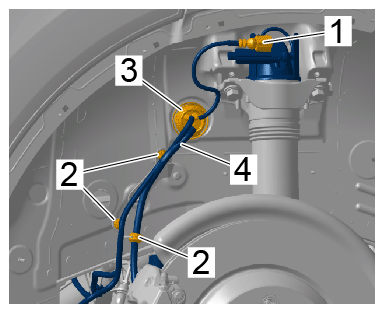

17. Pull line bracket -2-  for section of line for the chassis at the left -1-  out of the holder.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line bracket for section of line for chassis, left

18. Release and disconnect electric plug connection for rear left level sensor -1-  .

    > 431955 REPLACING REAR LEVEL SENSOR

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection on rear left level sensor

19. Release and disconnect electric plug connection for left air spring -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection on left air spring

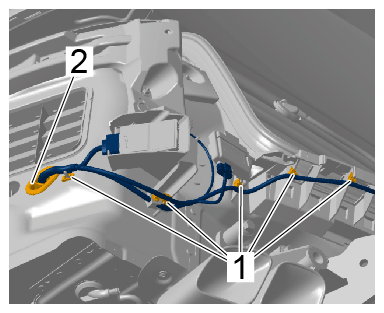

20. Disconnect section of line for chassis at the left -3-  from the holders -4-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for chassis, left

21. Release and disconnect electric plug connection for rear left damping adjustment -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for rear left damping adjustment

22. Unclip line bracket -2-  for section of line for chassis at the left -4-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for chassis, left

23. Press rubber sleeve -3-  into the passenger compartment and guide section of line for the chassis at the left -4-  into the passenger compartment.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rubber sleeve

24. Release and disconnect electric plug connection -1-  from valve unit -2-  .

    > 432355 REPLACING VALVE UNIT

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection on valve unit

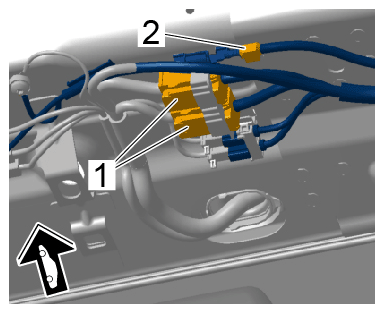

25. Release and disconnect electric plug connection -3-  from the compressor -4-  .

    > 431519 REMOVING AND INSTALLING COMPRESSOR

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection on compressor

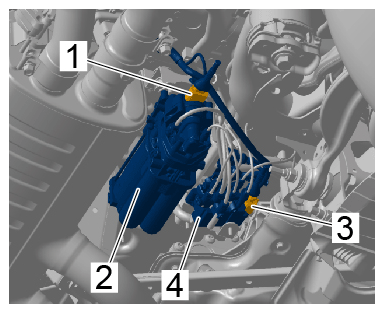

26. Release and disconnect electric plug connections -1-  from con pressor control unit -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection on compressor control unit

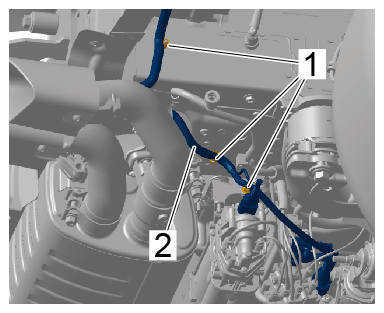

27. Unclip line bracket -1-  for section of line for the levelling system -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for levelling system

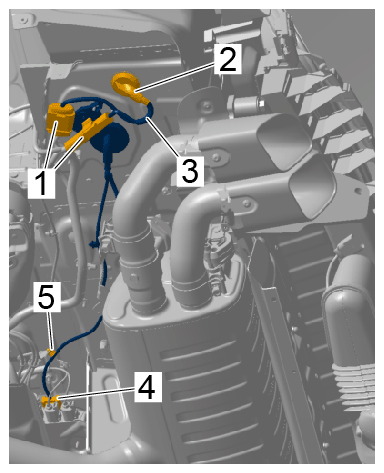

28. Unscrew fastening nut -1-  and press heat shield -2-  down until section of line for the levelling system -4-  is accessible.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat protection panel

29. Unclip line bracket -3-  for section of line for the levelling system -4-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line bracket

30. Press rubber sleeve -1-  into the passenger compartment and guide section of line for the levelling system -2-  into the passenger compartment.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rubber sleeve

31. Release and disconnect electric plug connections -1-  from connection point for rear axle.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections for connection point for rear axle

32. Press rubber sleeve -2-  into the passenger compartment and guide section of line for rear axle -3-  into the passenger compartment.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for rear axle

33. Release and disconnect electric plug connection for (rear) PDCC control unit -4-  and unclip line bracket -5-  .

    > 430819 REMOVING AND INSTALLING (REAR) PDCC CONTROL UNIT

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for (rear) PDCC control unit

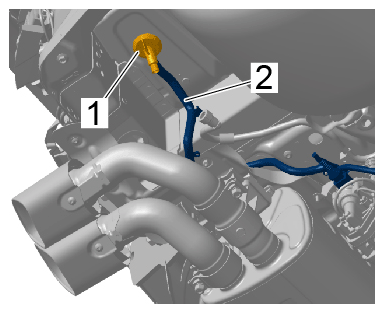

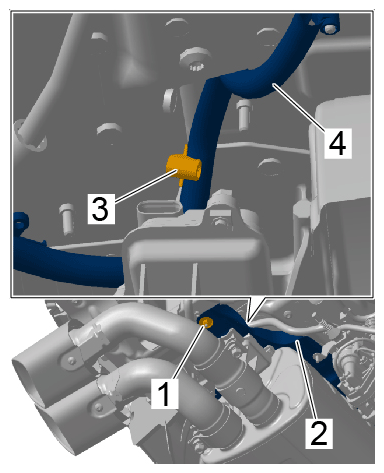

34. Release and disconnect electric plug connection for exhaust flap -1-  and unclip line bracket -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for exhaust flap

35. Press rubber sleeve -3-  into the passenger compartment and guide section of line for (rear) PDCC -4-  into the passenger compartment.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for (rear) PDCC

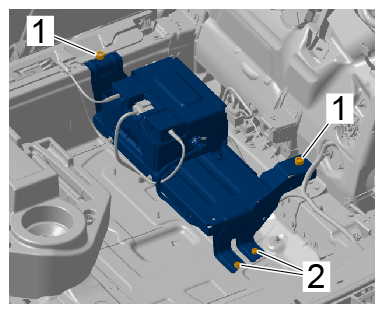

36. Unscrew fastening screws -1 and_2-  from holder for 48-volt additional battery.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws

37. Release and disconnect electric plug connection for 48-volt additional battery -1-  .

    > 270719 REMOVING AND INSTALLING 48-VOLT ADDITIONAL BATTERY

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection on 48-volt additional battery

38. Release and disconnect electric plug connection for airbag sensor in luggage compartment at the right -2-  .

    > 695119 REMOVING AND INSTALLING AIRBAG SENSOR

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for airbag sensor in luggage compartment, right

39. Unscrew fastening nut -3-  from rear right ground point and remove ground lines.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear right ground point

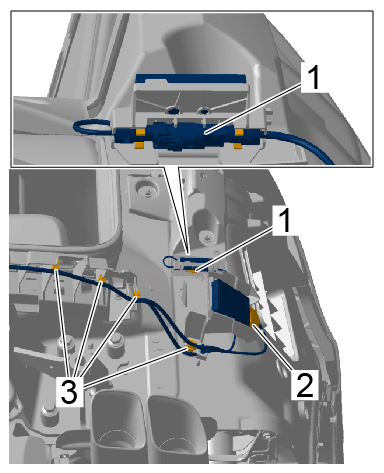

40. Lift up holder for 48-volt additional battery and unclip line bracket -4-  for section of line for the 48-volt additional battery.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Holder for 48-volt additional battery

41. Release and disconnect electric plug connection for KESSY antenna -1-

    > 966719 REMOVING AND INSTALLING (REAR) KESSY/PAS ANTENNA

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection on KESSY antenna

42. Unclip line bracket -2-  for section of line for luggage compartment -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for luggage compartment

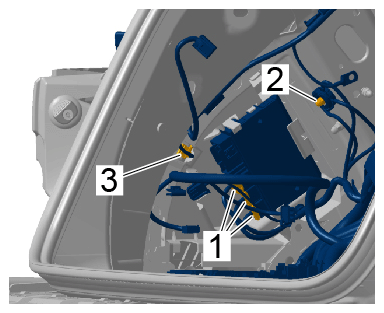

43. Release and disconnect electric plug connection for airbag sensor in luggage compartment at the left -1-  .

    > 695119 REMOVING AND INSTALLING AIRBAG SENSOR

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for airbag sensor, rear left

44. Unclip line bracket -2-  for section of line for luggage compartment -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for luggage compartment

45. Release and disconnect electric plug connection for head airbag at the left -1-  .

    > 696619 REMOVING AND INSTALLING HEAD AIRBAG

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for head airbag, left

46. Unclip line bracket -2-  on section of line for head airbag at the left -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for head airbag, left

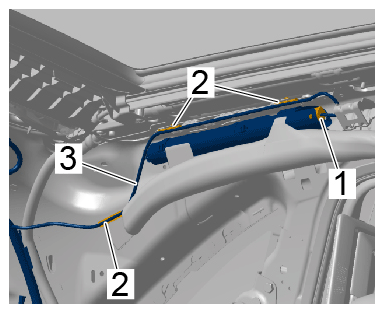

47. Unclip electric plug connection at connection point for roof at the right -1-  from the holder.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection at connection point for roof, right

48. Open holder and unclip electric plug connections at connection point for roof at the left -2-  from the holder.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections at connection point for roof, left

    Information

    Handling optical waveguides:

    • Optical waveguides must not be kinked.
    • Optical waveguides must not be crushed.

    The ends of the optical waveguide must be checked for dirt and soiling before installation.

49. Release and disconnect electric plug connections -1 and 2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

50. Unscrew fastening screw -3-  on ground point at the left of the roof and remove ground line.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Ground point for roof, left

51. Unclip line bracket -5-  for the ground line.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line bracket for ground line

52. Unclip electric plug connections -1-  at connection point for the roof from the holder.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections at connection point for roof

53. Release and disconnect electric plug connections -1-  at connection point for the roof.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections at connection point for roof

    Information

    Collect emerging water using a suitable container and close off the ends of the hose using suitable stoppers.

54. Disconnect hose connection for washer system -2-

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hose connection for washer system

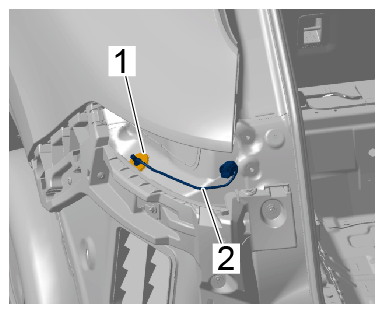

55. Unclip line bracket -1-  for section of line for the roof -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line bracket for section of line for roof

56. Release and disconnect electric plug connection for antenna amplifier (on side window) at the left

    > 918419 REMOVING AND INSTALLING ANTENNA AMPLIFIER (SIDE WINDOW)

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for antenna amplifier (on side window), left

57. Unclip line bracket -2-  on section of line for antenna amplifier (on side window) at the left -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for antenna amplifier (on side window), left

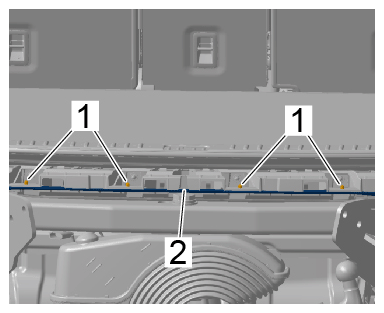

58. Remove water drain hose for panoramic roof -2-  from line brackets for main wire harness

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Water drain hose for panoramic roof

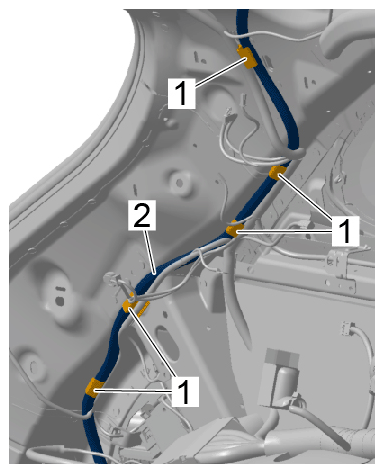

59. Unclip line bracket -1-  for section of line for the roof -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for roof

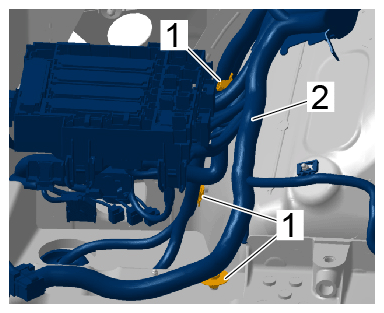

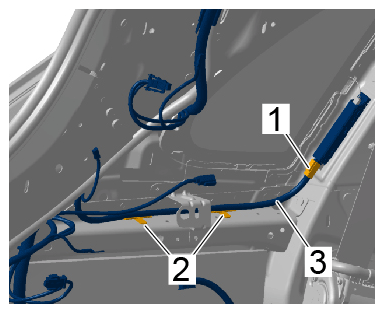

60. Unclip line bracket -1-  for main wire harness for luggage compartment at the left -2-  at the wheel housing.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Main wire harness in luggage compartment, left

61. Release and disconnect electric plug connections for trailer hitch control unit

    > 669619 REMOVING AND INSTALLING TRAILER HITCH CONTROL UNIT

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections on trailer hitch control unit

62. Unscrew fastening nut -2-  from rear left ground point and remove ground lines.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

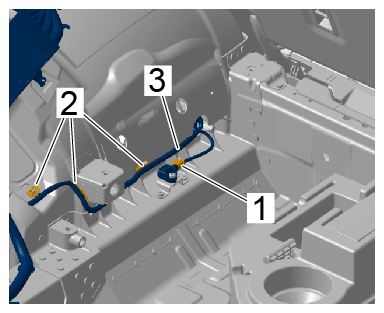

    Fastening nut for rear left ground point

63. Unclip line bracket -3-  for section of line for the left tail light.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line bracket for section of line for left tail light

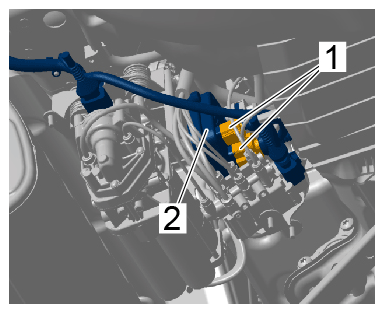

64. Release and disconnect electric plug connection for rear three-point belt at the left -1-

    > 691219 REMOVING AND INSTALLING REAR THREE-POINT BELT

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for ear three-point belt, left

65. Release and disconnect electric plug connection for left seat heating resistor -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for seat heating resistor, left

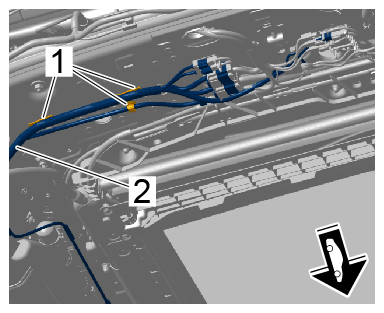

66. Unscrew fastening nut -3-  from rear left ground point and remove ground lines.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening nut for rear left ground point

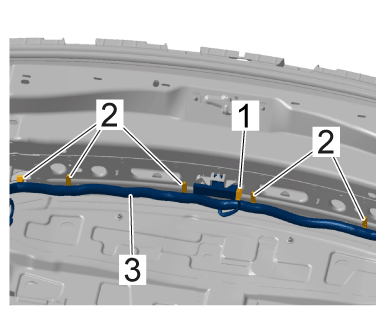

67. Open cable duct cover -1-  and remove main wire harness in luggage compartment at the left -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable duct cover

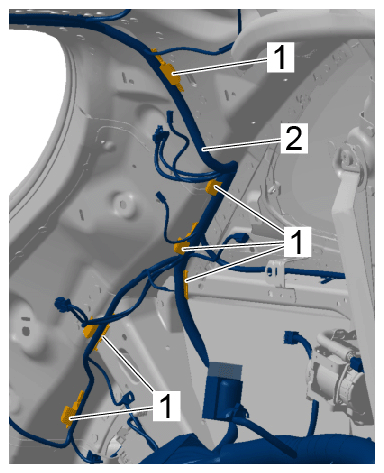

68. Unclip line bracket -3-  for main wire harness for luggage compartment at the left -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line bracket for main wire harness in luggage compartment at the left
