Subsequent Work

  1. Install fuel tank.

    > 201019 REMOVING AND INSTALLING FUEL TANK

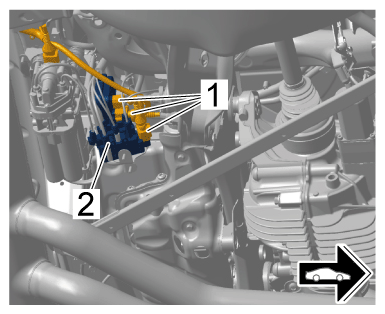

  2. Install electric wire harness and plug in electric plug connections -1-  on valve unit -2-  .
    G15261530Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Valve unit

  3. Install cover.

    > 427819 REMOVING AND INSTALLING COVER

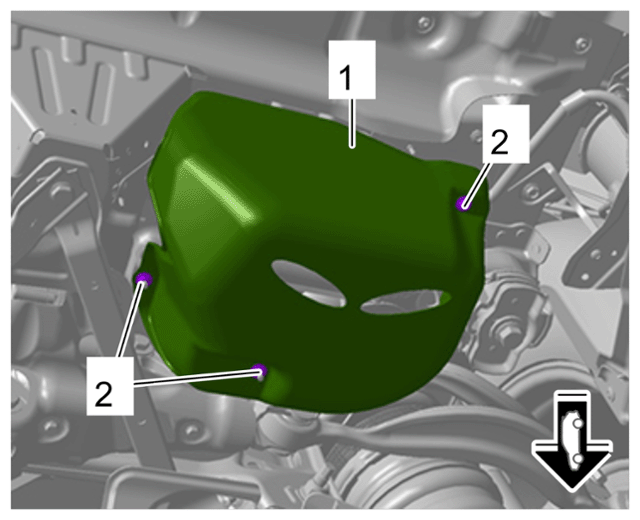

  4. Install stone guard for valve unit screw on fastening nuts -2-  and tighten to > Tightening torque 9 Nm (6.5 ftlb.)
    G15261531Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Stone guard for valve unit

  5. Install rear underbody cover at the right.

    > WM, 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY

  6. Install upper part of center console.

    > 68171901 REMOVING AND INSTALLING UPPER PART OF CENTRE CONSOLE

  7. Install center floor covering.

    > 704619 REMOVING AND INSTALLING CENTRE FLOOR COVERING

  8. Secure battery ground strap.

    > 978509 LOOSENING AND SECURING GROUND STRAP FOR BATTERY
