Removing Main Wire Harness In Passenger Compartment At The Rear

NOTIFICATION

Incorrect handling of main wire harness

• Risk of damage to lines
  1. → The main wire harness contains all airbag lines, antenna lines and optical waveguides.
  2. → The main wire harness must not be separated and is always replaced as a complete wire harness when carrying out extensive repairs.
  3. → If individual lines are damaged, shut off these lines and install new lines. Lay the new lines along the main wire harness and secure them to the main wire harness.

Information

The cutting ring -1-  and Voss threaded joint -2-  must remain on the air line -3-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Air line

1. Expose valve unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

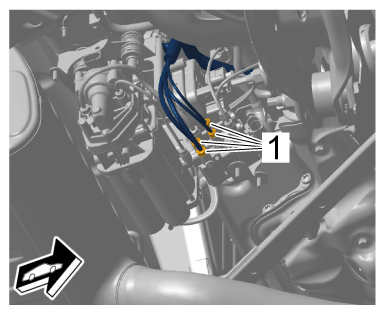

   Valve unit

   1. 1.1  Loosen union nuts -1-  , but do not unscrew fully until residual air has escaped.
   2. 1.2  Remove air lines from valve unit.
   3. 1.3  Close off all openings using suitable stoppers.

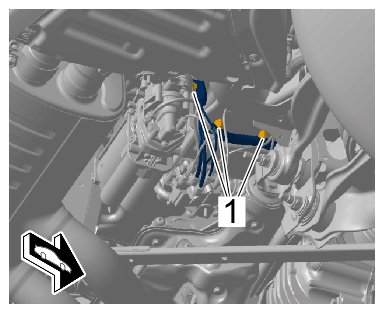

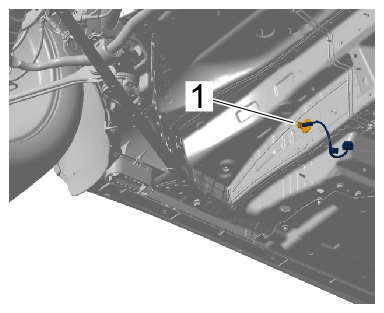

2. Unclip line bracket -1-  for section of line for air suspension system.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Line bracket

3. Release and disconnect electric plug connection for rear right angle sensor for headlight beam adjustment (HBA).

   > 947919 REMOVING AND INSTALLING REAR ANGLE SENSOR FOR HEADLIGHT BEAM ADJUSTMENT (HBA)

4. Release and disconnect electric plug connection for rear right air spring bellows.

   > 434355 REPLACING AIR SPRING BELLOWS

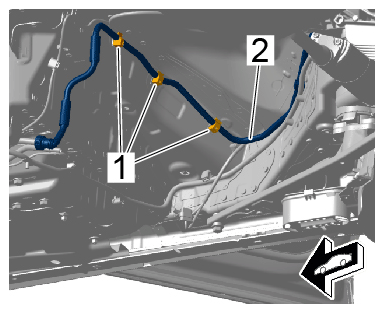

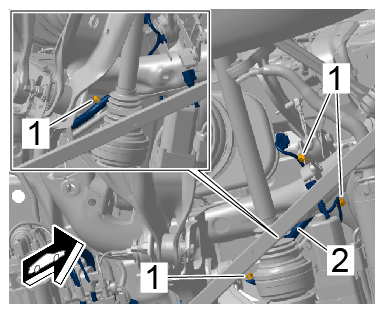

5. Unclip line bracket -1-  for section of line for rear axle.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Line bracket in rear axle area

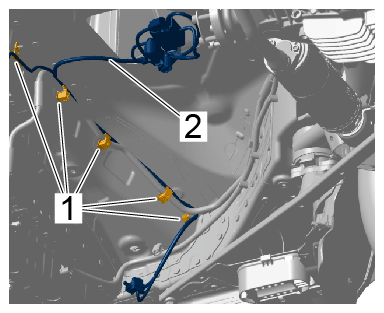

6. Guide wire harness with air lines -2-  on the rear axle forward.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Line bracket

7. Press grommet -1-  inwards and lay section of line in the passenger compartment.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Sleeve

8. Unclip line bracket -1-  for the fuel line and set the fuel line -2-  aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fuel line

9. Unclip line bracket -1-  for section of line for the fuel tank and set electric line -2-  down in the passenger compartment.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Line bracket

10. Release and disconnect electric plug connection for fuel pump control unit.

    > 207019 REMOVING AND INSTALLING CONTROL UNIT FOR FUEL PUMP

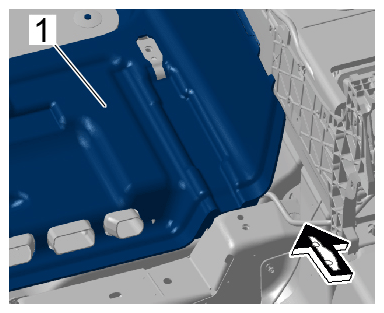

11. Lift up floor covering -1-  at the front left until the gateway control unit is accessible.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Carpet

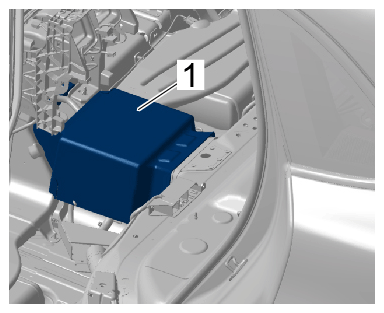

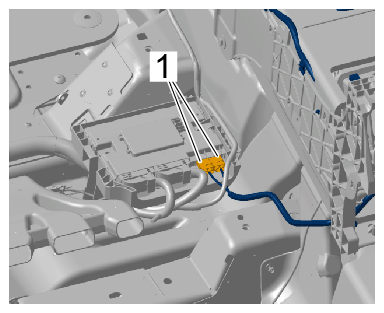

12. Release and disconnect electric plug connections -1-  on the gateway control unit.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Gateway control unit

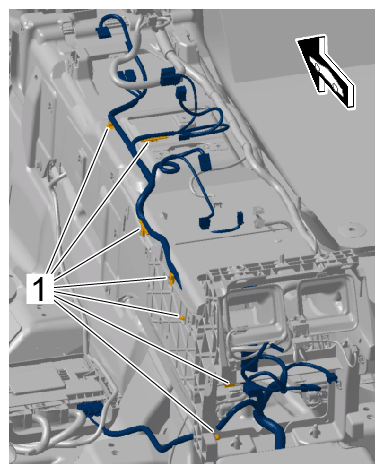

13. Unclip line bracket -1-  for section of line for the center console.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line bracket

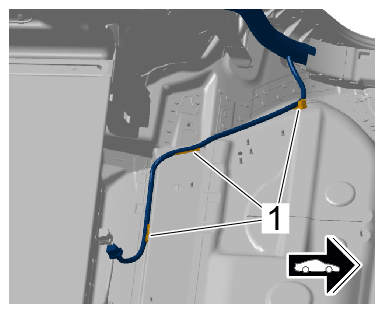

14. Unclip line bracket -1-  for section of line for the passenger compartment at the left.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line bracket

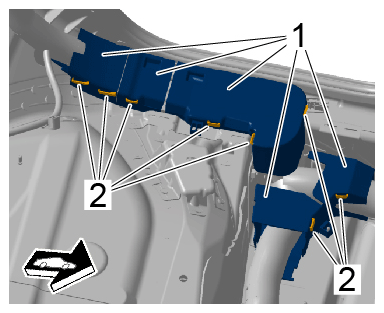

15. Open clips -2-  for cable duct -1-  at the rear left door sill.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Left cable duct

16. Lift up lining mat -1-  in the center tunnel until the cable duct is accessible.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lining mat

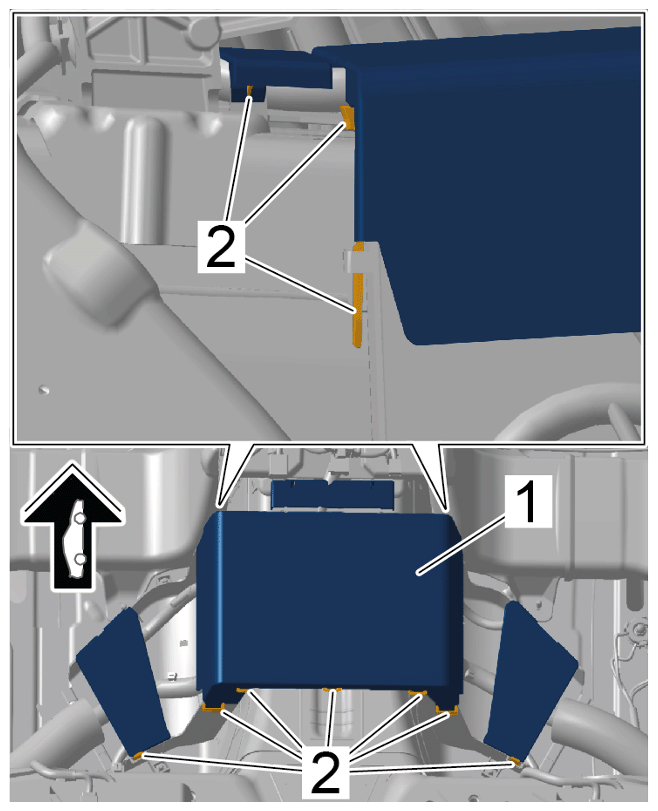

17. Open clips -2-  for cable duct -1-  at the center tunnel.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable duct on center tunnel

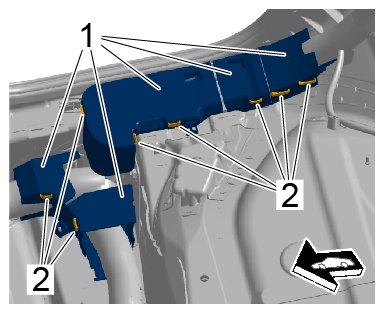

18. Open clips -2-  for cable duct -1-  at the rear right door sill.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Right cable duct

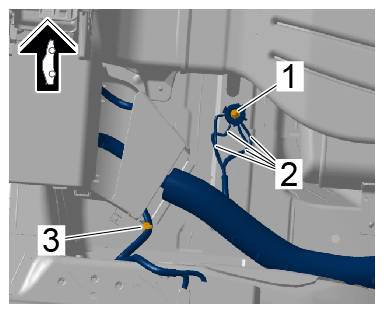

19. Unscrew fastening nut -1-  on ground point in the right footwell and remove ground lines -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Ground point in right footwell

20. Cut tie-wrap -3-  on cable duct in the right footwell.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable duct

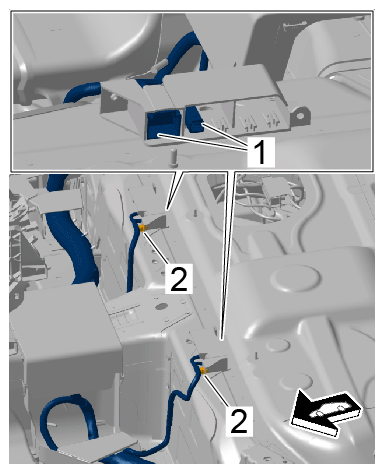

21. Unclip electric plug connections -1-  at connection points for the seat.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

22. Unclip line bracket -2-  at connection points for the seat.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

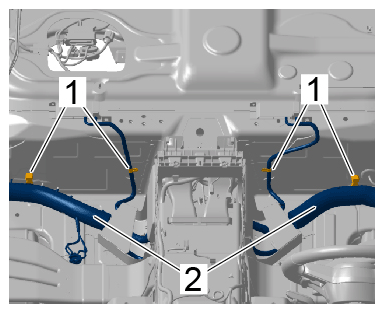

23. Unclip line bracket -1-  and loosen wire harness for passenger compartment at the rear -2-  from the seat cross member.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Wire harness in passenger compartment, rear
