Preliminary Work

  1. Loosen battery ground strap.

    > 978509 LOOSENING AND SECURING GROUND STRAP FOR BATTERY

  2. Remove center floor covering.

    > 704619 REMOVING AND INSTALLING CENTRE FLOOR COVERING

  3. Remove upper part of center console.

    > 68171901 REMOVING AND INSTALLING UPPER PART OF CENTRE CONSOLE

  4. Remove rear underbody cover at the right.

    > WM, 519419 REMOVING AND INSTALLING COVER FOR REAR UNDERBODY

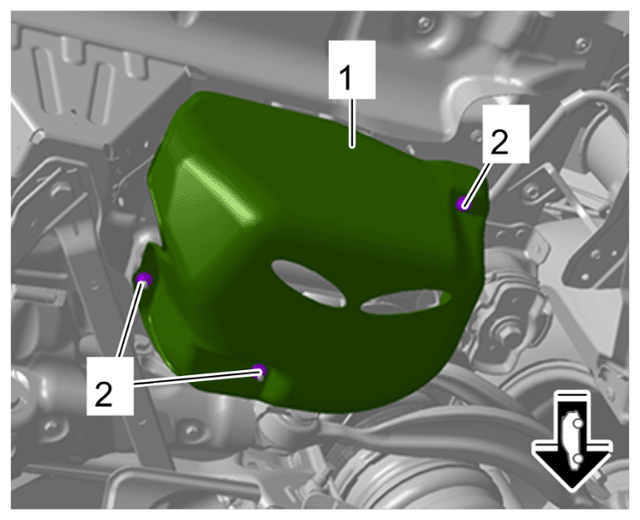

  5. Unscrew fastening nuts -2-  and remove stone guard for valve unit -1-  .
    G15261505Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Stone guard for valve unit

  6. Remove cover.

    > 427819 REMOVING AND INSTALLING COVER

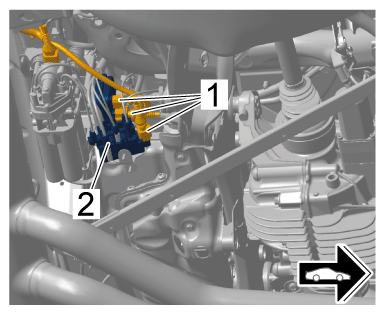

  7. Release and disconnect electric plug connections -1-  at the valve unit -2-  and set electric wire harness aside.
    G15261506Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Valve unit

  8. Remove fuel tank.

    > 201019 REMOVING AND INSTALLING FUEL TANK
