Subsequent Work

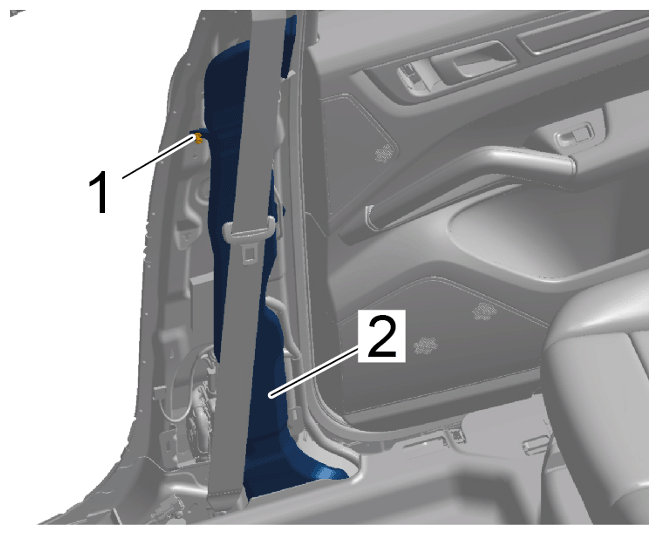

  1. Install right B-pillar air guide -2-  and clip in expansion rivet -1-  .
    G15261502Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    B-pillar air guide, right

  2. Install trim panel for dashboard (passenger's side).

    > 70191902 REMOVING AND INSTALLING TRIM PANEL FOR DASHBOARD (PASSENGER'S SIDE)

    Information

    • Do not remove belt fitting.
  3. Install lower part of B-pillar trim panel at the right.

    > 70671903 REMOVING AND INSTALLING B-PILLAR TRIM PANEL (LOWER PART)

  4. Fit carpet at the front left.

    > 704119 REMOVING AND INSTALLING FRONT FLOOR COVERING

  5. Secure battery ground strap.

    > 978509 LOOSENING AND SECURING GROUND STRAP FOR BATTERY
