Removing Main Wire Harness In Passenger Compartment At The Left

NOTIFICATION

Incorrect handling of main wire harness

• Risk of damage to lines
  1. → The main wire harness contains all airbag lines, antenna lines and optical waveguides.
  2. → The main wire harness must not be separated and is always replaced as a complete wire harness when carrying out extensive repairs.
  3. → If individual lines are damaged, shut off these lines and install new lines. Lay the new lines along the main wire harness and secure them to the main wire harness.

1. Release and disconnect electric plug connection on rear door.

   > 585119 REMOVING AND INSTALLING REAR DOOR

2. Disconnect electric line for door electrics.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

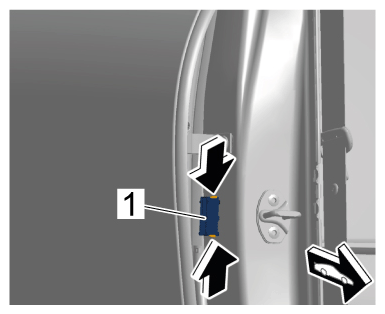

   1. 2.1  Press locking lugs together -Arrows-  and disengage mounting housing -1-  .
   2. 2.2  Pull electric line out of the B-pillar.
3. Release and disconnect electric plug connections on belt retractor.

   > 692419 REMOVING AND INSTALLING FRONT SEAT-BELT BUCKLE

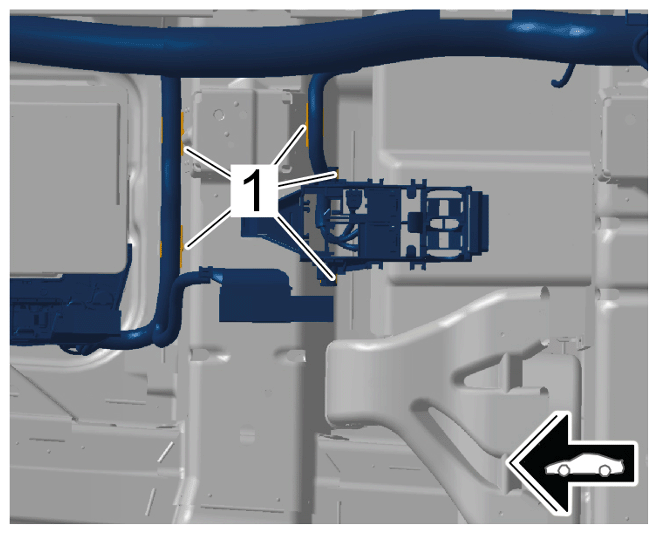

4. Unclip line bracket -1-  and set electric line for right B-pillar -2-  down in the passenger compartment.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric line

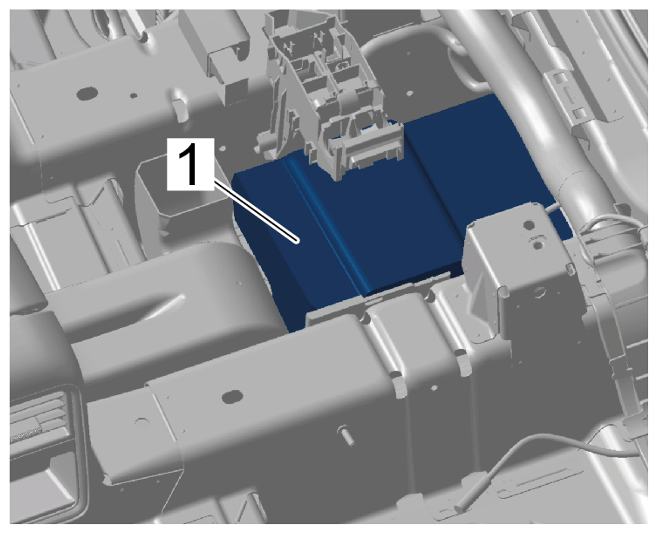

5. Lift up carpet at the rear right -1-  until the electric wire harness is accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Carpet

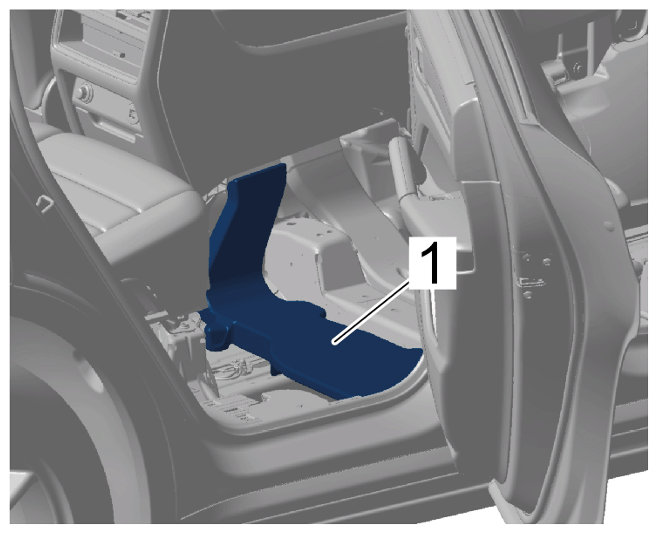

6. Remove rear sound absorbers -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Insulating foam

7. Release and disconnect electric plug connection for airbag sensor on right B-pillar -1-  .

   > 695119 REMOVING AND INSTALLING AIRBAG SENSOR

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for airbag sensor on right B-pillar

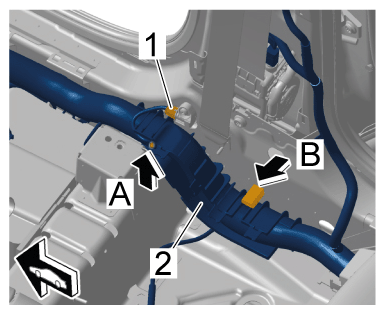

8. Unclip cable duct at the right -2-  from inner sill -arrow A-  and -arrow B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Right cable duct

9. Unclip line bracket at connection point for passenger seat -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Line bracket at connection point for passenger seat

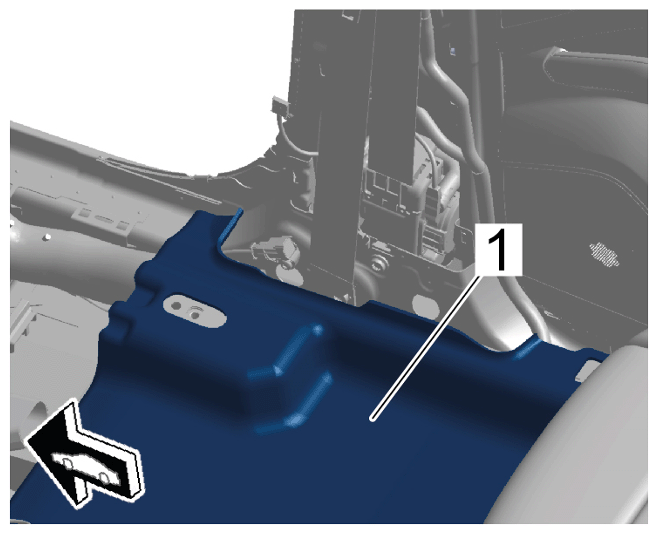

10. Remove footwell outlet vent at the right -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Outlet vent on passenger's side

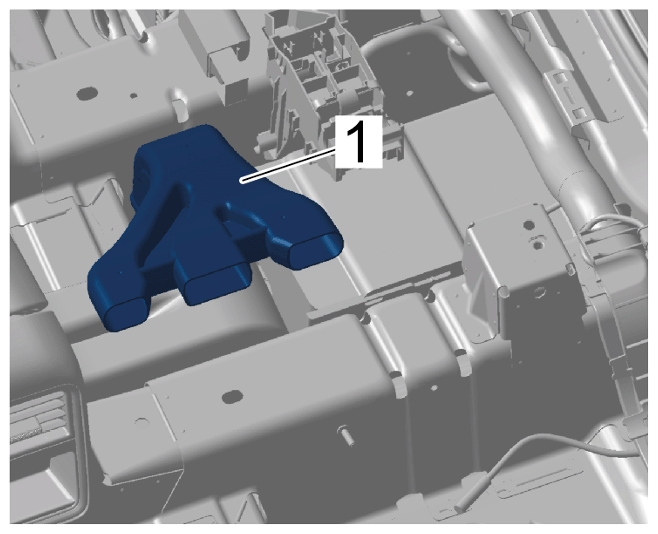

11. Remove sound absorber at the right -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Insulating piece on passenger's side

12. Release and disconnect electric plug connection for route detection control unit.

    > 278119 REMOVING AND INSTALLING ROUTE DETECTION CONTROL UNIT

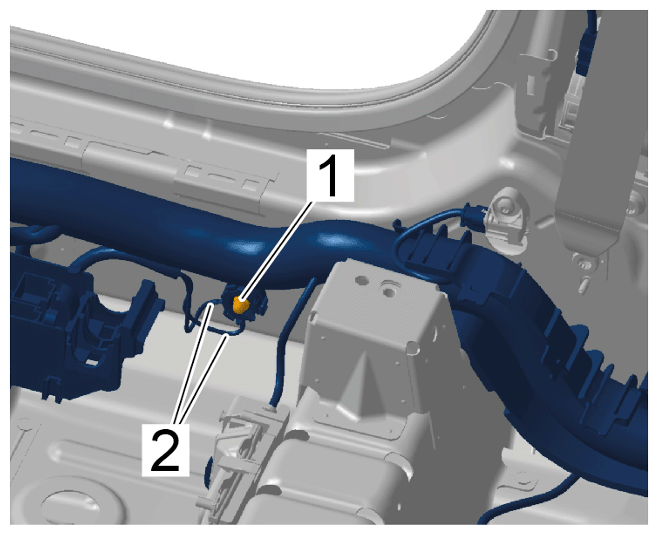

13. Unscrew fastening nut -1-  on ground point at the bottom of the right B-pillar and remove ground lines -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Ground point on bottom of right B-pillar

14. Remove electric lines at the disconnection element.

    > 974619 REMOVING AND INSTALLING DISCONNECTION ELEMENT

15. Remove electric lines at the power distributor.

    > 978919 REMOVING AND INSTALLING POWER DISTRIBUTOR

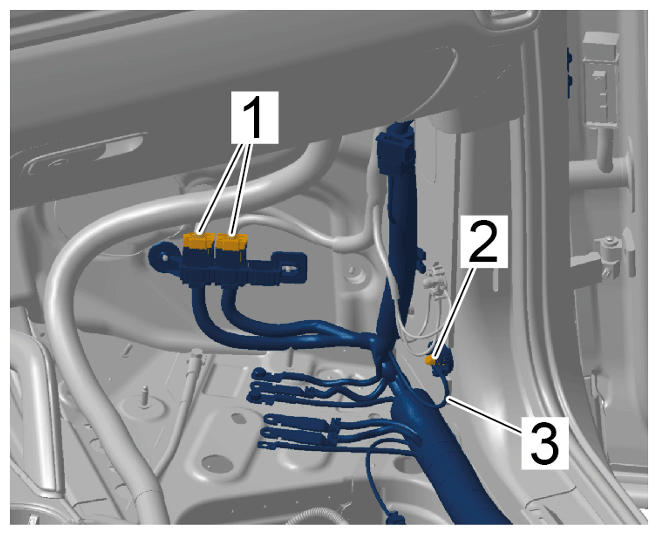

16. Release and disconnect electric plug connections -1-  at connection point on bottom of right A-pillar.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections

17. Unscrew fastening nut -2-  on ground point at the bottom of the right A-pillar and remove ground line -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening nut

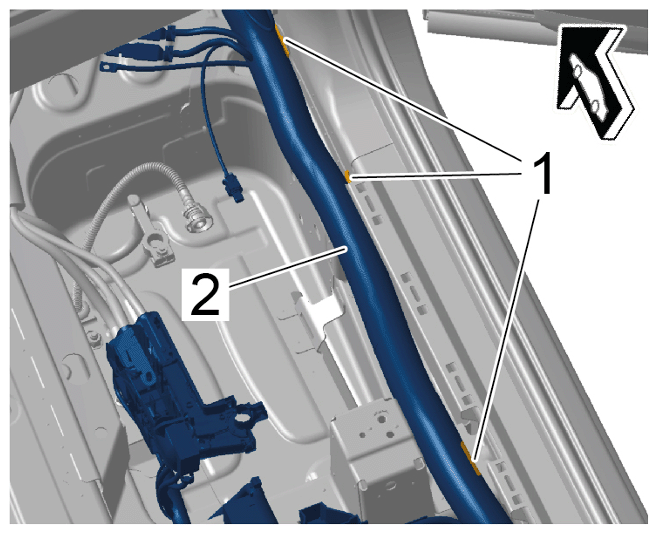

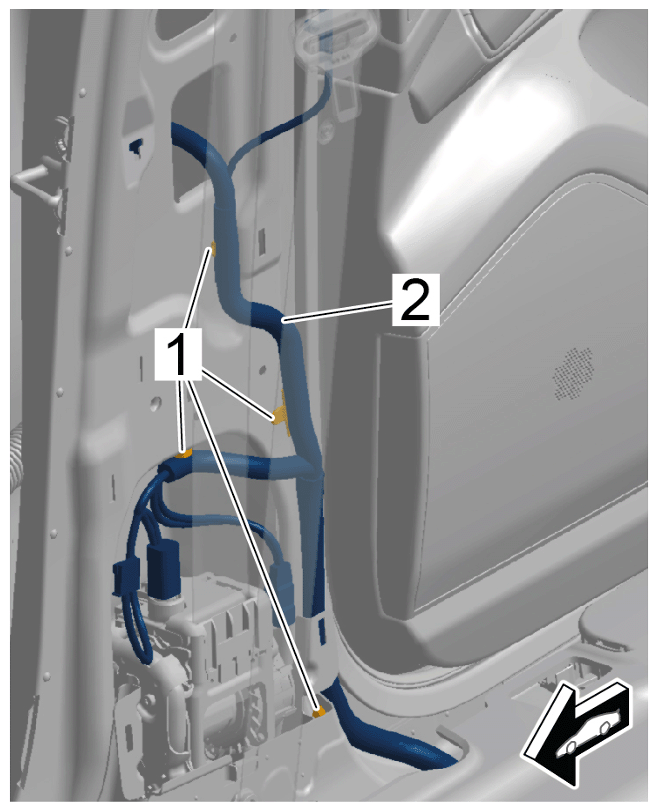

18. Unclip line bracket -1-  and set electric wire harness for right B-pillar -2-  down in the footwell.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness for right B-pillar

19. Release and disconnect electric plug connection for front right door.

    > 575119 REMOVING AND INSTALLING DOOR

20. Loosen electric wire harness for door electrics at the right.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Locking lug

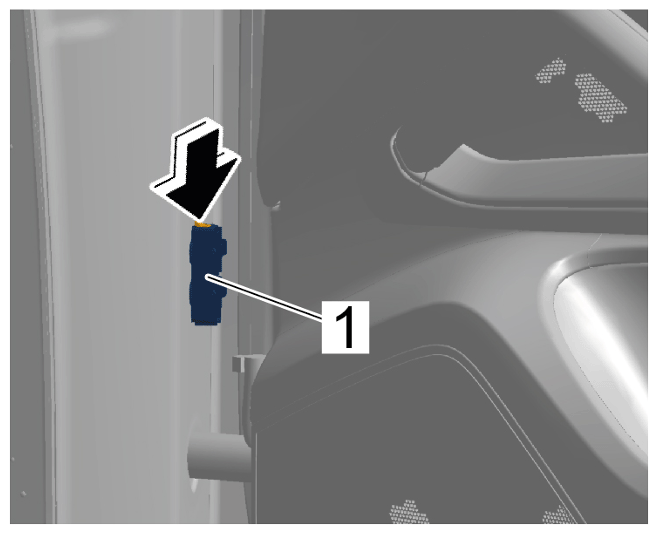

    1. 20.1  Press locking lug -Arrow-  and disengage mounting housing -1-  .
    2. 20.2  Pull electric wire harness out of the A-pillar.
21. Release and disconnect electric plug connection for (front) PDCC control unit.

    > 430819 REMOVING AND INSTALLING (FRONT) PDCC CONTROL UNIT
