Technical Values

Location	Description	Type	Basic value

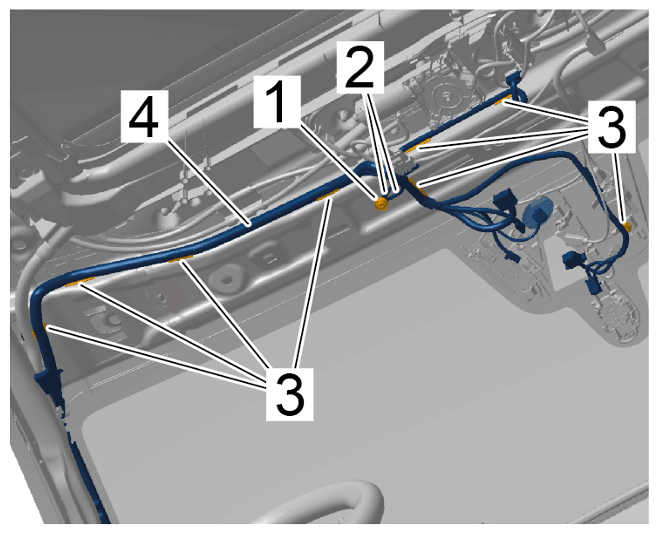

Ground point on lower right B-pillar	Item 1	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nut

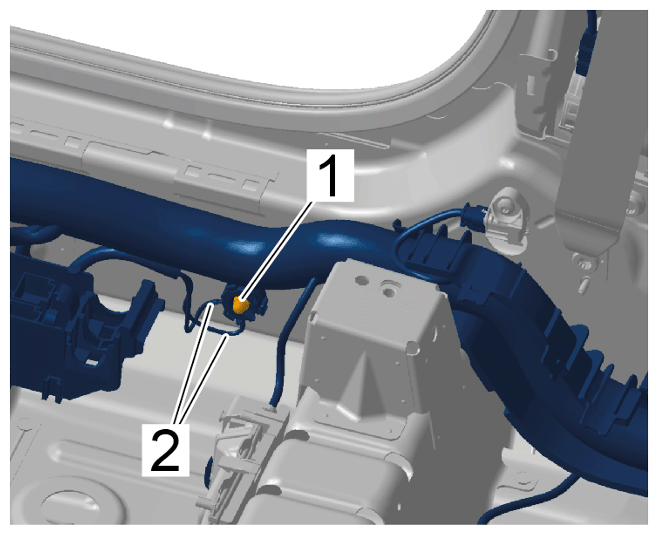

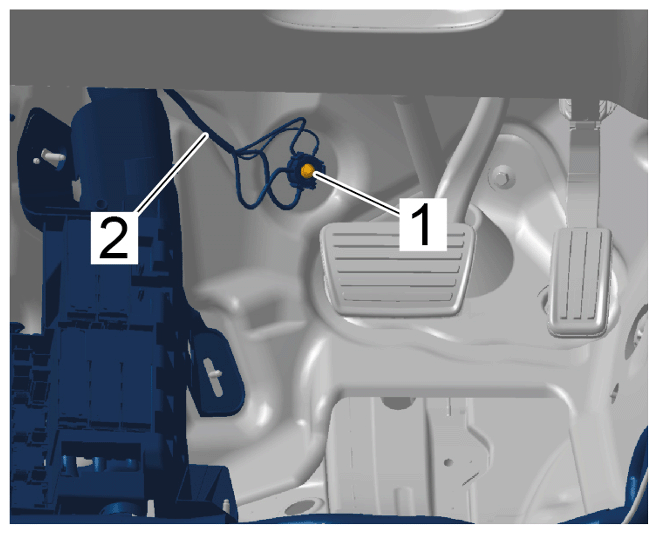

Ground point at driver's footwell	Item 1	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nut

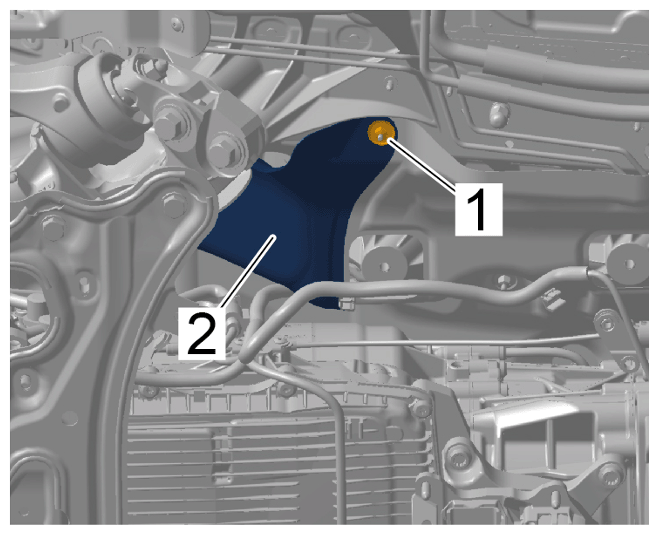

Ground point at the firewall	Item 1	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nut

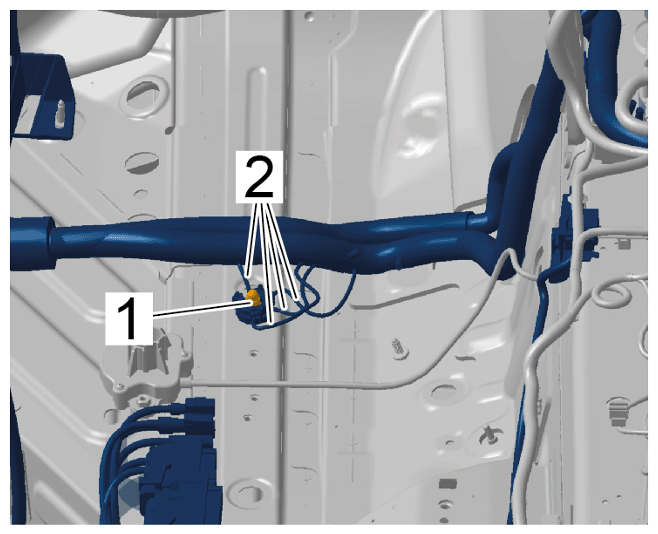

Ground point at the roof	Item 1	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nut

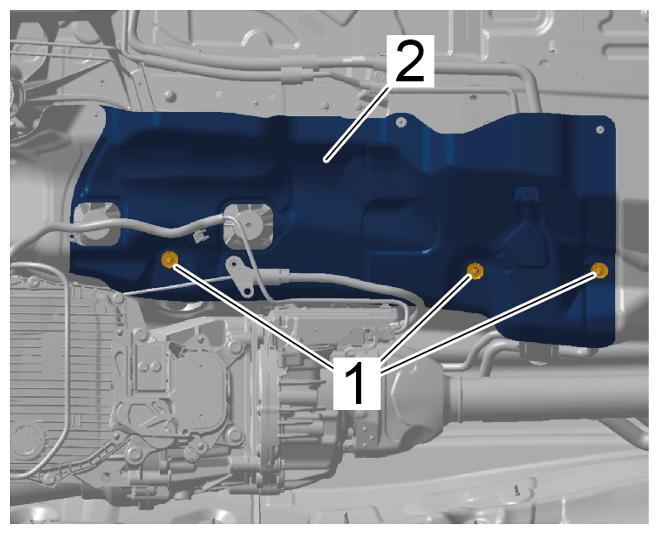

Heat shield on tunnel, left	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield on underbody, left
Heat shield on tunnel, left	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield

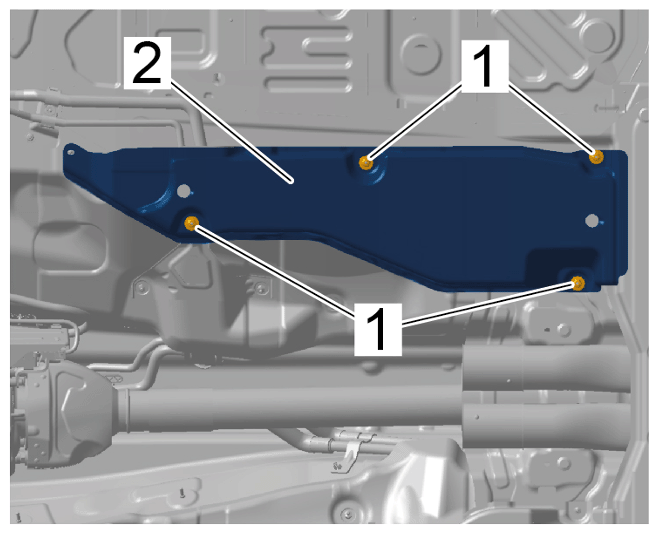

Cover for tunnel, left	Item 1	Tightening torque	2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Underbody cover, left
