Subsequent Work

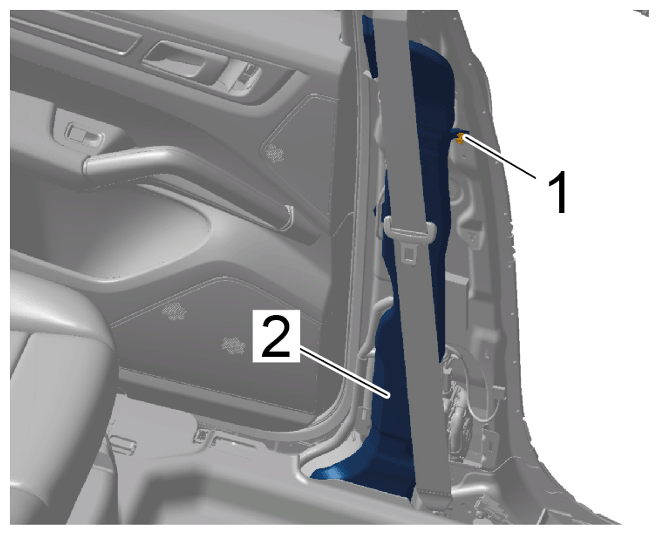

Install B-pillar air guide -2- and clip in expansion rivet -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

B-pillar air guide

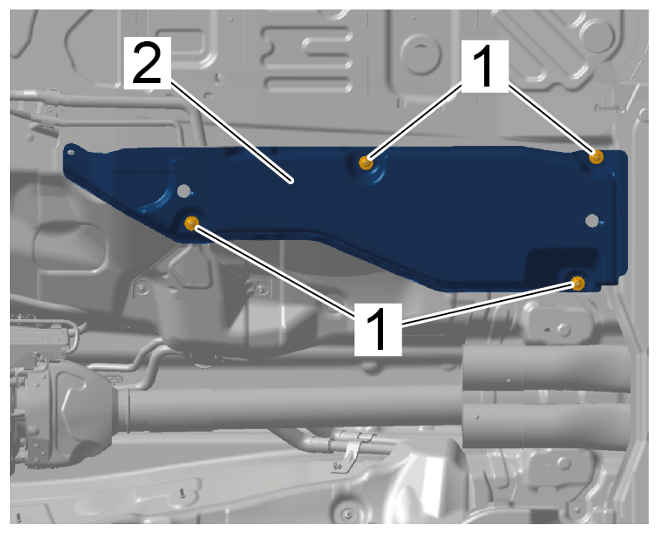

Install heat shield -2- and tighten speed nuts -1- to > Tightening torque 2.5 Nm (1.75 ftlb.) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield

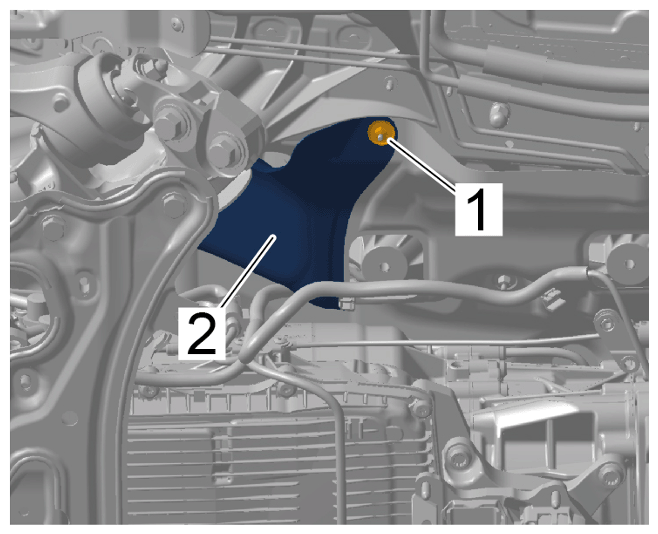

Install heat shield -2- at the front and tighten speed nuts -1- to > Tightening torque 2.5 Nm (1.75 ftlb.) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield

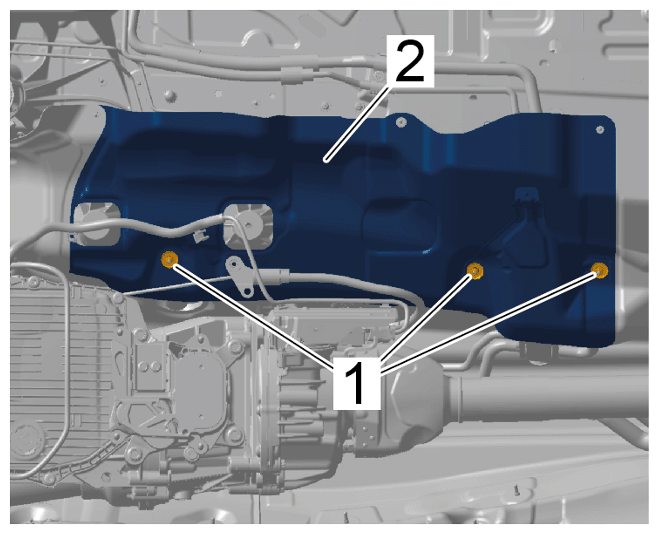

Install underbody panelling -2- and tighten fastening nuts -1- to > Tightening torque 2 Nm (1.5 ftlb.) .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Underbody panelling
Install transmission support.
> 373819 REMOVING AND INSTALLING TRANSMISSION SUPPORT
Install the Gateway control unit.
> 903519 REMOVING AND INSTALLING THE GATEWAY CONTROL UNIT
Install lower part of center console.
> 68171900 REMOVING AND INSTALLING CENTRE CONSOLE
Install headliner.
> 708419 REMOVING AND INSTALLING HEADLINER

Information
- Do not remove belt fitting.
Install lower part of B-pillar trim panel at the left.
> 70671903 REMOVING AND INSTALLING B-PILLAR TRIM PANEL (LOWER PART)
Fit carpet at the front left.
> 704119 REMOVING AND INSTALLING FRONT FLOOR COVERING
Secure battery ground strap.
> 978509 LOOSENING AND SECURING GROUND STRAP FOR BATTERY
