Removing Main Wire Harness In Passenger Compartment At The Left

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. → Switch off electrical loads before disconnecting or removing them.

NOTIFICATION

Incorrect handling of main wire harness

• Risk of damage to lines
  1. → The main wire harness contains all airbag lines, antenna lines and optical waveguides.
  2. → The main wire harness must not be separated and is always replaced as a complete wire harness when carrying out extensive repairs.
  3. → If individual lines are damaged, shut off these lines and install new lines. Lay the new lines along the main wire harness and secure them to the main wire harness

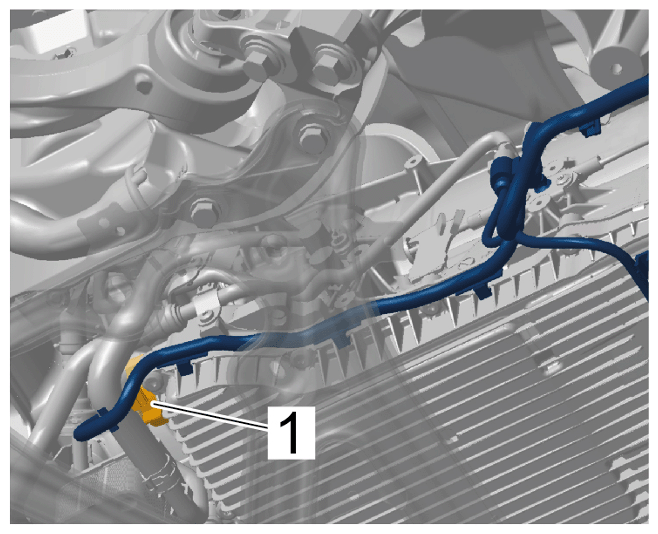

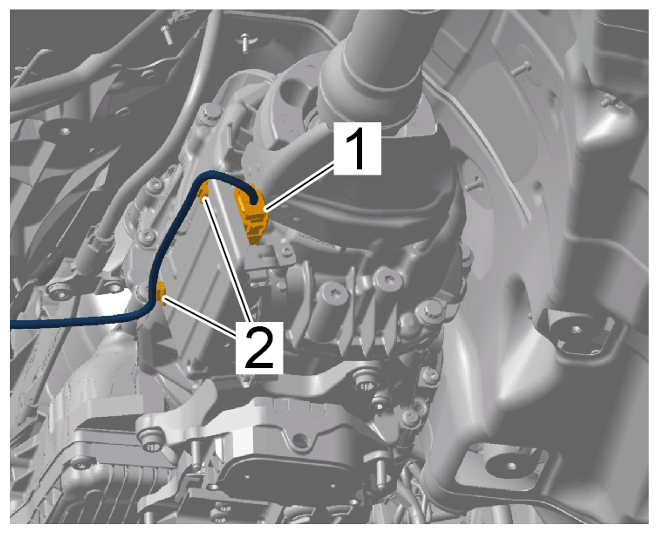

1. Release and disconnect electric plug connection -1-  on transfer gear servo motor.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

2. Unclip line bracket -2-  for transfer gear servo motor.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Line bracket

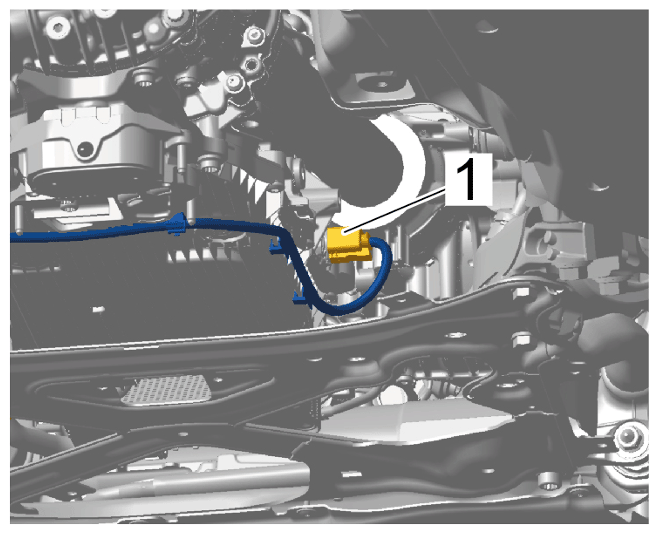

3. Release and disconnect electric plug connection -1-  on the transmission.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

4. Release and disconnect electric plug connection -1-  on the transmission control unit.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

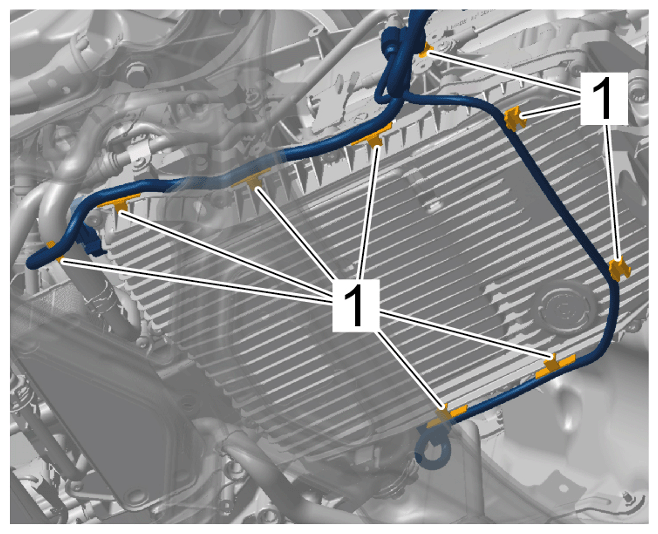

5. Unclip line bracket -1-  on the transmission.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Line bracket

6. Release and disconnect electric plug connection on rear door.

   > 585119 REMOVING AND INSTALLING REAR DOOR

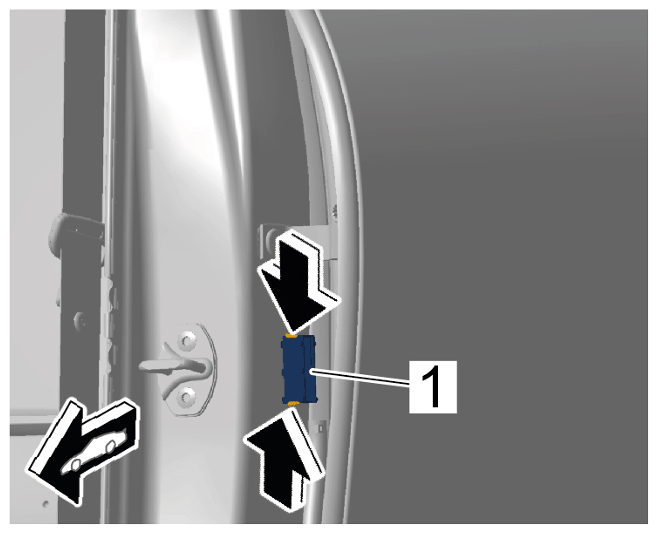

7. Disconnect electric line for door electrics.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

   1. 7.1  Press locking lugs together -Arrows-  and disengage mounting housing -1-  .
   2. 7.2  Pull electric line out of the B-pillar.
8. Release and disconnect electric plug connections on belt retractor.

   > 692419 REMOVING AND INSTALLING FRONT SEAT-BELT BUCKLE

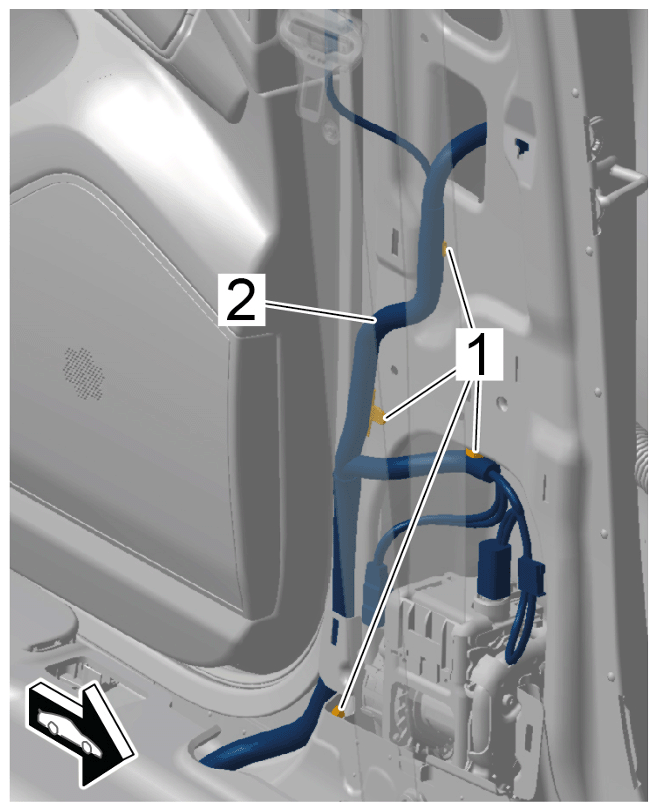

9. Unclip line bracket -1-  for section of line at the B-pillar -2-  and set section of line at the B-pillar -2-  down in the passenger compartment.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Section of line at B-pillar

10. Lift up carpet at the rear left -1-  until the electric wire harness is accessible.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Carpet

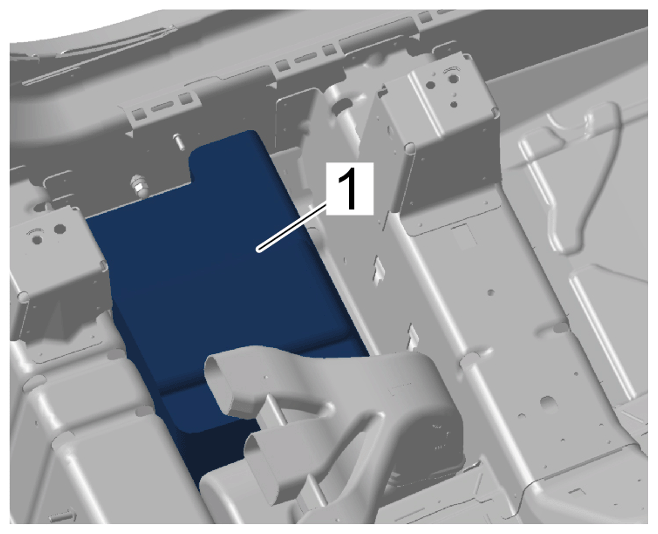

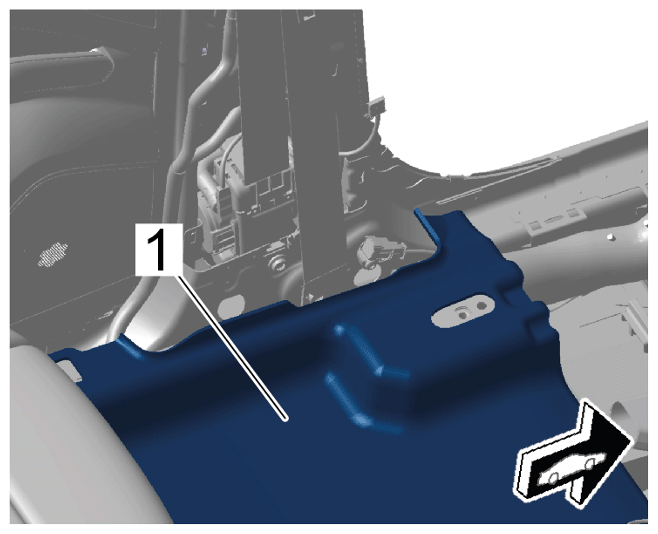

11. Remove rear sound absorbers -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rear sound absorber

12. Release and disconnect electric plug connection or PASM control unit -1-  .

    > 431619 REMOVING AND INSTALLING PASM CONTROL UNIT

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for PASM control unit

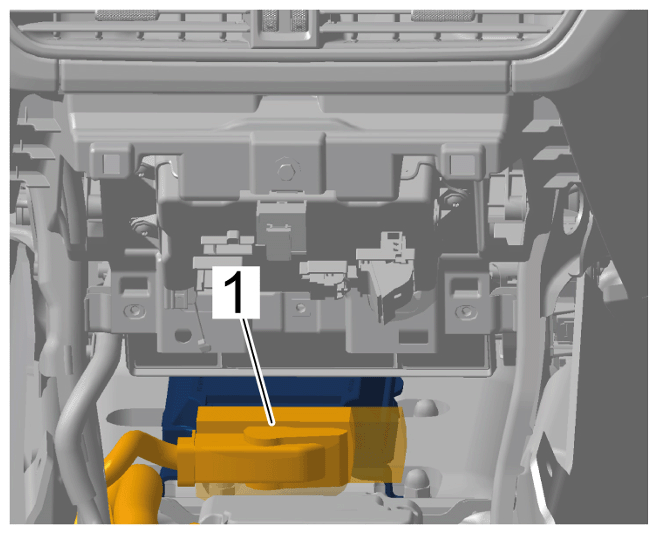

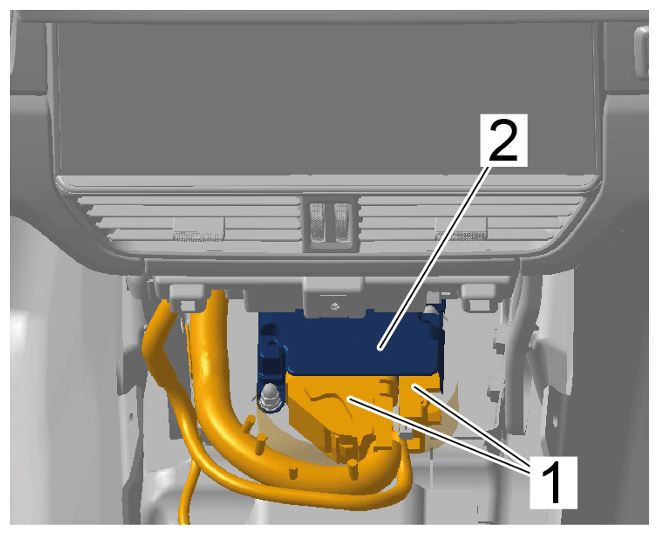

13. Release and disconnect electric plug connection -1-  for airbag triggering unit -2-  .

    > 695355 REPLACING AIRBAG TRIGGERING UNIT

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Airbag triggering unit

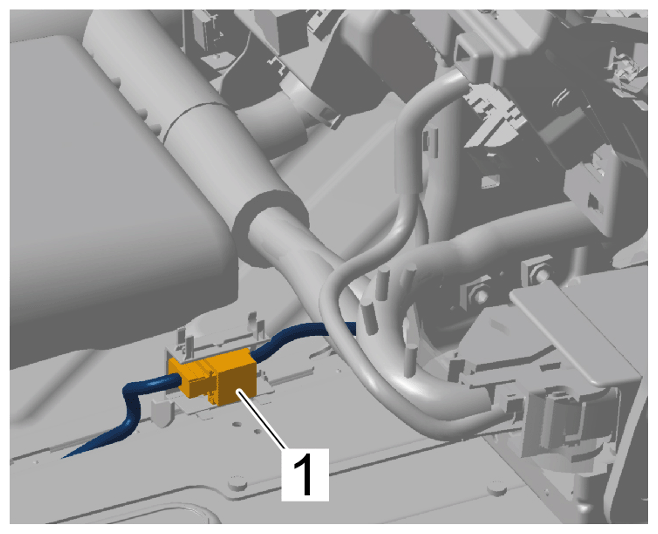

14. Unclip electric plug connection at connection point on center console -1-  from the holder.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

15. Release and disconnect electric plug connection at connection point on center console -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

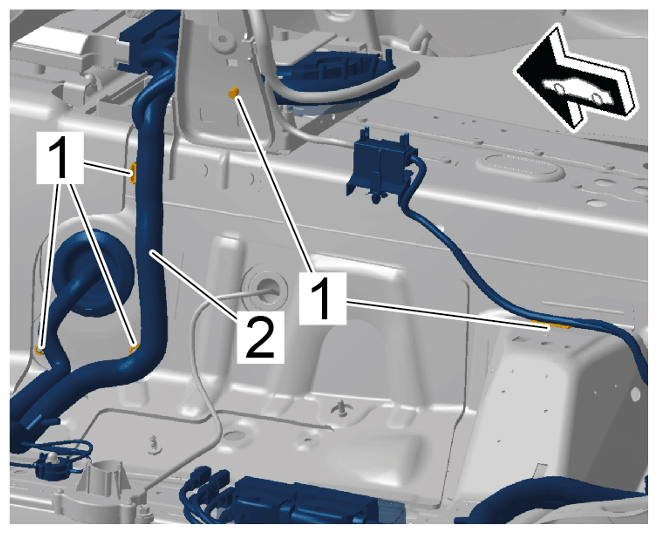

16. Unclip line bracket -1-  for section of line at the center tunnel and set section of line at the center tunnel -2-  down in the passenger compartment.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line at center tunnel

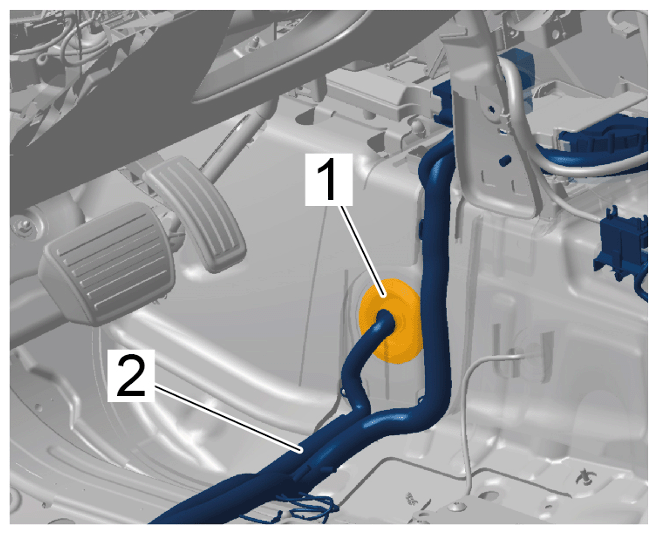

17. Press sleeve -1-  in center tunnel at the front inwards.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sleeve

18. Guide transmission wire harness -2-  into the passenger compartment.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Transmission wire harness

19. Release and disconnect electric plug connection for control unit for driver assistance systems.

    > 910219 REMOVING AND INSTALLING CENTRAL CONTROL UNIT FOR ASSISTANCE SYSTEMS

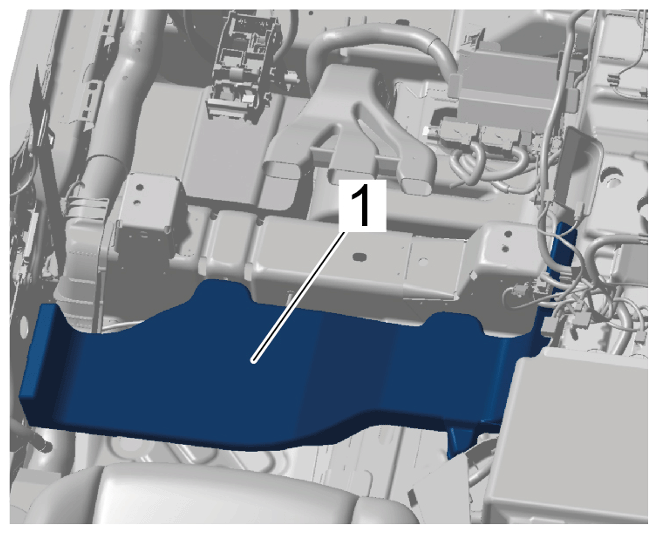

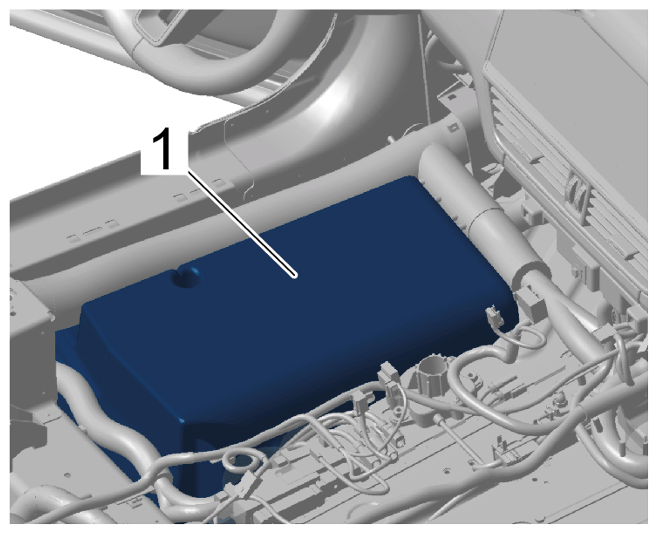

20. Remove front sound absorbers -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front sound absorber

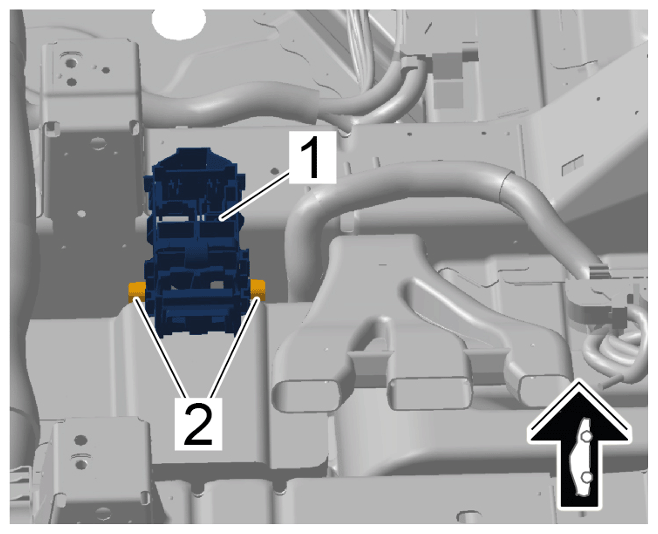

21. Unclip line bracket at connection point for driver seat -1- (-2-)  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line bracket at connection point for driver seat

22. Remove left sound absorber -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Left sound absorber

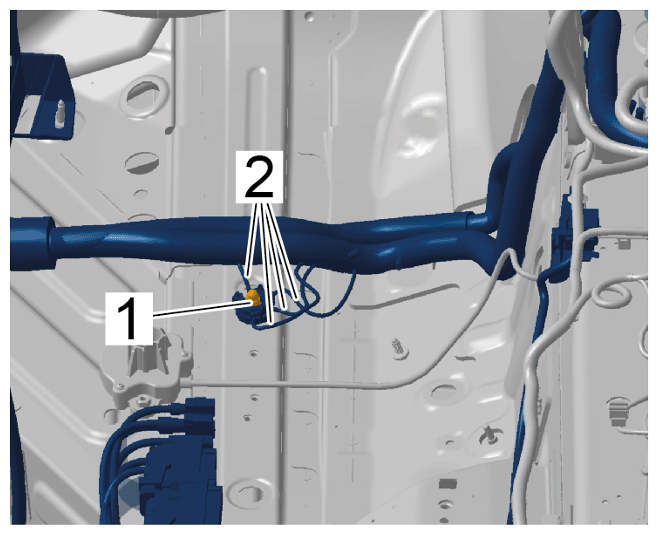

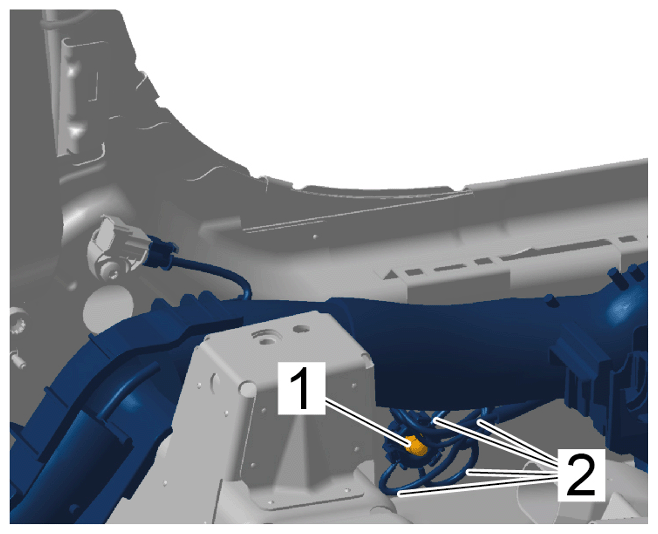

23. Unscrew fastening nut -1-  on ground point at the bottom of the left B-pillar and remove ground lines -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening nut

24. Release and disconnect electric plug connection for airbag sensor on left B-pillar.

    > 695119 REMOVING AND INSTALLING AIRBAG SENSOR

25. Unscrew fastening nut -1-  on ground point at the bottom of the driver's footwell and remove ground lines -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening nut

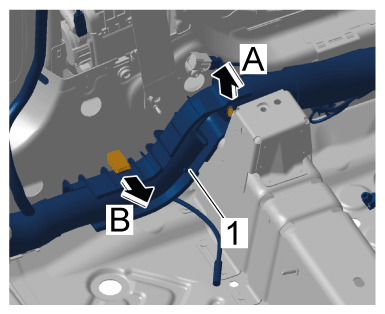

26. Unclip cable duct -1-  on inner sill at the left -arrow A-  and -arrow B-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable duct

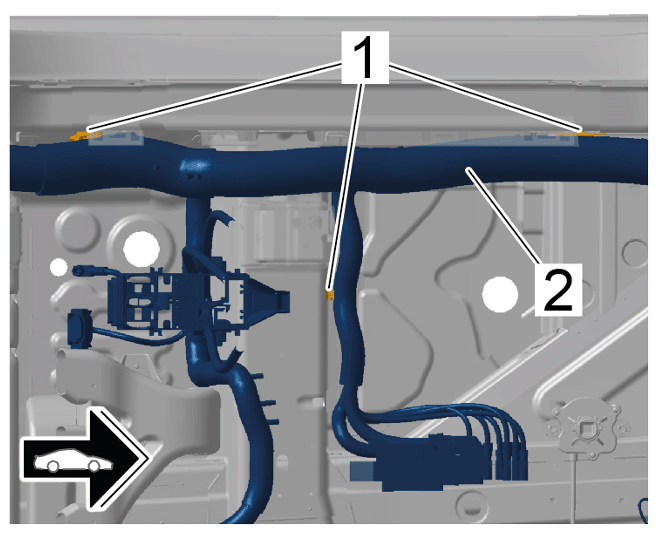

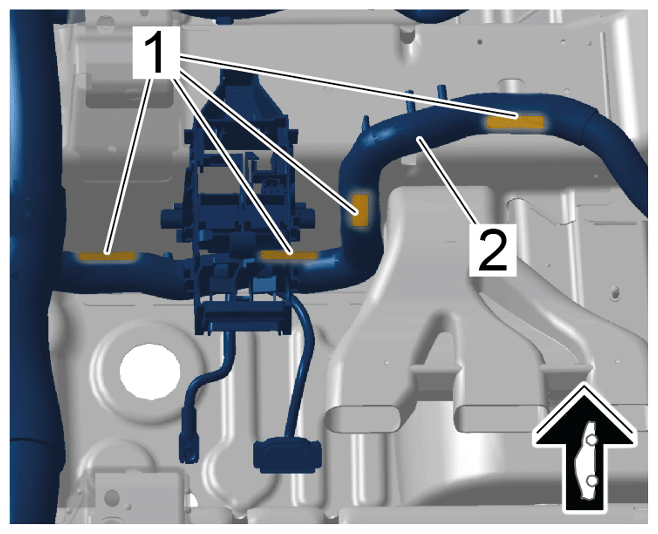

27. Unclip line bracket -1-  and remove electric wire harness -2-  from the seat cross member.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness

28. Unclip line bracket -1-  and remove electric wire harness -2-  from the driver's door sill.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness

29. Loosen fuse box in the footwell.

    > 978409 LOOSENING AND SECURING FUSE BOX IN FRONT LEFT FOOTWELL

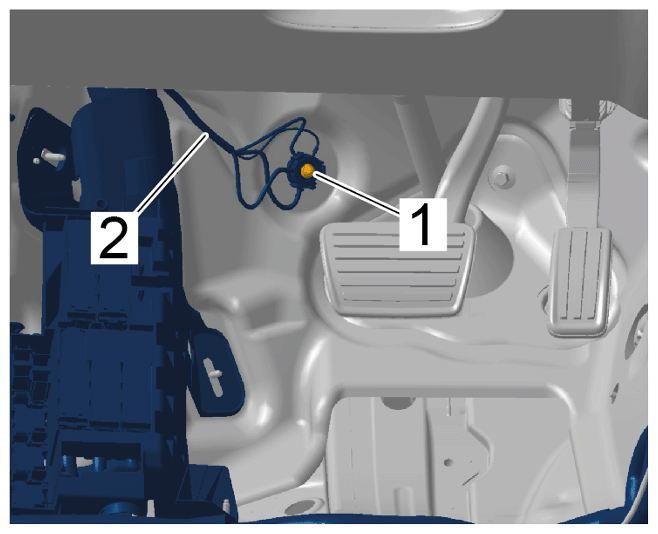

30. Unscrew fastening nut -1-  on ground point at the firewall in the left footwell and remove ground lines -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening nut

31. Release and disconnect electric plug connection for front left door.

    > 575119 REMOVING AND INSTALLING DOOR

32. Loosen electric wire harness for door electrics at the left.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Locking lug

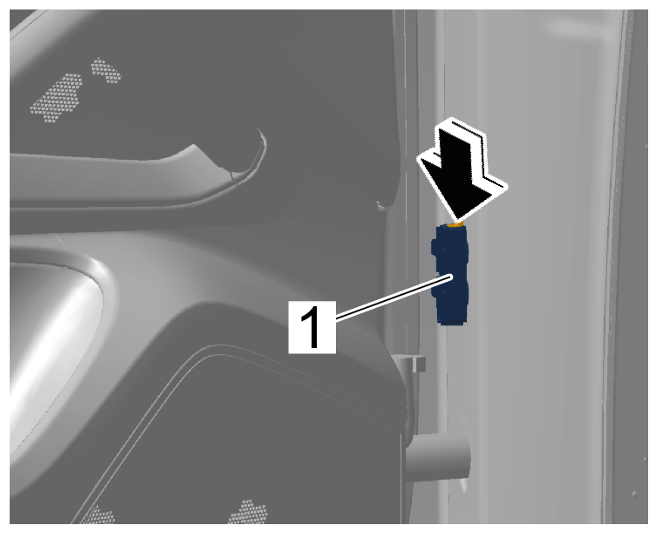

    1. 32.1  Press locking lug -Arrow-  and disengage mounting housing -1-  .
    2. 32.2  Pull electric wire harness out of the left A-pillar.
33. Release and disconnect electric plug connection for control unit for panoramic roof.

    > 606519 REMOVING AND INSTALLING CONTROL UNIT FOR SLIDING ROOF

34. Release and disconnect electric plug connection for camera.

    > 963819 REMOVING AND INSTALLING FRONT CAMERA

35. Release and disconnect electric plug connection for GPS antenna.

    > 911319 REMOVING AND INSTALLING GPS ANTENNA

36. Release and disconnect electric plug connection for WiFi antenna.

    > 918519 REMOVING AND INSTALLING WIFI ANTENNA

37. Release and disconnect electric plug connection for rain sensor.

    > 921219 REMOVING AND INSTALLING RAIN/WEATHER SENSOR

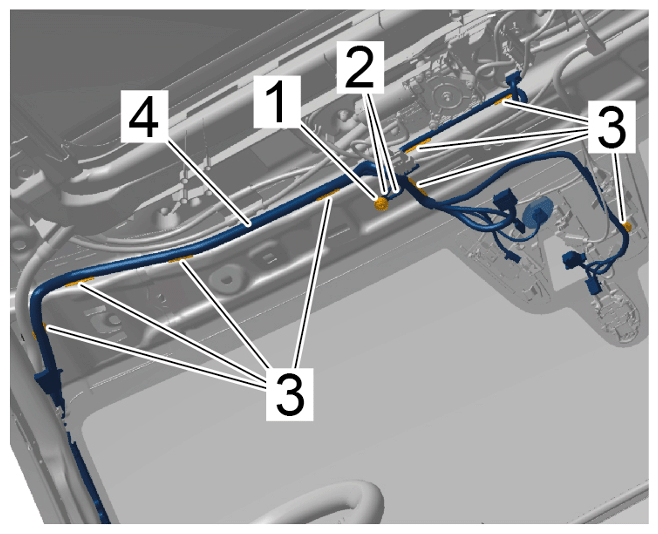

38. Unscrew fastening screw -1-  on ground point at the front of the roof and remove ground lines -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screw

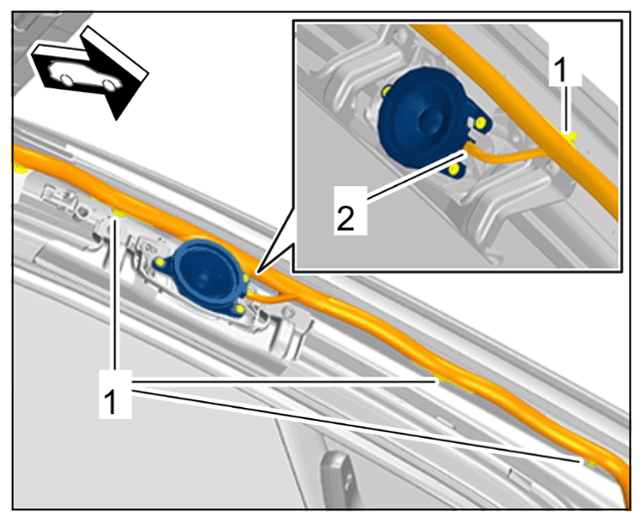

39. Unclip line bracket -3-  and remove electric wire harness -4-  from the roof.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness

40. Only for Coupe:  Loosen electric wire harness on left A-pillar.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness on left A-pillar

    1. 40.1  Release and unplug electric plug connection -2-  .
    2. 40.2  Unclip clips -1-  .

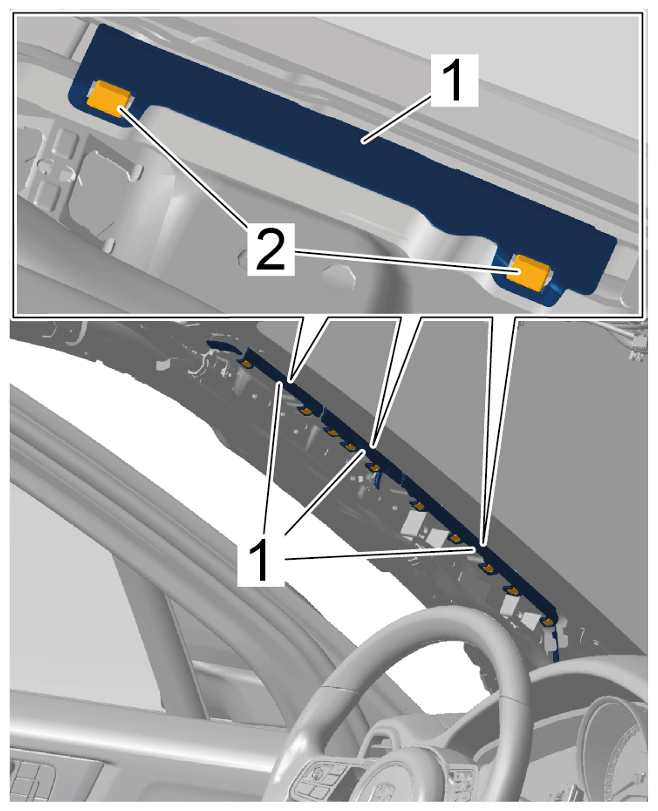

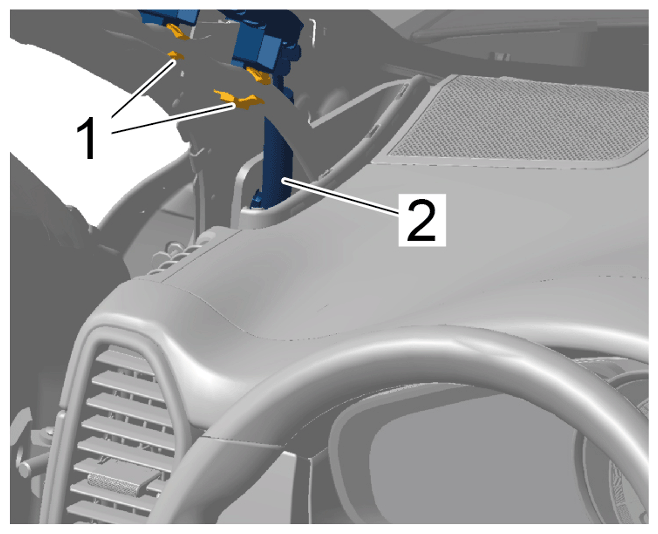

41. Only for basic model:  Unclip cable duct -1-  in the A-pillar -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable duct

42. Only for basic model:  Remove wire harness for roof from cable duct -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable duct

43. Unclip line bracket -1-  and remove electric wire harness -2-  at the dashboard.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable duct

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness

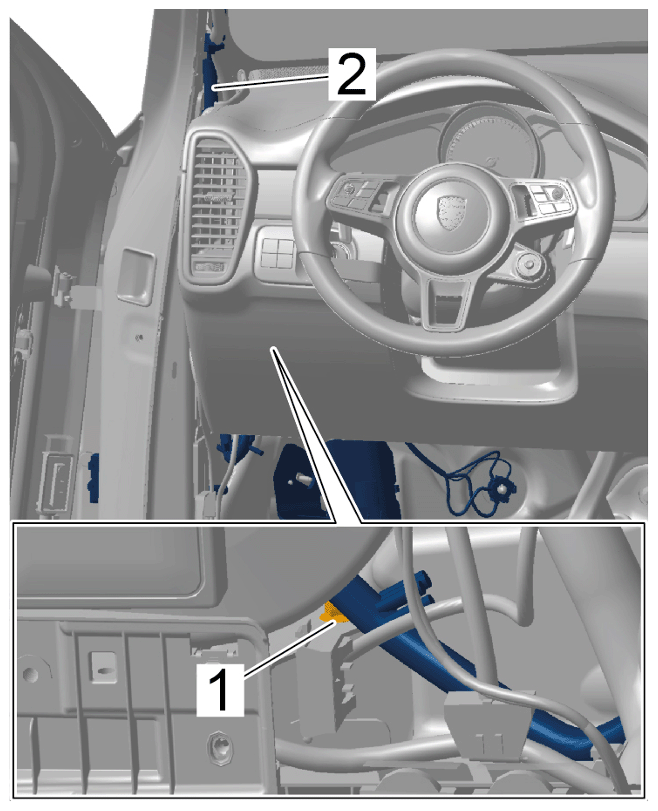

44. Unclip line bracket -1-  under the dashboard.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line bracket under dashboard

45. Route electric wire harness for roof -2-  past the dashboard into the footwell.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric wire harness
