Technical Values

Location	Description	Type	Basic value
Fastening nut securing positive cable to potential distributor	Item 5	Tightening torque	9 Nm (6.5 ftlb.)

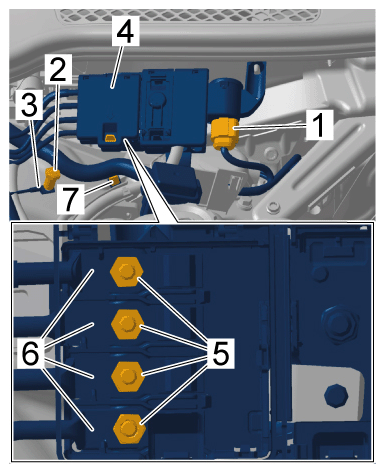

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nuts securing positive cables to potential distributor
Fastening nut for ground point on right spring strut mount	Item 2	Tightening torque	9 Nm (6.5 ftlb.)

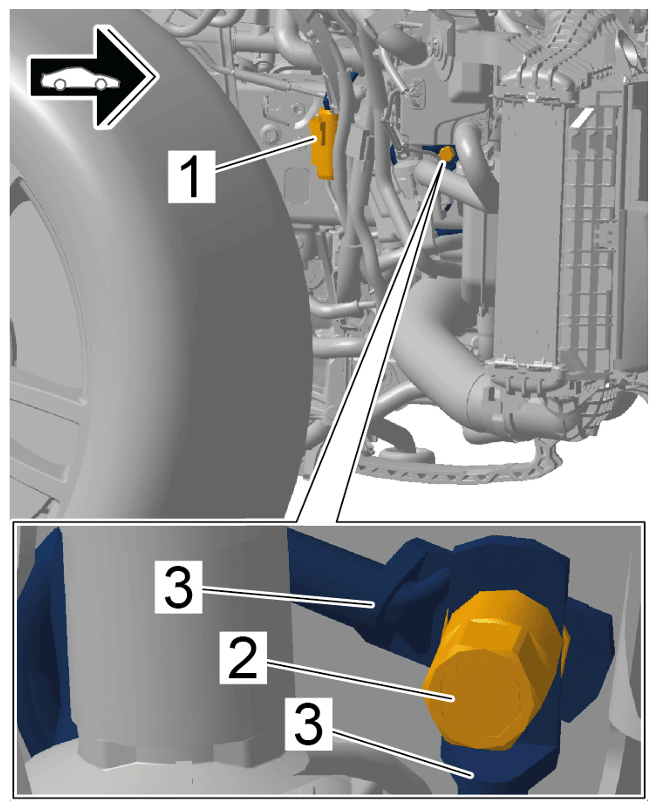

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nut for ground point on right spring strut mount
Fastening nut for ground point on front right longitudinal member	Item 2	Tightening torque	9 Nm (6.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric plug connection for battery wire harness
Fastening nut for ground point on right longitudinal member, top	Item 1	Tightening torque	9 Nm (6.5 ftlb.)

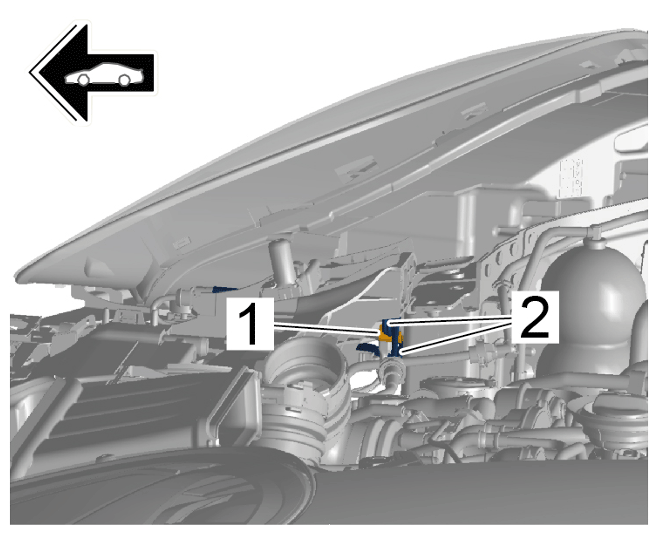

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground point for right longitudinal member, top
Air line to front air-spring strut	Union nut, M8 (4-mm air connection)	Tightening torque	3 Nm (2 ftlb.)
Coolant reservoir	M6	Tightening torque	9 Nm (6.5 ftlb.)
