Loosening Main Wire Harness In Engine Compartment At The Right

NOTIFICATION

Incorrect handling of main wire harness

• Risk of damage to lines
  1. → The main wire harness contains all airbag lines, antenna lines and optical waveguides.
  2. → The main wire harness must not be separated and is always replaced as a complete wire harness when carrying out extensive repairs.
  3. → If individual lines are damaged, shut off these lines and install new lines. Lay the new lines along the main wire harness and secure them to the main wire harness.

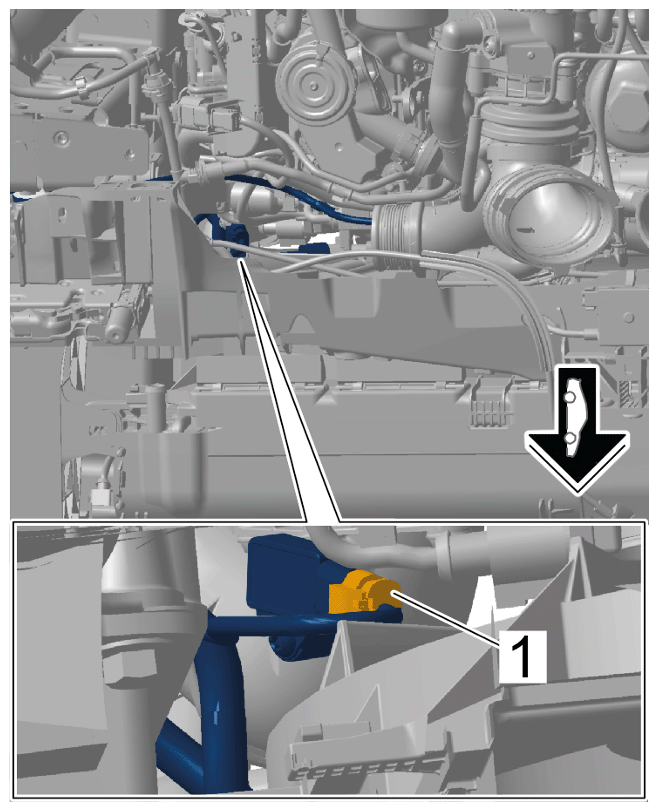

1. Only for V8 biturbo:

   Release and disconnect electric plug connection for throttle valve pressure sensor -1-  .

   > 244220 REMOVING AND INSTALLING THROTTLE HOUSING (V8 BITURBO)

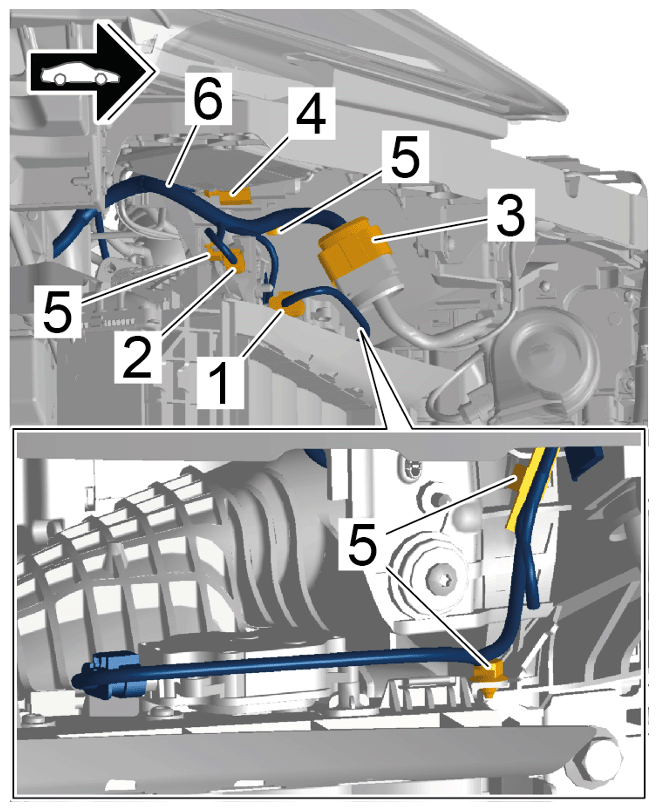

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

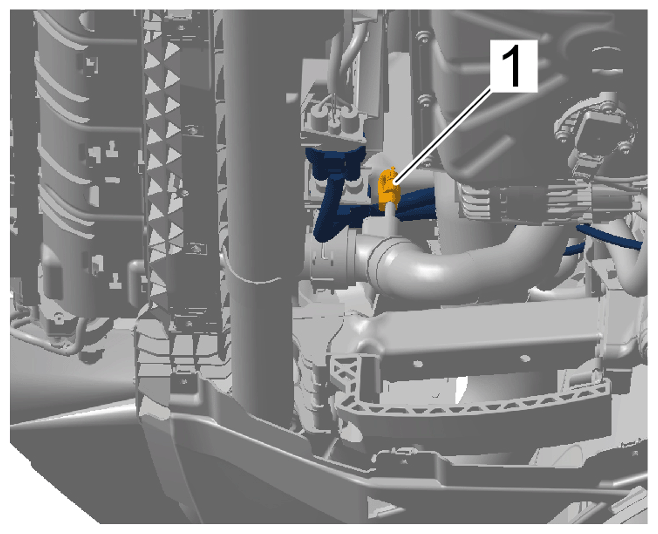

   Electric plug connection for throttle valve pressure sensor

2. Only for V6 monoturbo:

   Release and disconnect electric plug connection for coolant temperature sensor -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for coolant temperature sensor

3. Release and disconnect electric plug connection for right engine mount -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

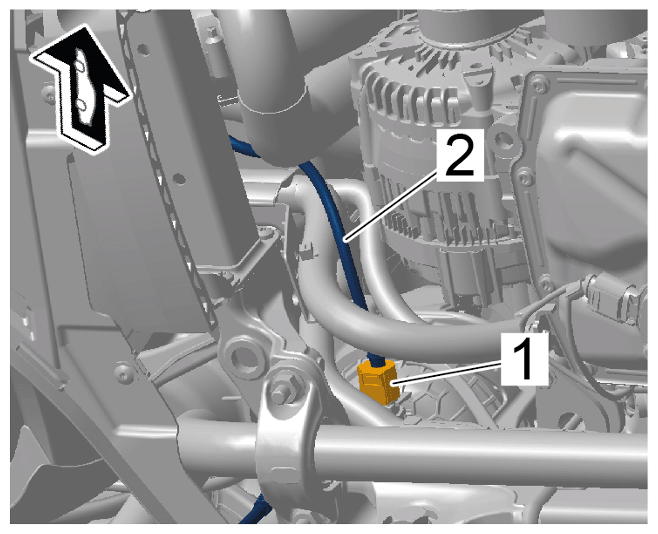

   Electric plug connection for right engine mount

4. Guide section of line for right engine mount -2-  into right wheel housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

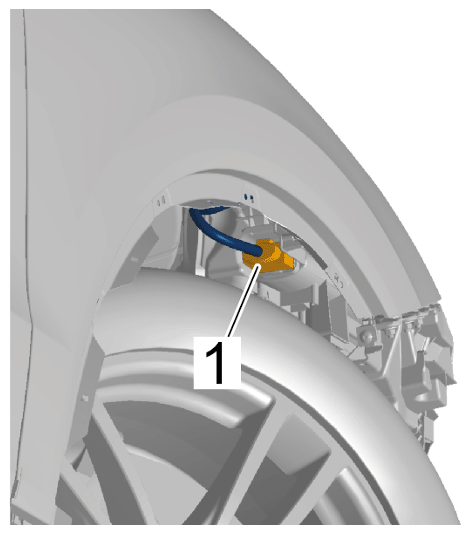

   Section of line for right engine mount

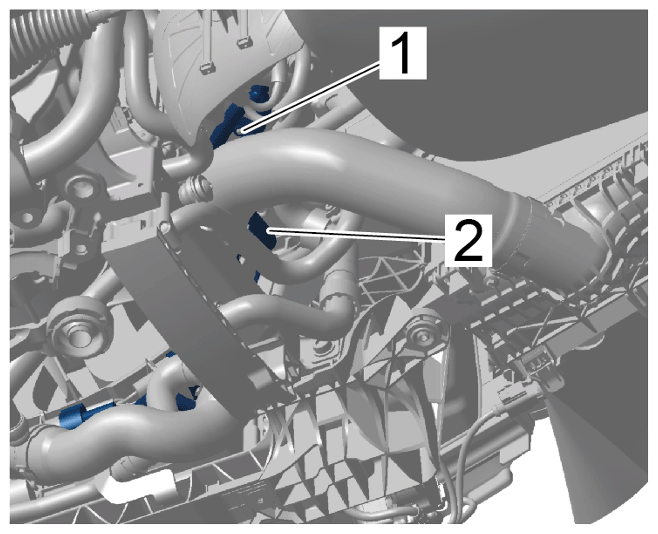

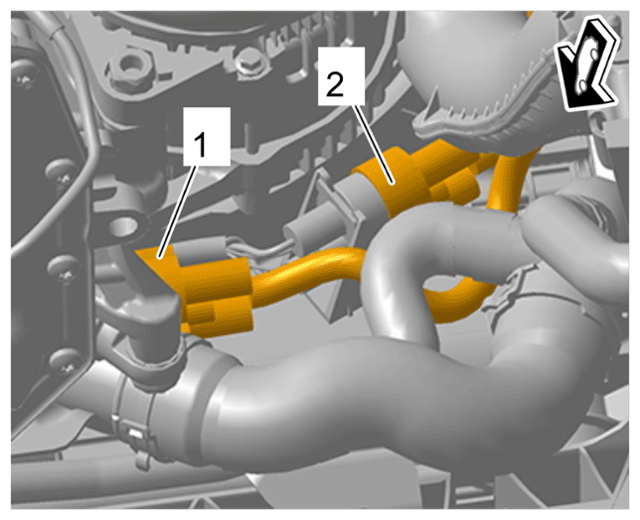

5. Release and disconnect electric plug connections for radiator fans -1 and 2-  .

   > 190819 REMOVING AND INSTALLING ELECTRIC FAN

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connections for radiator fans

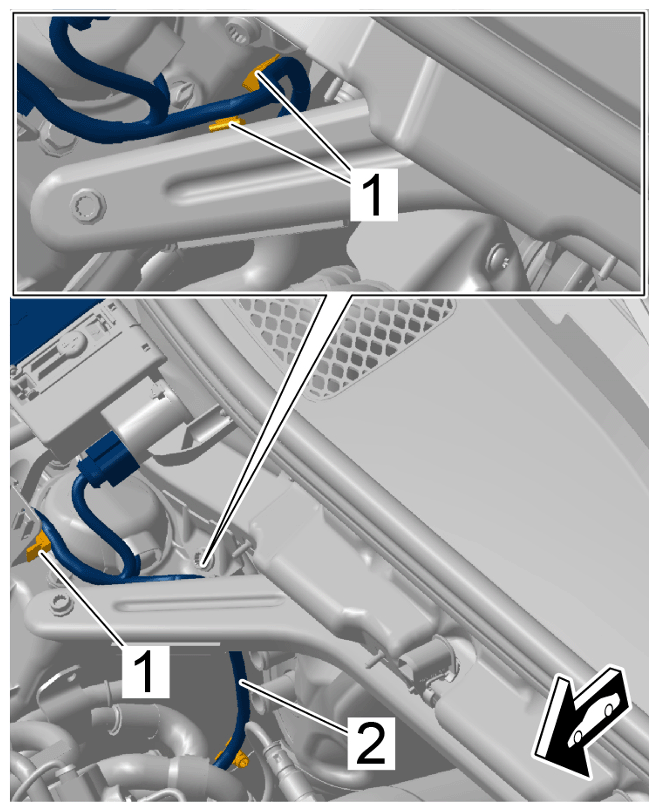

6. Unclip line bracket -1-  and leave section of line for electric fan -2-  hanging down.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Section of line for electric fan

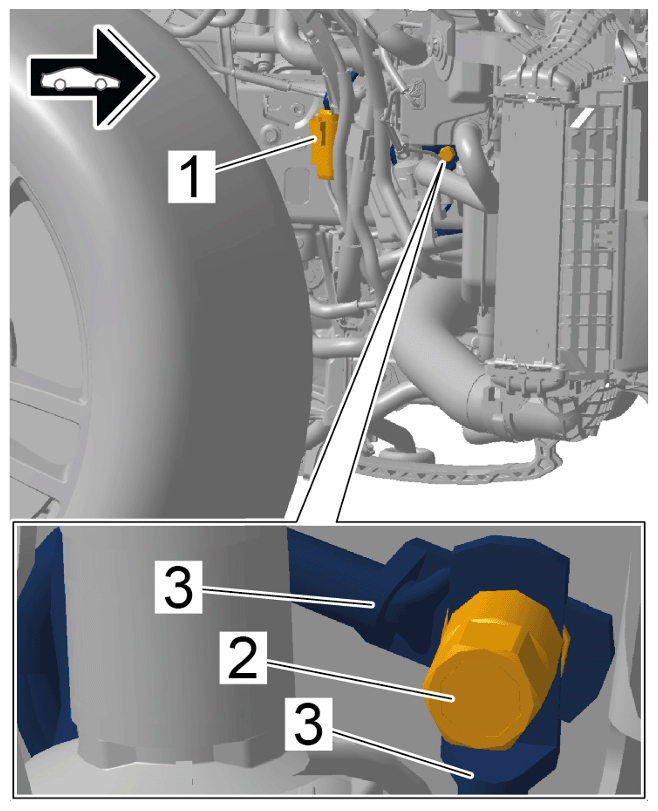

7. Release and disconnect electric plug connection for battery wire harness -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for battery wire harness

8. Unscrew fastening nut -2-  from ground point for the front right longitudinal member and remove ground lines -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ground point for front right longitudinal member

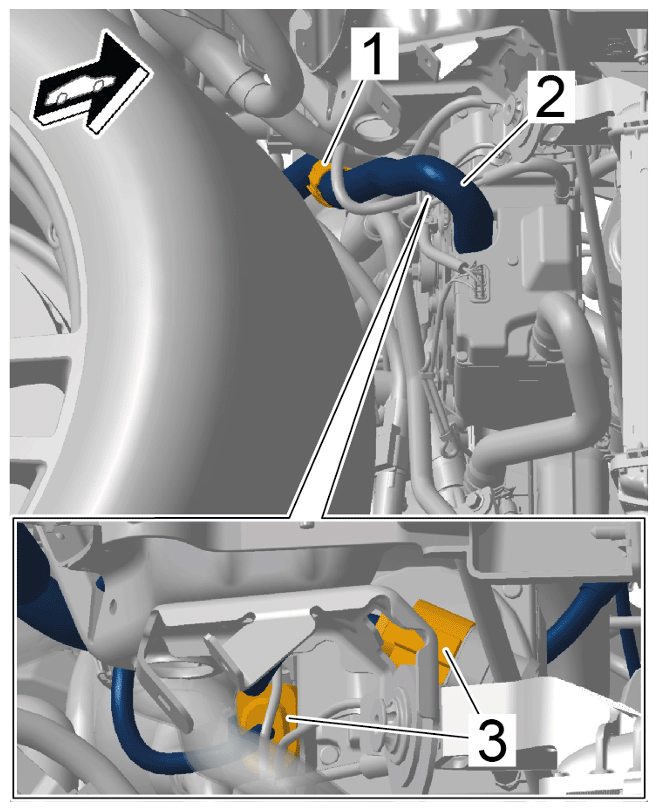

9. Open hose holder -1-  and press heating hose for auxiliary heater -2-  aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Heating hose for auxiliary heater

10. Release and disconnect electric plug connections for heater -3-  .

    > 822019 REMOVING AND INSTALLING HEATER

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections on heater

11. Release and disconnect electric plug connection for servo motor for cooling-air flaps on charge-air cooler -1-  .

    > 214819 REMOVING AND INSTALLING COOLING-AIR FLAPS FOR CHARGE-AIR COOLER

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for servo motor for cooling-air flaps on charge-air cooler

12. Release and disconnect electric plug connection for airbag sensor at the right lock carrier -2-  .

    > 695119 REMOVING AND INSTALLING AIRBAG SENSOR

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for airbag sensor at right lock carrier

13. Release and disconnect electric plug connection at connection point for lock carrier -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection at connection point for lock carrier

14. Release and disconnect electric plug connection for front lock lower part at the bottom -4-  .

    > 551719 REMOVING AND INSTALLING FRONT LOCK LOWER PART

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for front lock lower part, bottom

15. Unclip line bracket -5-  and guide section of line for lock carrier -6-  into the engine compartment.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for lock carrier

16. Release and disconnect electric plug connection for front lock lower part at the top -1-  .

    > 551719 REMOVING AND INSTALLING FRONT LOCK LOWER PART

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for front lock lower part, top right

17. Unscrew fastening nut -1-  at ground point for right longitudinal member at the top and remove ground lines -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Ground point on right longitudinal member top

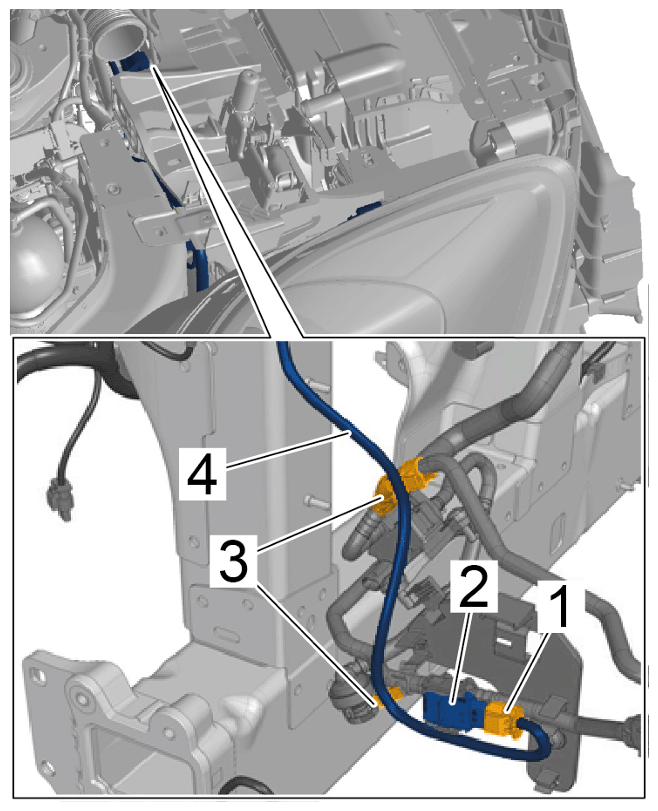

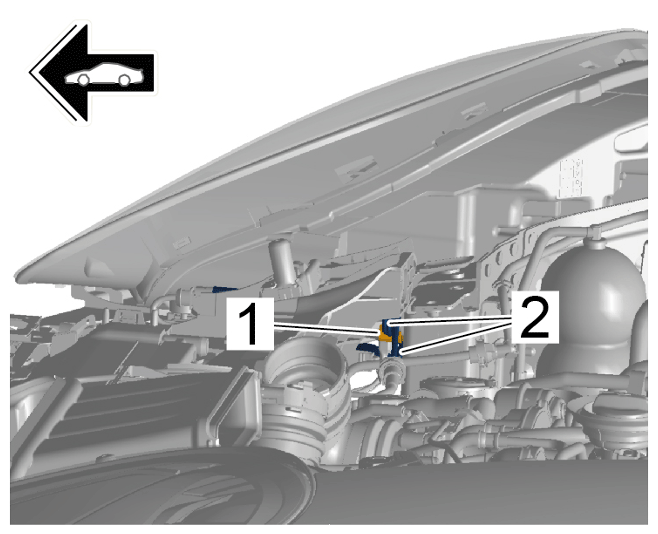

18. Release and disconnect electric plug connection -1-  from tank ventilator pressure sensor -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Tank ventilation pressure sensor

19. Unclip line bracket -3-  and guide section of line for tank ventilation pressure sensor -4-  into the engine compartment.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for tank ventilation pressure sensor

20. Release and disconnect electric plug connection -1-  from airbag sensor on the right wing -2-  .

    > 695119 REMOVING AND INSTALLING AIRBAG SENSOR

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Airbag sensor on right wing

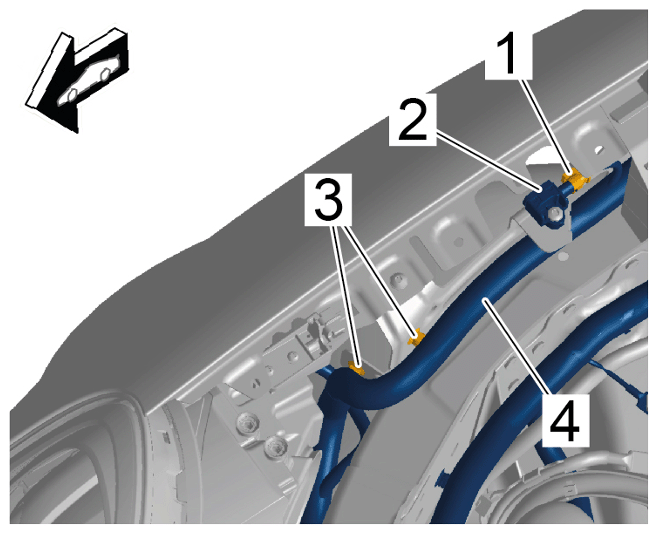

21. Unclip line bracket -3-  with section of line for airbag sensor on the right wing -4-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for airbag sensor on right wing

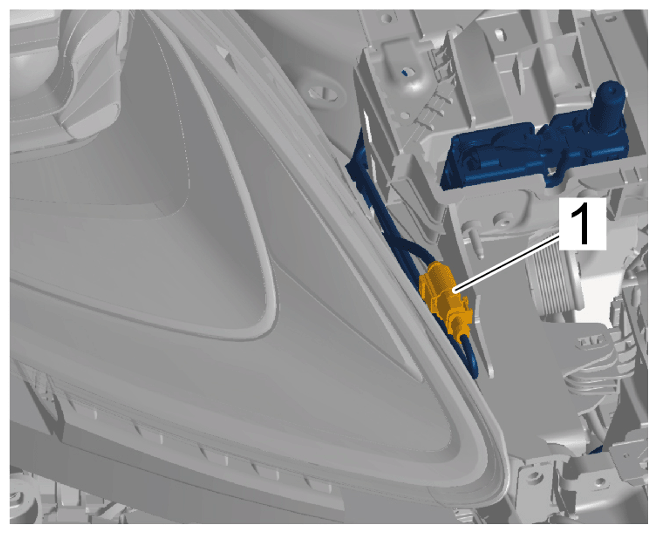

22. Release and disconnect electric plug connection for right headlight -1-  .

    > 941519 REMOVING AND INSTALLING HEADLIGHTS

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for right headlight

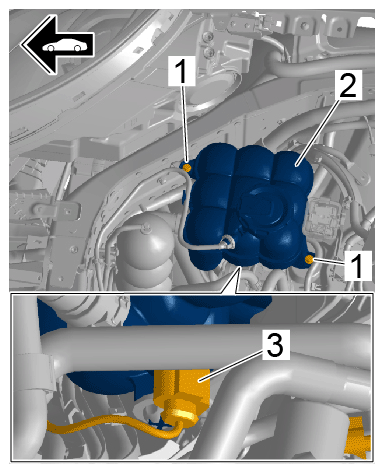

23. Unscrew fastening screws -1-  and lift up coolant reservoir -2-  .

    > 194019 REMOVING AND INSTALLING COOLANT RESERVOIR

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Coolant reservoir

24. Release and disconnect electric plug connection for coolant reservoir -3-  .

    > 194019 REMOVING AND INSTALLING COOLANT RESERVOIR

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for coolant reservoir

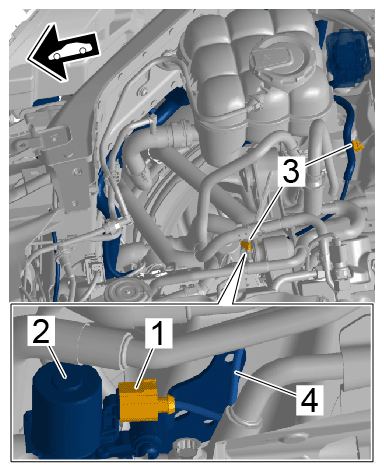

25. Release and disconnect electric plug connection -1-  from solenoid valve for auxiliary heating -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection on solenoid valve for auxiliary heating

26. Unclip line bracket -3-  and guide section of line for solenoid valve for auxiliary heating -4-  into the engine compartment.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for solenoid valve for auxiliary heating

27. Release and disconnect electric plug connection for airbag sensor on front right wheel bearing housing -1-  .

    > 695119 REMOVING AND INSTALLING AIRBAG SENSOR

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Airbag sensor on front right wheel bearing housing

28. Pull electric plug connection for front right brake pad wear sensor -2-  out of the holder and release and disconnect it.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Brake pad wear sensor, front right

29. Pull line bracket -3-  with section of line for the chassis at the right -4-  out of the holders.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for chassis, right

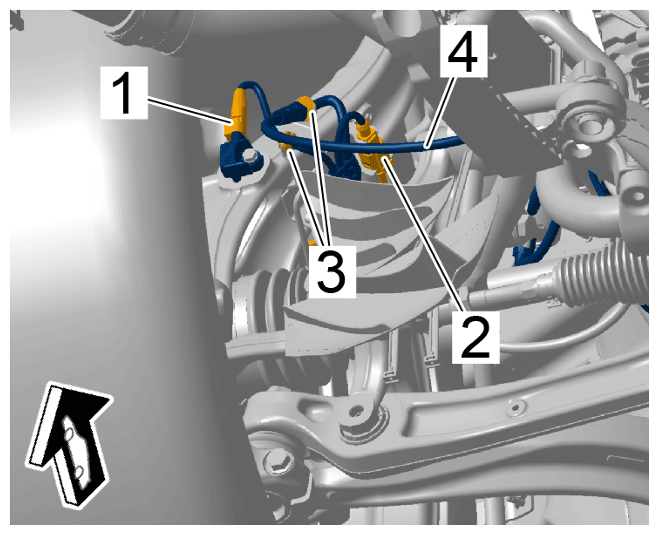

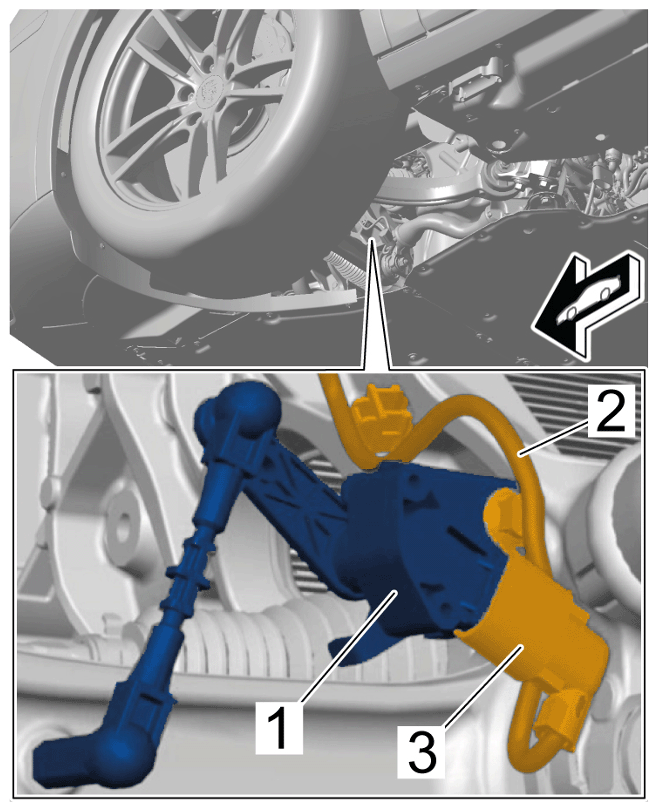

30. Release and disconnect electric plug connection -3-  from angle sensor for headlight beam adjustment (HBA) -1-  .

    > 947819 REMOVING AND INSTALLING FRONT ANGLE SENSOR FOR HEADLIGHT BEAM ADJUSTMENT (HBA)

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for angle sensor for headlight beam adjustment (HBA)

31. Unclip electric line for front angle sensor for headlight beam adjustment (HBA) -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric line for front angle sensor for headlight beam adjustment (HBA)

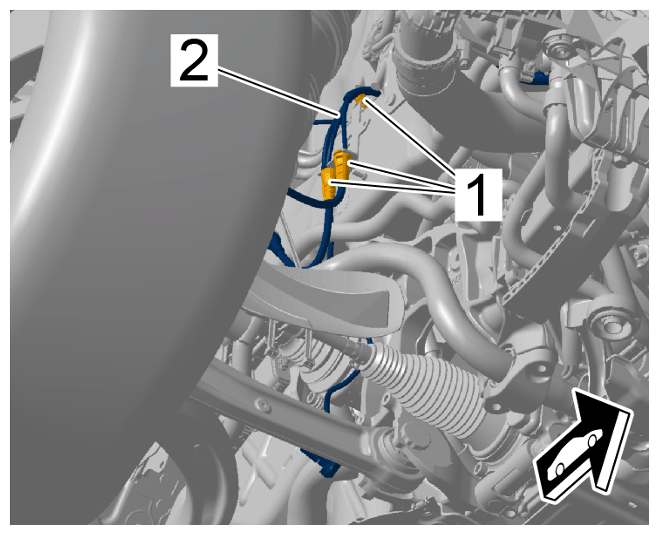

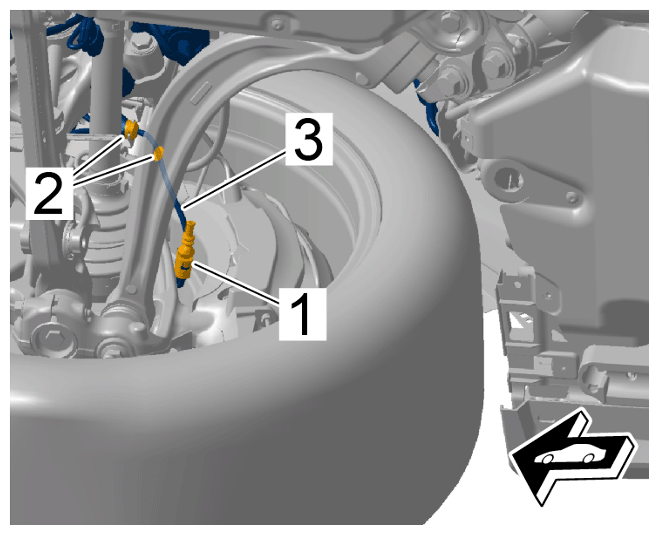

32. Release and disconnect electric plug connection for front right speed sensor -1-  .

    > 451119 REMOVING AND INSTALLING FRONT SPEED SENSOR

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for front right speed sensor

33. Pull line bracket -2-  with section of line for the chassis at the front right -3-  out of the holders.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for chassis, front right

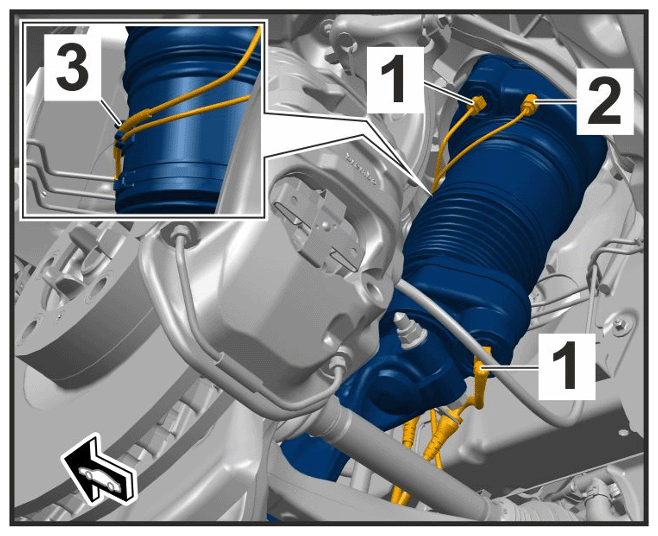

34. Disconnect lines on the front right air-spring strut.

    > 433019 REMOVING AND INSTALLING FRONT AIR-SPRING STRUT

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lines for front right air-spring strut

    1. 34.1  Release and unplug electric plug connections -1-  .

       Information

       The cutting ring -1-  and Voss threaded joint -2-  must remain on the air line -3-  .

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Air line

       CAUTION: Escaping residual air

       • Risk of eye injuries
         1. → Wear protective goggles.
    2. 34.2  Slowly unscrew Voss threaded joint on the air line -2-  and counter at the residual pressure retaining valve at the same time (the pressure retaining valve must not loosen!). Pull off air line.
    3. 34.3  Loosen lines from the brackets -3-  .
35. Pull line bracket -1-  with section of line for the chassis at the front right -2-  out of the holders.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for chassis, front right

    WARNING: Hot fluid

    • Danger of scalding
      1. → Let the fluid cool down.
      2. → Wear personal protective gear.

    Information

    Collect emerging coolant using a suitable container and close off the ends of the hose and line using suitable stoppers.

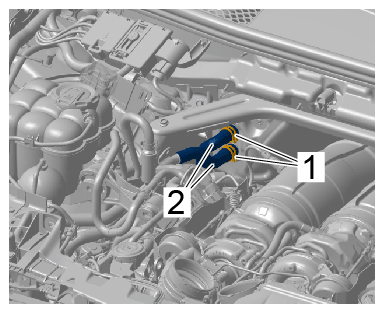

36. Open spring band clamps -1-  and pull coolant hoses -2-  off the heat exchanger.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Spring band clamps

37. Only for V6 Diesel:

    Disconnect section of line for MAF sensor -4-  .

    > Refer to the appropriate service information.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for MAF Sensor

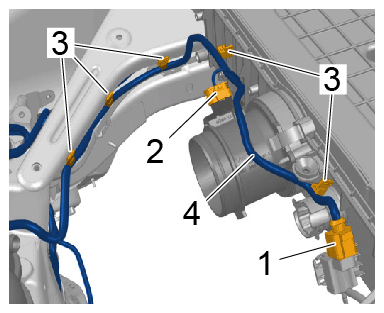

    1. 37.1  Release and disconnect electric plug connection for wastegate -1-  .
    2. 37.2  Release and disconnect electric plug connection for MAF sensor -2-  .
    3. 37.3  Unclip line bracket -3-  with section of line for the MAF sensor -4-  .
38. Unclip line bracket -1-  with section of line for chassis at the front right -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for chassis, front right

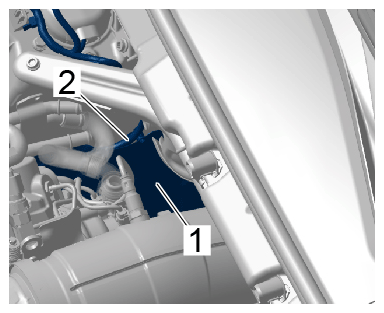

39. Press heat protection panel -1-  aside and guide section of line for chassis at the front right -2-  into the engine compartment.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat protection panel

40. Unclip line bracket -1-  from relay carrier -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Line bracket for relay carrier

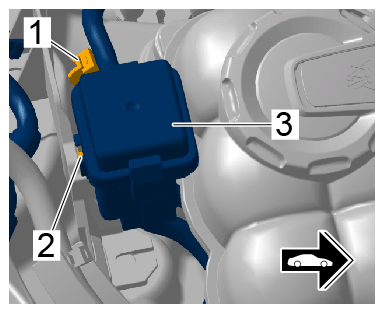

41. Release retaining lug -2-  and pull relay carrier -3-  off the holder.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Relay carrier

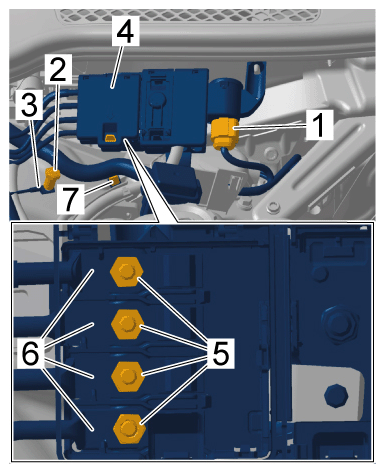

42. Release and disconnect electric plug connection for potential distributor -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for potential distributor

43. Unscrew fastening nut -2-  on ground point for the right spring strut mount and remove ground line -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Ground point for right spring strut mount

44. Open cover on potential distributor -4-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover on potential distributor

45. Unscrew fastening nuts -5-  and remove positive cables -6-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Positive cables

46. Unclip line bracket -7-  with main wire harness in engine compartment at the right.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Main wire harness in engine compartment, right
