Technical Values

Location	Description	Type	Basic value
Fastening nut for ground point on front left longitudinal member	Item 1	Tightening torque	9 Nm (6.5 ftlb.)

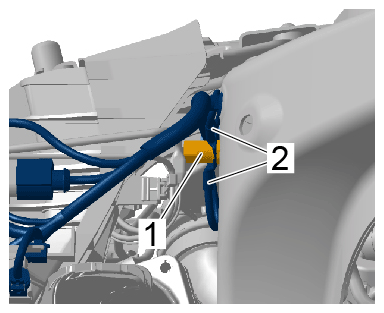

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground point for front left longitudinal member
Fastening nut for ground point on left spring strut mount	Item 1	Tightening torque	9 Nm (6.5 ftlb.)

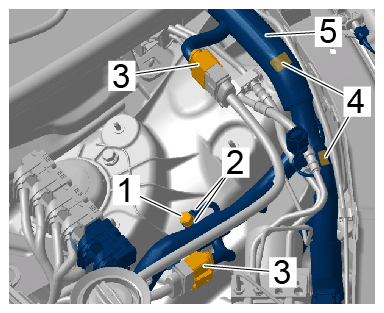

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Ground point for left spring strut mount
Fastening nut for ground point on left longitudinal member	Item 4	Tightening torque	9 Nm (6.5 ftlb.)

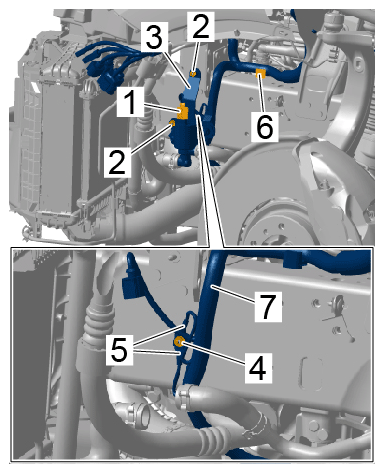

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric plug connection for transmission oil cooling valve
Fastening nuts securing holder for transmission oil cooling valve to left longitudinal member	Item 2	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Electric plug connection for transmission oil cooling valve
Air line to front air-spring strut	Union nut, M8 (4-mm air connection)	Tightening torque	3 Nm (2 ftlb.)
Nuts securing DME control unit holder to body	Item 2	Tightening torque	3 Nm (2 ftlb.)

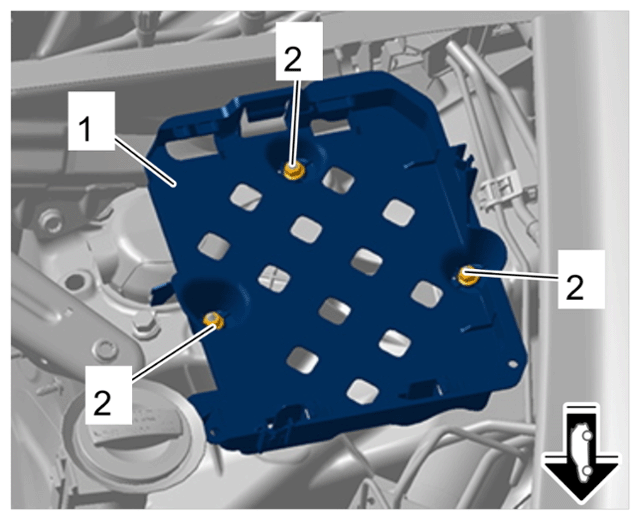

Courtesy of PORSCHE CARS NORTH AMERICA, INC. DME control unit holder
Nut on heat shield on longitudinal member, left	Item 1	Tightening torque	2.5 Nm (1.75 ftlb.)

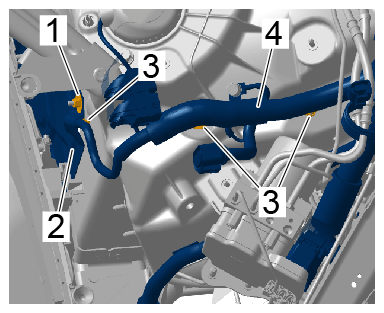

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Heat shield
