Loosening Main Wire Harness In Engine Compartment At The Left

NOTIFICATION

Incorrect handling of main wire harness

• Risk of damage to lines
  1. → The main wire harness contains all airbag lines, antenna lines and optical waveguides.
  2. → The main wire harness must not be separated and is always replaced as a complete wire harness when carrying out extensive repairs.
  3. → If individual lines are damaged, shut off these lines and install new lines. Lay the new lines along the main wire harness and secure them to the main wire harness.

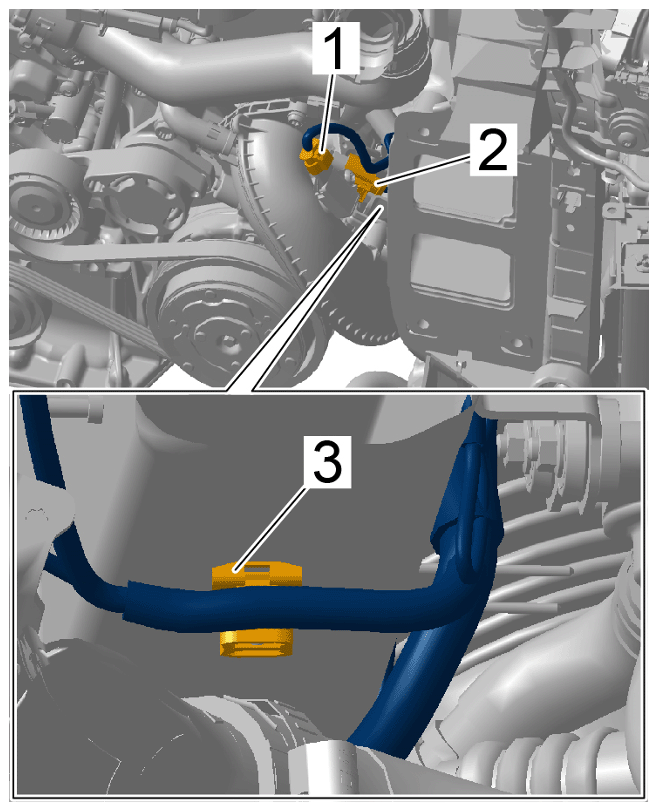

1. Only for V8 biturbo:

   Release and disconnect electric plug connection for pressure sensor -1-  from the left pressure pipe.

   > 214119 REMOVING AND INSTALLING PRESSURE PIPE (V8 BITURBO)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection on pressure sensor

2. Only for V8 biturbo:

   Release and disconnect electric plug connection for air-conditioning compressor -2-  .

   > 873419 REMOVING AND INSTALLING AIR-CONDITIONING COMPRESSOR

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for air-conditioning compressor

3. Unclip line bracket for section of line for the air-conditioning compressor -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Line bracket for section of line for air-conditioning compressor

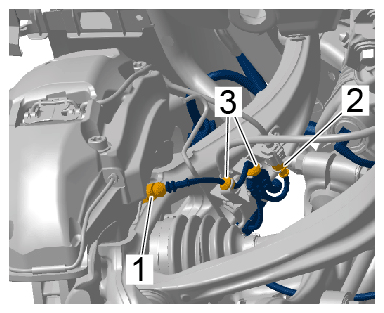

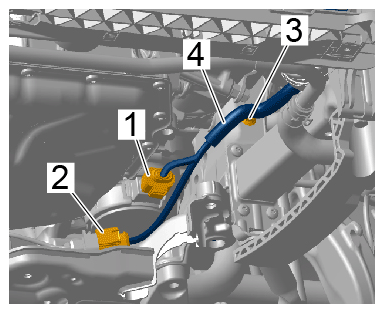

4. Release and disconnect electric plug connection for the left engine mount -1-  .

   > 103519 REMOVING AND INSTALLING ENGINE MOUNTS (V8 BITURBO)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for left engine mount

5. Release and disconnect electric plug connection for power-steering gear -2-  .

   > 489019 REMOVING AND INSTALLING POWER-STEERING GEAR

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for power-steering gear

6. Unclip line bracket -3-  with section of line for the left engine mount -4-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Section of line for left engine mount

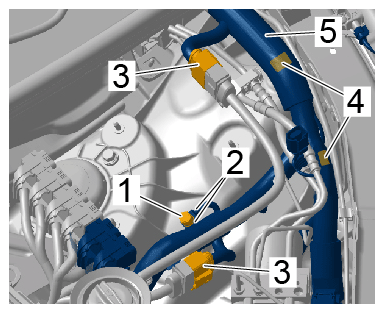

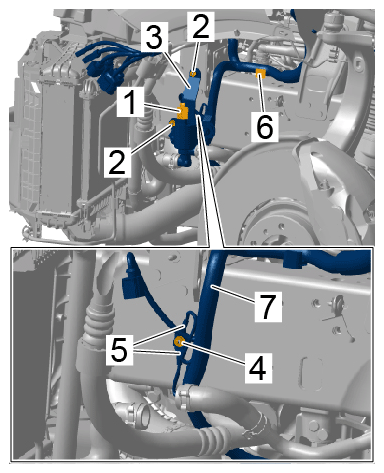

7. Release and disconnect electric plug connection for transmission oil cooling valve -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for transmission oil cooling valve

8. Unscrew fastening nuts -2-  from transmission oil cooling valve holder -3-  and remove transmission oil cooling valve holder -3-  until the ground point is accessible.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Transmission oil cooling valve holder

9. Unscrew fastening nut -4-  from ground point for the left longitudinal member and remove ground lines -5-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Ground point for left longitudinal member

10. Unclip line bracket -6-  with section of line for transmission oil cooling valve -7-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for transmission oil cooling valve

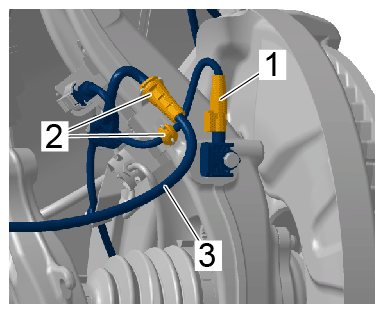

11. Release and disconnect electric plug connection for front left speed sensor -1-  .

    > 451119 REMOVING AND INSTALLING FRONT SPEED SENSOR

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for front left speed sensor

12. Pull electric plug connection for brake pad wear sensor -2-  out of the holder and release and disconnect it.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for brake pad wear sensor

13. Pull line bracket -3-  with section of line for the chassis at the left out of the holder.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for chassis, left

14. Release and disconnect electric plug connection for airbag sensor on front left wheel bearing housing -1-  .

    > 695119 REMOVING AND INSTALLING AIRBAG SENSOR

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for airbag sensor on front left wheel bearing housing

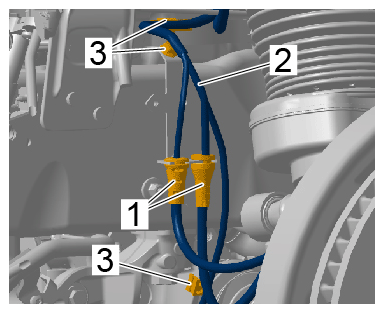

15. Pull line bracket -2-  with section of line for the chassis at the left -3-  out of the holder.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for chassis, left

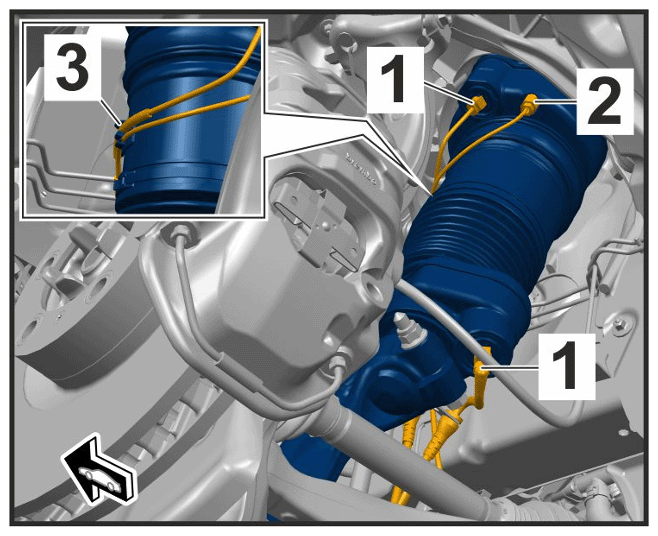

16. Disconnect lines on the air-spring strut.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Lines for air-spring strut

    1. 16.1  Release and disconnect electric plug connections -1-  .
       CAUTION: Escaping residual air

       • Risk of eye injuries
         1. → Wear protective goggles.

       Information

       The cutting ring -1-  and Voss threaded joint -2-  must remain on the air line -3-  .

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.

       Air line

    2. 16.2  Slowly unscrew Voss threaded joint on the air line -2-  and counter at the residual pressure retaining valve at the same time (the pressure retaining valve must not loosen!). Pull off air line.
    3. 16.3  Loosen lines from the brackets -3-  .

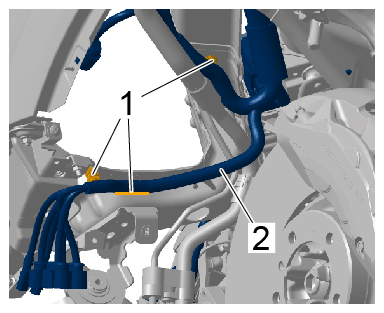

17. Pull line bracket -1-  with section of line for the chassis at the left -2-  out of the holder.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for chassis, left

18. Unclip line bracket -3-  from section of line for the chassis at the left -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for chassis, left

19. Unclip line bracket -1-  with section of line at connection point for front apron -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line at connection point for front apron

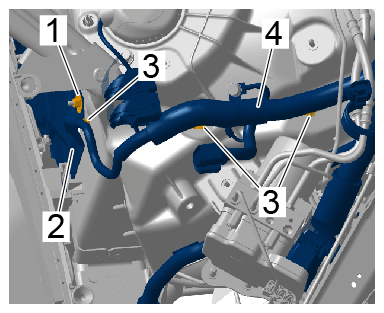

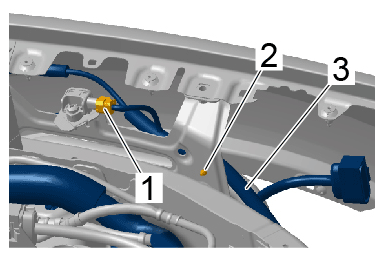

20. Release and disconnect electric plug connection for airbag sensor on front left wing -1-  .

    > 695119 REMOVING AND INSTALLING AIRBAG SENSOR

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for airbag sensor on front left wing

21. Unclip line bracket -2-  with section of line for washer-fluid reservoir -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Section of line for washer-fluid reservoir

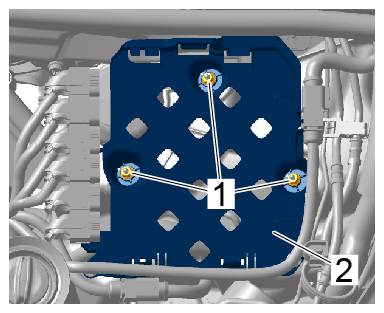

22. Unscrew fastening nuts -1-  and lift DME control unit holder -2-  up as far as required until the ground point underneath is accessible.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    DME control unit holder

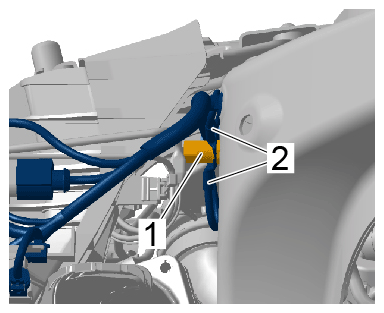

23. Unscrew fastening nut -1-  from ground point for spring strut mount and remove ground lines -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Ground point for spring strut mount

24. Release and disconnect electric plug connections at engine connection points -3-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connections at engine connection points

25. Unclip line bracket -4-  with main wire harness in engine compartment at the left -5-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Main wire harness in engine compartment, left

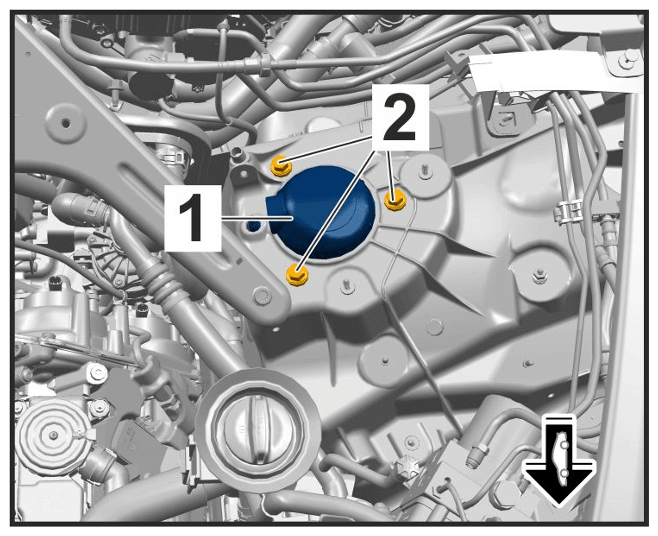

26. Pull off cap on air-spring strut -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cap on air-spring strut

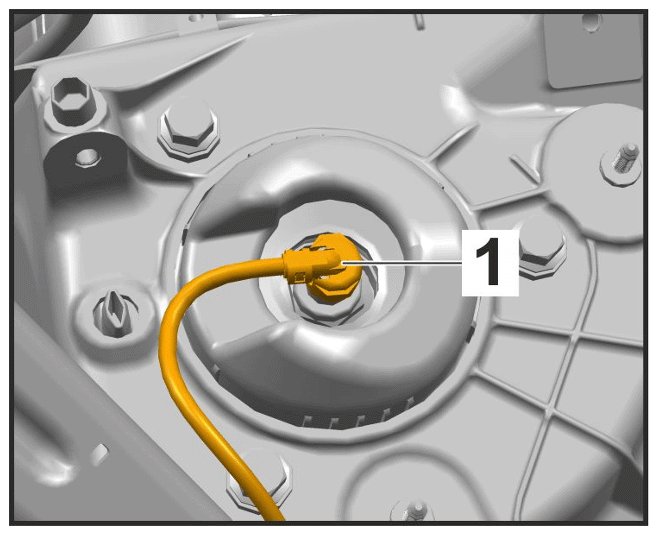

27. Release and disconnect electric plug connection for air-spring strut -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for air-spring strut

28. Unscrew fastening nut -1-  and bend heat shield -2-  towards the engine until the line bracket is accessible.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Heat protection panel

29. Unclip line bracket -3-  with main wire harness in engine compartment at the -4-

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Main wire harness in engine compartment, left

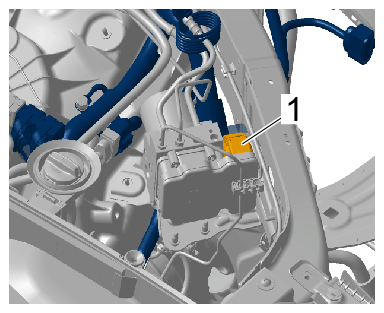

30. Release and disconnect electric plug connection for hydraulic unit -1-  .

    > 453019 REMOVING AND INSTALLING HYDRAULIC UNIT

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for hydraulic unit

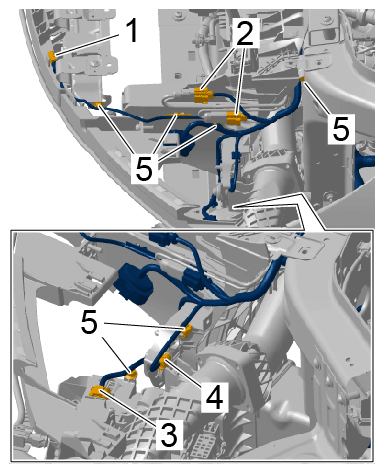

31. Release and disconnect electric plug connection for Bluetooth antenna -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for Bluetooth antenna

32. Unclip, release and disconnect electric plug connections for lower part of lock -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for lower part of lock

33. Release and disconnect electric plug connection for cooling-air flaps on charge-air cooler -3-  .

    > 214819 REMOVING AND INSTALLING COOLING-AIR FLAPS FOR CHARGE-AIR COOLER

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for cooling-air flaps on charge-air cooler

34. Release and disconnect electric plug connection for airbag sensor at the left lock carrier -4-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection for airbag sensor at left lock carrier

35. Unclip line bracket -5-  with section of line for the lock carrier.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unclip section of line for lock carrier.

36. Unscrew fastening nut -1-  from ground point for the front left longitudinal member and remove ground lines -2-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Ground point for front left longitudinal member
