Subsequent Work

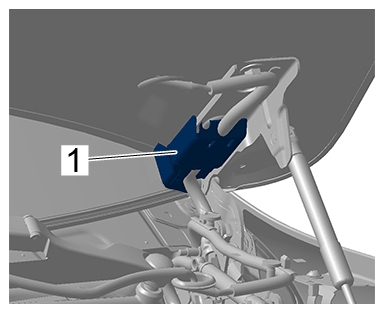

  1. Install cable cover -1-  on hinge.
    G15261333Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable cover

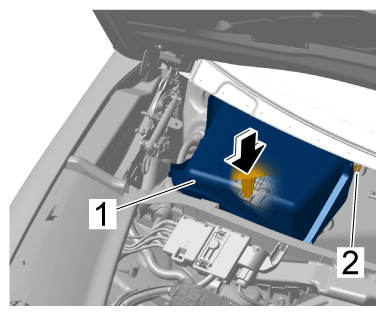

  2. Install cover -1-  on cold air intake.
    G15261334Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

    1. 2.1  Fit cover -1-  and engage guide pins -2-  .
    2. 2.2  Lock cover -1-  on cold air intake -Arrow-  .
  3. Install windscreen-washer spray nozzles.

    > 926619 REMOVING AND INSTALLING WINDSCREEN-WASHER SPRAY NOZZLE

  4. Install brake booster.

    > 477019 REMOVING AND INSTALLING BRAKE BOOSTER

  5. Secure battery ground strap.

    > 978509 LOOSENING AND SECURING GROUND STRAP FOR BATTERY
