Preliminary Work

  1. Loosen battery ground strap.

    > 978509 LOOSENING AND SECURING GROUND STRAP FOR BATTERY

  2. Remove brake booster.

    > 477019 REMOVING AND INSTALLING BRAKE BOOSTER

  3. Remove windscreen-washer spray nozzles.

    > 926619 REMOVING AND INSTALLING WINDSCREEN-WASHER SPRAY NOZZLE

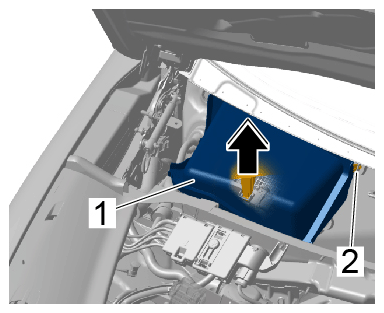

  4. Remove cover -1-  on cold air intake.
    G15261317Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

    1. 4.1  Release cover -1-  on cold air intake -Arrow-  .
    2. 4.2  Press guide pins -2-  together and remove cover

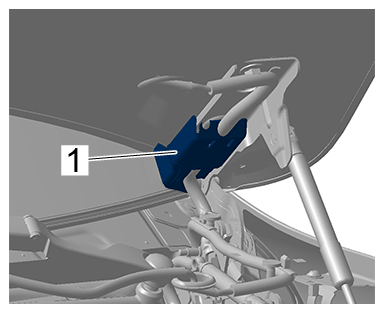

  5. Remove cable cover -1-  from hinge.
    G15261318Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable cover
