Loosening Main Wire Harness In Plenum Panel

NOTIFICATION

Incorrect handling of main wire harness

• Risk of damage to lines
  1. → The main wire harness contains all airbag lines, antenna lines and optical waveguides.
  2. → The main wire harness must not be separated and is always replaced as a complete wire harness when carrying out extensive repairs.
  3. → If individual lines are damaged, shut off these lines and install new lines. Lay the new lines along the main wire harness and secure them to the main wire harness.

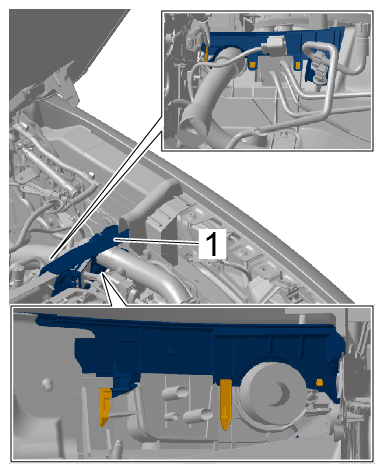

1. Unclip and open grommet for main wire harness in right plenum panel -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Grommet for main wire harness in right plenum panel

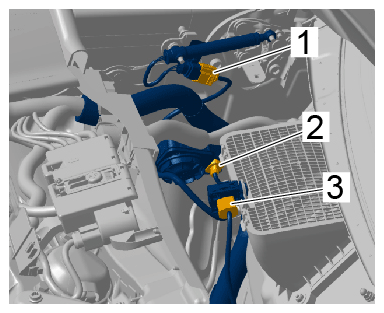

2. Release and disconnect electric plug connection for ignition module for front lid (pedestrian protection) at the right -1-  .

   > 696919 REMOVING AND INSTALLING IGNITION MODULE FOR FRONT LID (PEDESTRIAN PROTECTION)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for ignition module for front lid (pede strain protection) at the right

3. Release and disconnect electric plug connection for alarm siren -2-  .

   > 966519 REMOVING AND INSTALLING ALARM SIREN

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for alarm siren

4. Release and disconnect electric plug connection for air quality sensor -3-  .

   > 872219 REMOVING AND INSTALLING AIR QUALITY SENSOR

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection on air quality sensor

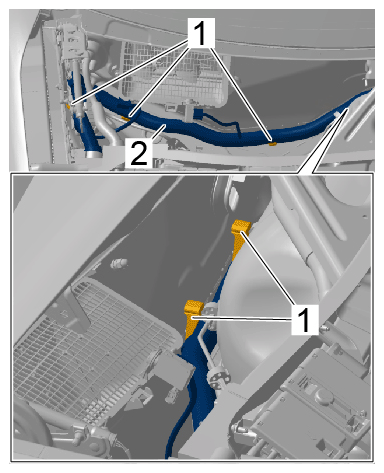

5. Unclip line bracket -1-  with electric lines -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Line bracket

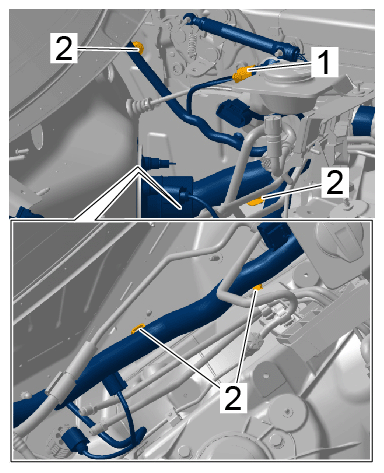

6. Release and disconnect electric plug connection for brake booster vacuum sensor -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for brake booster vacuum sensor

7. Unclip line bracket -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Line bracket

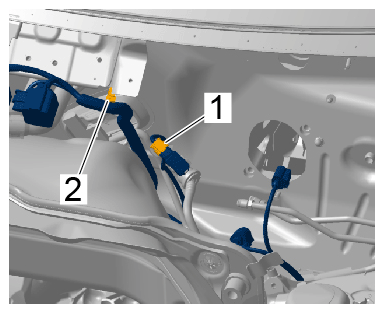

8. Release and disconnect electric plug connection for ignition module for front lid (pedestrian protection) at the left -1-  .

   > 696919 REMOVING AND INSTALLING IGNITION MODULE FOR FRONT LID (PEDESTRIAN PROTECTION)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection for ignition module for front lid (pedestrian protection) at the left

9. Unclip line bracket -2-  and disconnect main wire harness for plenum panel.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Line bracket

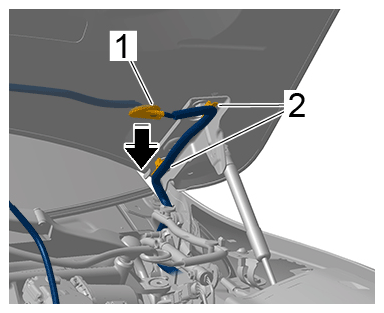

10. Disconnect windscreen washer system hose from front lid.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Hose

    1. 10.1  Pull grommet -1-  out of the front lid -arrow-  .
    2. 10.2  Unclip hose fastenings -2-  on the hinge.
    3. 10.3  Pull hose out of the lid.

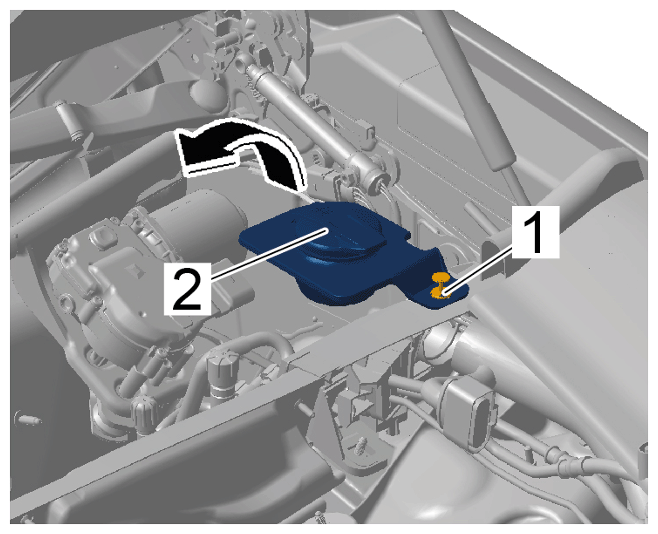

11. Remove expansion rivet -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Expansion rivet on windscreen-washer reservoir

12. Pull filler neck -2-  up and remove it.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Filler neck for windscreen-washer reservoir

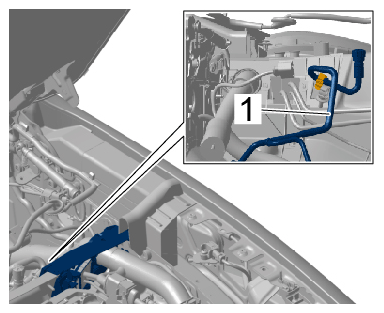

13. Unclip air-conditioning line -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air-conditioning line

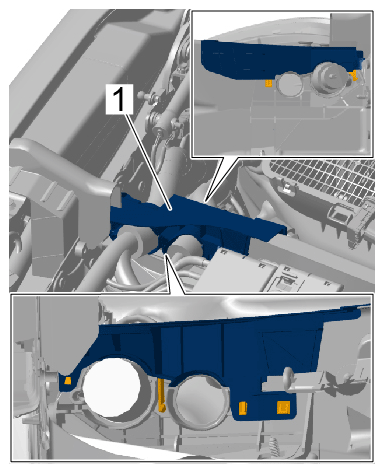

14. Unclip and open grommet for main wire harness in plenum panel -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Grommet for main wire harness in plenum panel
