Installation Position

The main wire harness for the plenum panel is Manufactured individually, depending on equipment.

• Fastening parts may be different from the parts described.
• The number of electric plug connections can vary, depending on equipment.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

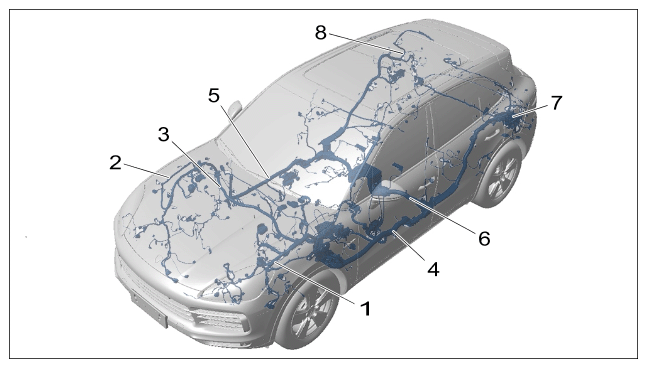

Installation position

1. Main wire harness in plenum panel
