Replacing Fuse Element In Power Distributor (HSB)

Information

Illustration shows one fuse element; the method is identical for the other fuse elements.

When replacing several fuse elements, apply markings or replace fuse elements one by one.

1. Open cover on power distributor (main fuse box) -1- (-Arrow-)  .

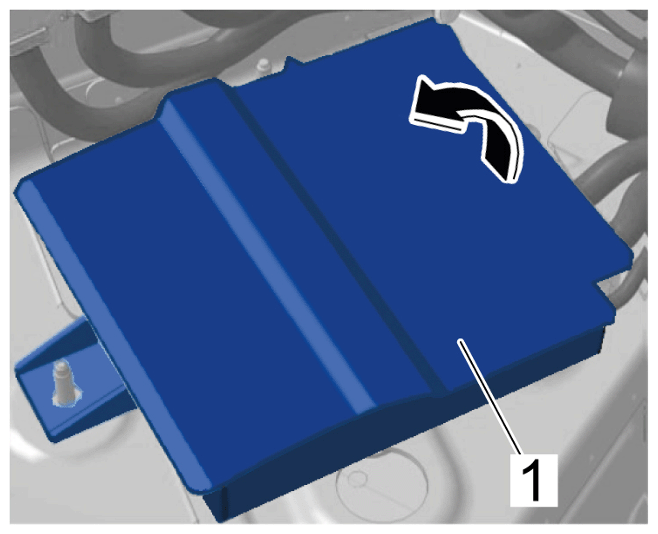

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover on power distributor (main fuse box)

2. Remove fuse element -1-  .

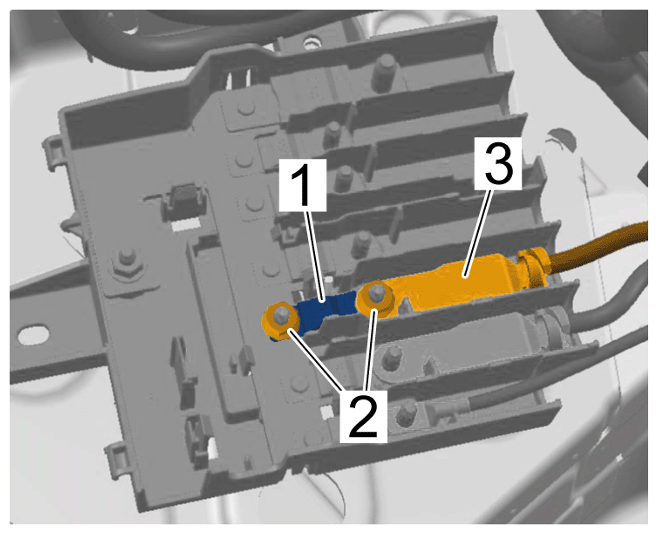

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fuse element

   1. 2.1  Unscrew nuts -2-  and remove electric line -3-  .
   2. 2.2  Remove fuse element -1-  .
3. Insert a new fuse element with a suitable nominal current rating.
4. The remaining installation steps are performed in reverse order. Pay particular attention to the following:

   Tighten fastening nuts on fuse element to > Tightening torque 9 Nm (6.5 ftlb.)  .
