Seam Welding

Designation	Geometry	Note	Illustration	Picture
Rough seam	approx. 25 mm x approx. 3 mm	Variations: 1.5 - 3.0 mm thick 20 - 50 mm wide	green	Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rough seam
Bodyshell seam	approx. 25 mm x approx. 3 mm	Variations: 1.5 - 3.0 mm thick 20 - 50 mm wide Roughly paint seam, do not smooth out	Grey	Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bodyshell seam

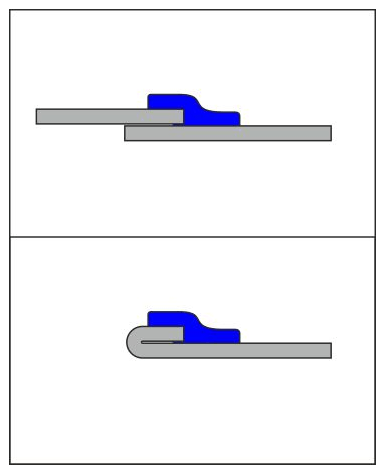

Fine seam	approx. 6 - 8 mm x approx. 3 mm	Seal on add-on parts, such as doors and covers Seam is visible, make sure it looks OK.	blue	Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fine seam
Seam painted	approx. 40 mm x approx. 2 mm	Roughly paint seam, do not smooth out	Yellow	Courtesy of PORSCHE CARS NORTH AMERICA, INC. Seam painted

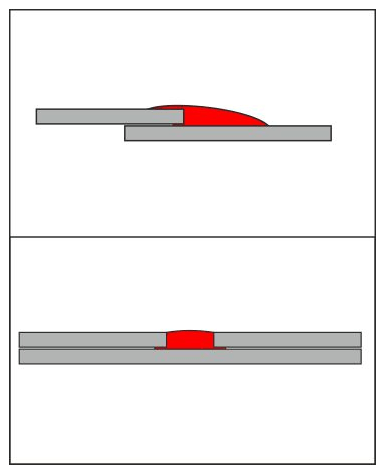

Seam smoothed out	Finisled nush	Pull off flat using a tool (e.g. rubber scraper) Seam must not build up Mostly in window contact area	Red	Courtesy of PORSCHE CARS NORTH AMERICA, INC. Seam smoothed out

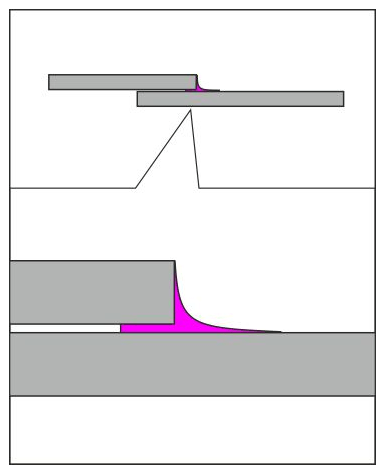

Visible seam	Fillet weld on flange	Seam must not build up Seam is visible, make sure it looks OK	pink	Courtesy of PORSCHE CARS NORTH AMERICA, INC. Visible seam
