Body Construction Materials

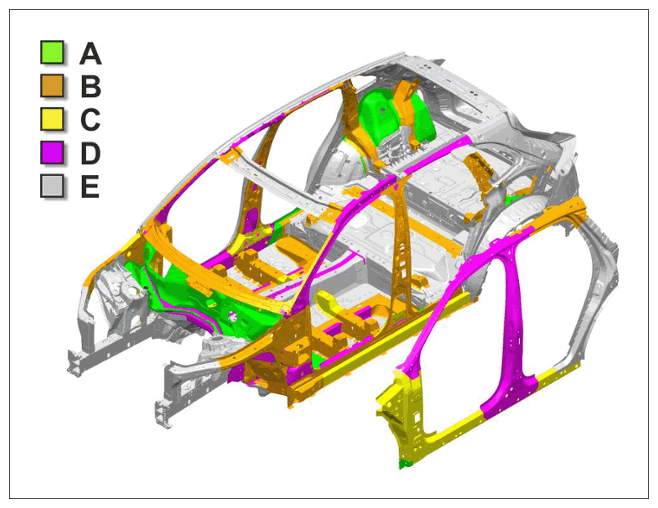

Fig 1: Upper Body Components Structure Identification Materials (Cayenne)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper structural parts Cayenne

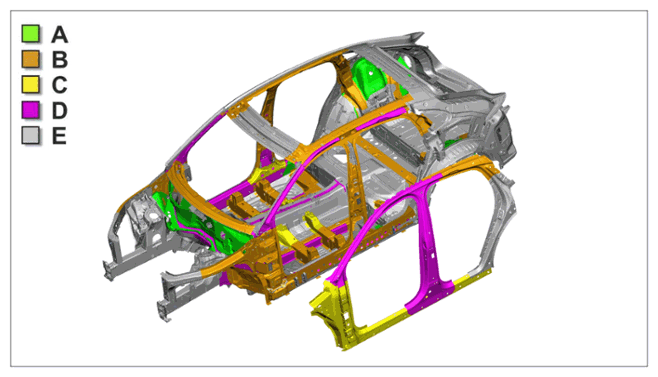

Fig 2: Upper Body Components Structure Identification Materials (Cayenne Coupe)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper structural parts Cayenne Coupe

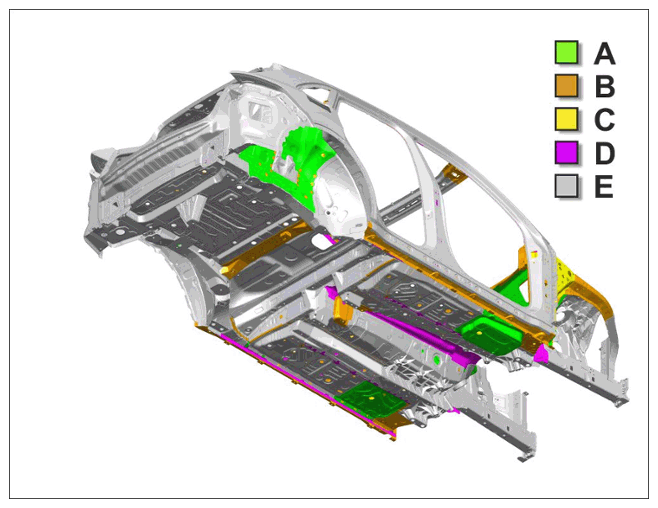

Fig 3: Lower Body Components Structure Identification Materials

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower'structuraf parts

Pos	Material group	Use/Characteristics
A	Sheet steel	Outer skin parts very malleable Can be MIG welded Part replacement as per Workshop Service Information
B	High-strength steel	Reinforcement parts moderately to poorly malleable Can be MIG welded Part replacement as per Workshop Service Information
C	Very-high-strength steel	Reinforcement parts non-malleable Can be MIG welded Can be resistance spot-welded only using approved welders Part replacement is not permitted
D	Ultra-high-strength steel	Pillars and beams non-malleable MIG welding permitted only in exceptional cases Can be resistance spot-welded only using approved welders Part replacement is not permitted
