Removing Cross Member Rear

  1. Open jointing points.

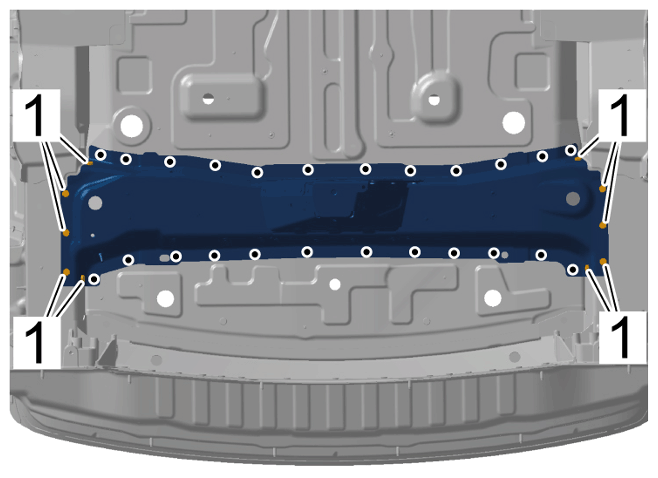

    G16140538

    Jointing points

    1. 1.1  Unscrew self-tapping screws -1-  .
    2. 1.2  Remove punch rivets using > VAS 852 001 - body dent removal unit, aluminium  and > VAS 6790 - compact booster  .

      > 5X00IN23 REPLACE PUNCH RIVETS AND PENETRATED JOINTS

  2. Heat bonding areas using > V.A.G 1416 - hot-air blower  .

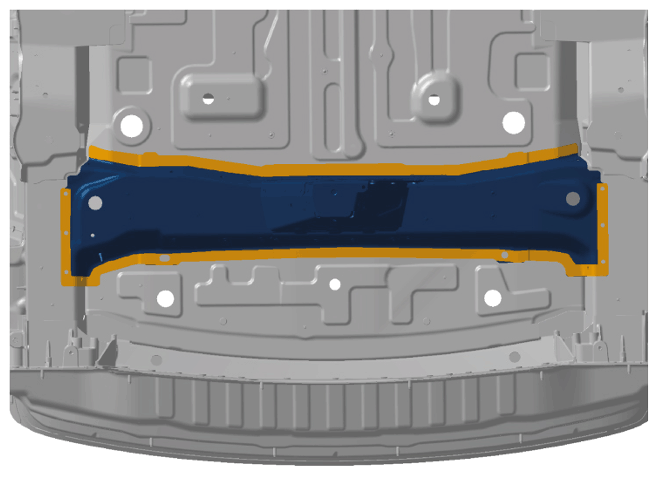

    G16140539

    Bonding areas

  3. Remove cross member rear.
