Preparing Connection Areas Of Body For Installing The End Plates Of The Rear Cross Member

  1. Align the sealing surface and connections of the body.
  2. Prepare marked areas > Bonding and riveting areas for fl oor assembly  for bonding and riveting.

    > 5X00IN21 WORK WITH BODY STRUCTURAL ADHESIVE

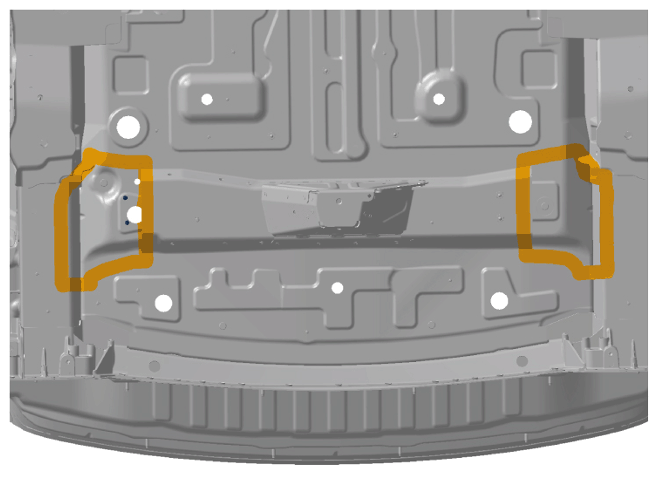

    G16140548

    Bonding and riveting areas for floor assembly
