Installing End Plates For Rear Cross Member

Install end plates for cross member rear and check for correct fit.
Apply adhesive on joint areas of the body.
Apply adhesive evenly over the entire bonding surface.

> Application depth 0.5 mm

> 5X00IN21 WORK WITH BODY STRUCTURAL ADHESIVE

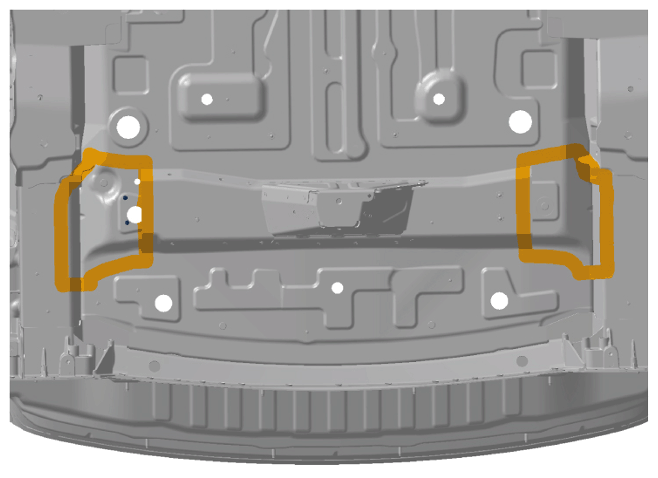

Bonding and riveting areas for floor assembly
Apply adhesive on end plate for rear cross member.

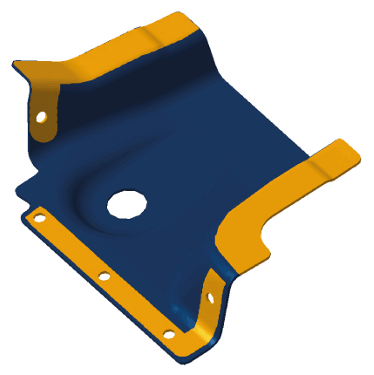

Bonding and riveting areas for connecting plates
1. 3.1 Apply adhesive evenly over the entire bonding surface.
  > Application depth 0.5 mm

  > 5X00IN21 WORK WITH BODY STRUCTURAL ADHESIVE
2. 3.2 Also apply a bead of adhesive all around the bonding surface. > Application depth 3 mm
Set blind rivets > Blind rivets on connection plates.
Areas -A- : > BLIND RIVETS PAF.009.075

Areas -B- : > BLIND RIVETS PAF.009.769

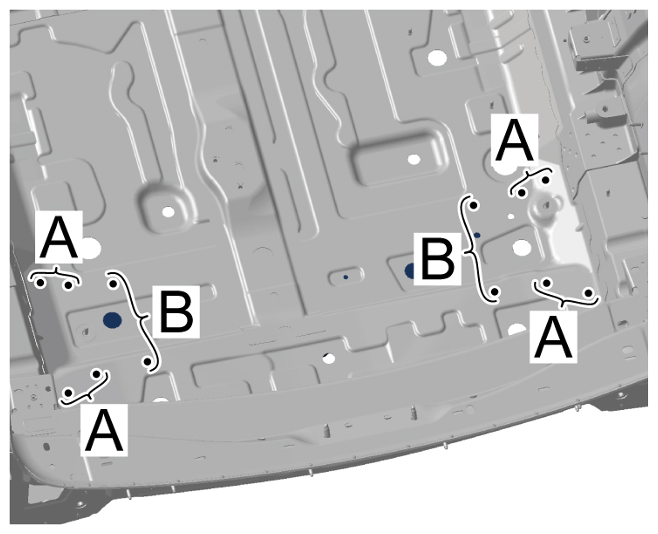

Blind rivets on connection plates
Set joints.

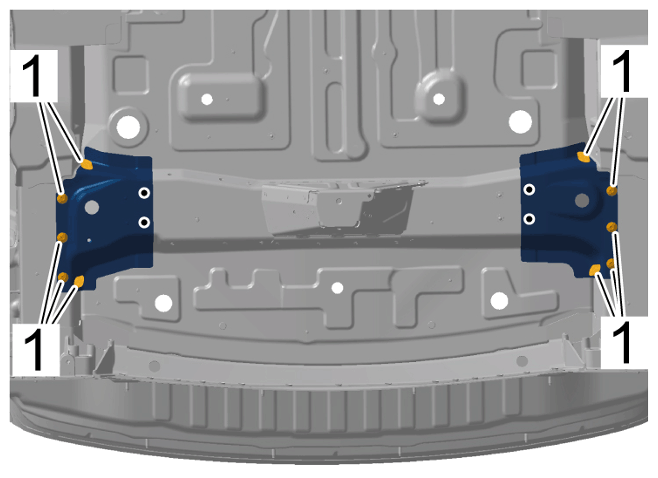

Joining points for connecting plates
1. 5.1 Screw in self-tapping screws -1- .
  > 5X00IN24 SET SELF-TAPPING SCREWS
2. 5.2 Set blind rivets. > BLIND RIVETS PAF.009.769
