Technical Values
TIGHTENING TORQUE SPECIFICATIONS
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

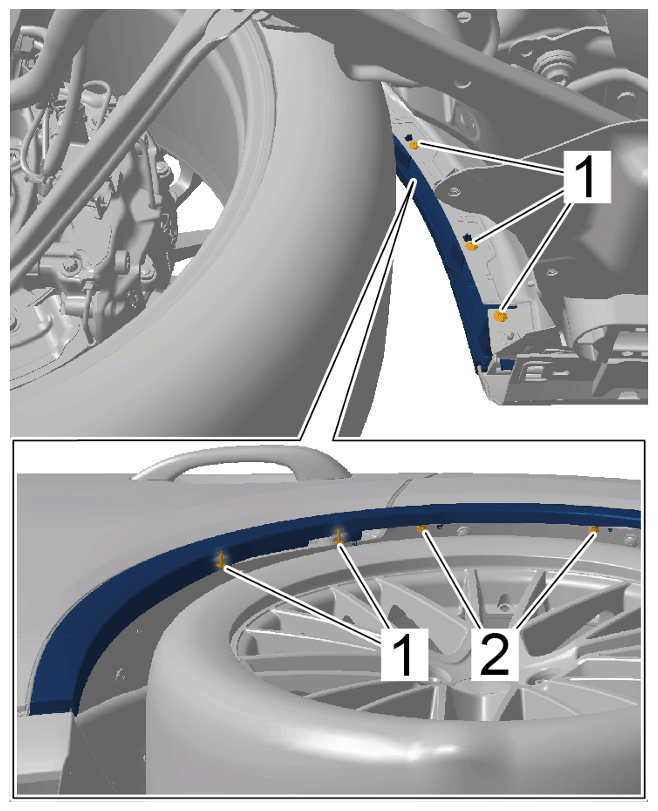

| Screw for rear wheel cover | Item 1 | Tightening torque | 1.5 Nm (1.1 ftlb.) | ||
|
Screw for rear wheel cover |
|||||

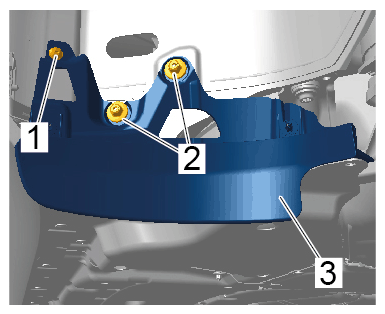

| Nut securing lower section of wheel housing liner to wheel cover | Item 2 | Tightening torque | 2.5 Nm (1.8 ftlb.) | ||
|
Screw for wheel cover |
|||||
| Screw securing lower section of wheel housing liner to rear wheel cover to | Item 1 | Tightening torque | 2 Nm (1.5 ftlb.) | ||
|
Screw for wheel cover |
|||||
