Removing Rear Wheel Housing Liner (Lower Section)

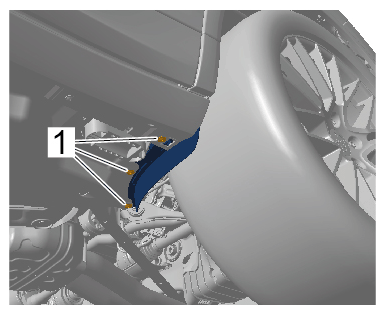

  1. Unscrew and remove screws -1-  .
    G16140480

    Screws

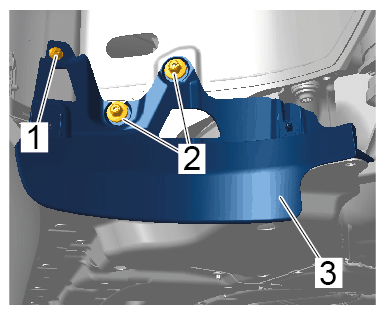

  2. Unscrew screw -1-  .
    G16140481

    Screw

  3. Unscrew nuts -2-  .
    G16140482

    Nuts

  4. Remove lower section of wheel housing liner -3-  .
    G16140483

    Lower section of wheel housing liner
