Removing Rear Wheel Housing Liner

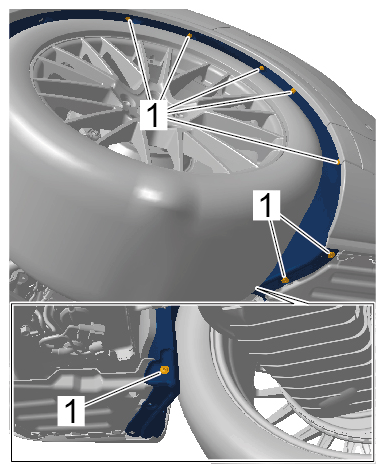

  1. Unscrew fastening screws -1-  from rear wheel housing liner.
    G16140488

    Fastening screws securing rear wheel housing liner to rear apron

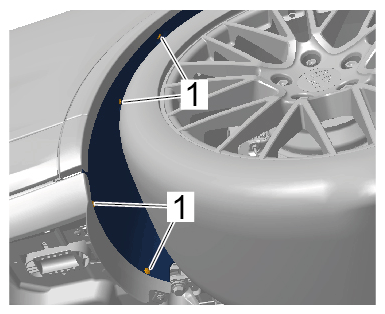

  2. Unscrew fastening screws -1-  from rear wheel housing liner.
    G16140489

    Fastening screws for rear wheel housing liner

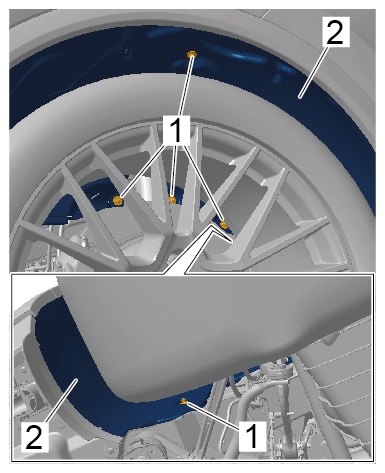

  3. Unscrew units -1-  on rear wheel housing liner -2-  .
    G16140490

    Nuts on rear wheel housing liner

  4. Remove rear wheel housing liner -1-  .
    G16140491

    Rear wheel housing liner
