Preparing Connection Areas Of The Body For Installing The Inner Rear Wheel Housing

  1. Align contact surfaces and connections of the body.
  2. De-burr connection points and prepare them for joining.

    Information

    • Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
    • The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
    • Do not begin bonding work until all materials and tools necessary for later repair work are available.

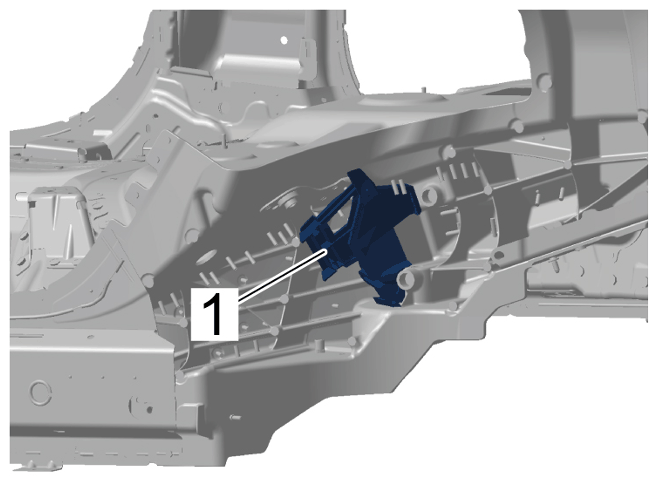

  3. Remove excess pieces of baffle -1-  .
    G16140466

    Excess pieces of baffle

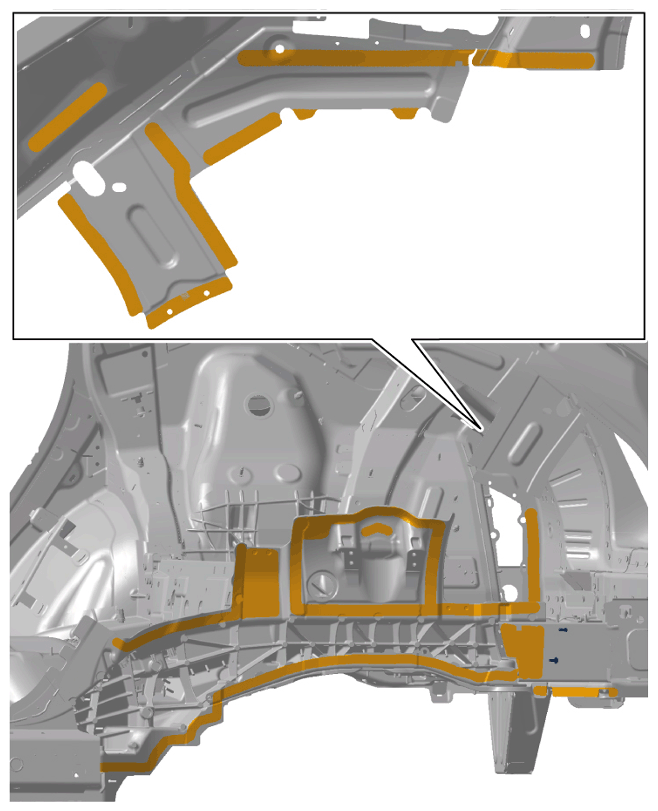

  4. Prepare the marked areas for bonding and riveting.

    > 5X00IN21 WORKING WITH BODY STRUCTURAL ADHESIVE

    G16140467

    Bon ling are a
