Installing Inner Wheel Housing Rear (Left)

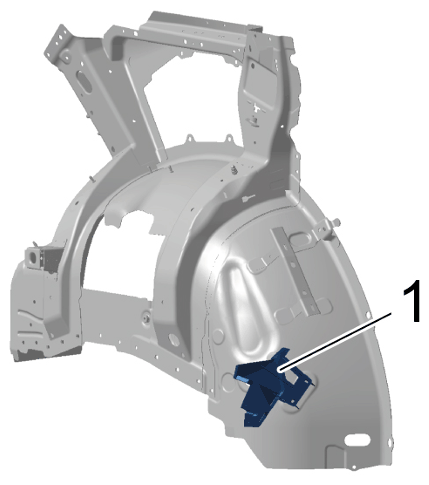

- Install new bulkhead part -1-
on inner wheel housing rear (left).
Baffle
- Install inner wheel housing rear (left) and check that it fits perfectly.
Information
- Apply adhesive evenly over the entire bonding surface.
Information
- Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
- The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
- Do not begin bonding work until all materials and tools necessary for later repair work are available.
- Apply adhesive on joint area of the body. > Application depth 0.5 mm
Work with body structural adhesive.
> 5X00IN21 WORK WITH BODY STRUCTURAL ADHESIVE

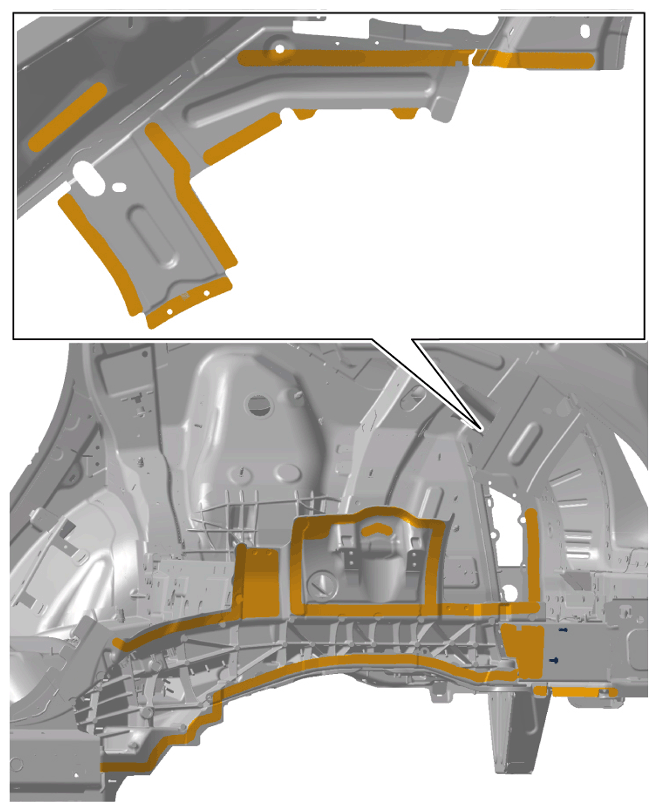

Bonding areas on body side
Information
- Apply adhesive evenly over the entire bonding surface.
- Apply adhesive on inner wheel housing rear (left).

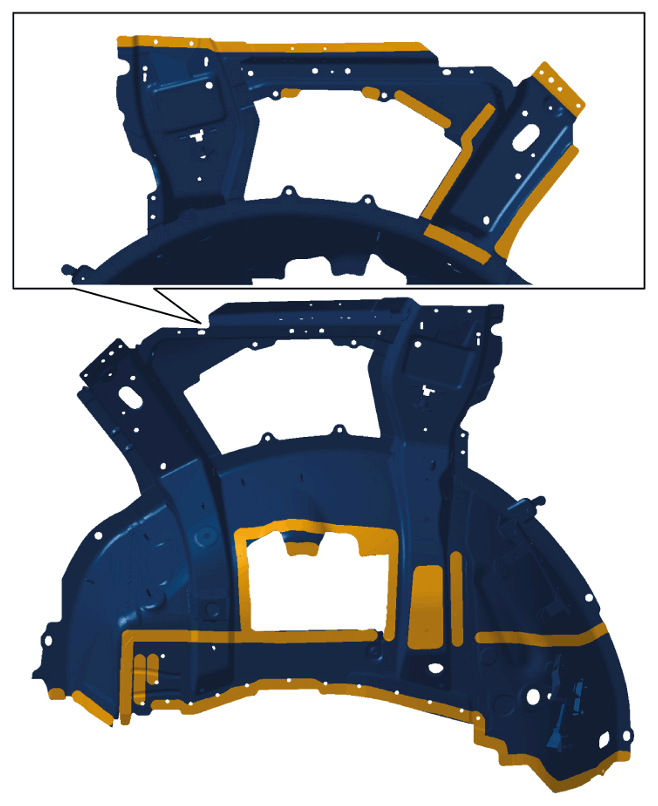

Bonding areas of wheel housing
- 4.1 Apply adhesive on inner wheel housing rear (left). > Application depth 0.5 mm
- 4.2 Also apply a bead of adhesive all around the bonding surface. > Application depth 3 mm
- Rivet in inner wheel housing rear (left) in area -A-
. > FLOW-FORM RIVET 9A7.008.607.00
> 5X00IN23 REPLACE PUNCH RIVETS AND PENETRATED JOINTS
Areas -B- : > BLIND RIVET PAF.008.769
Areas -C- : > BLIND RIVET PAF.009.075

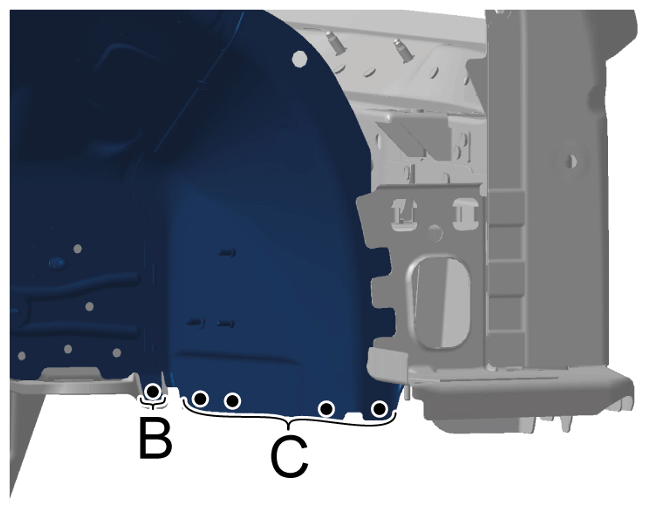

Rivet areas
- Rivet in inner wheel housing rear (left).
Area -B- : > BLIND RIVET PAF.008.769
Area -C- : > BLIND RIVET PAF.009.075

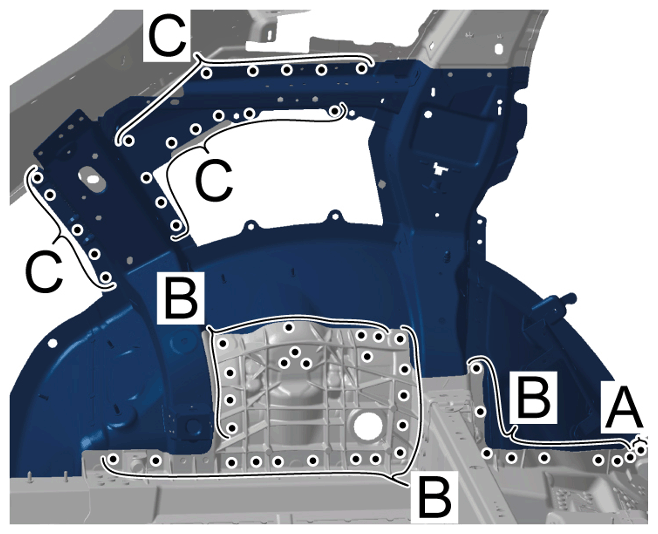

Rivetel areas rear

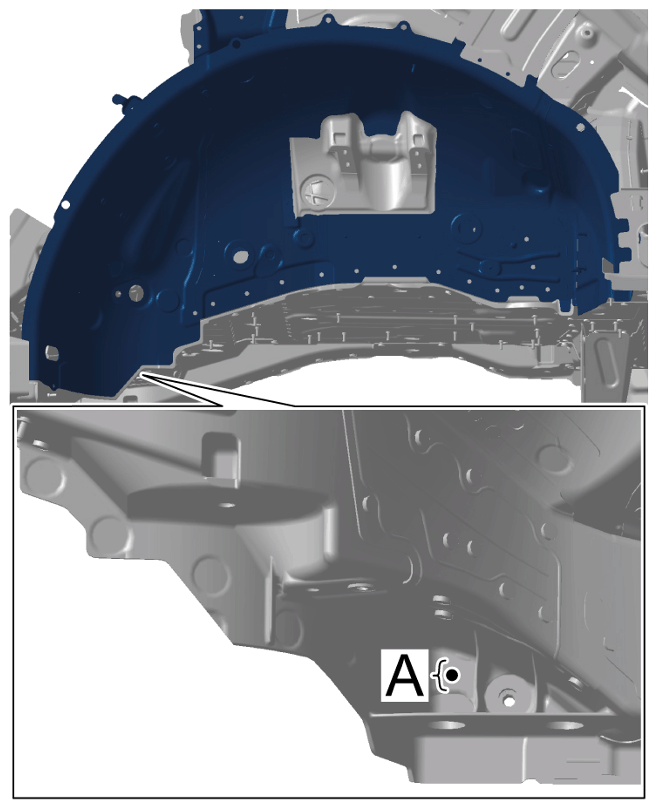

- Secure inner wheel housing rear (left) in area -A-
using a threaded needle.
It will be secured together with the outer rear wheel housing later using > BLIND RIVET PAF.008.769 .
Rivet area
- Screw in self-tapping screws.
> 5X00IN24 SET SELF-TAPPING SCREWS

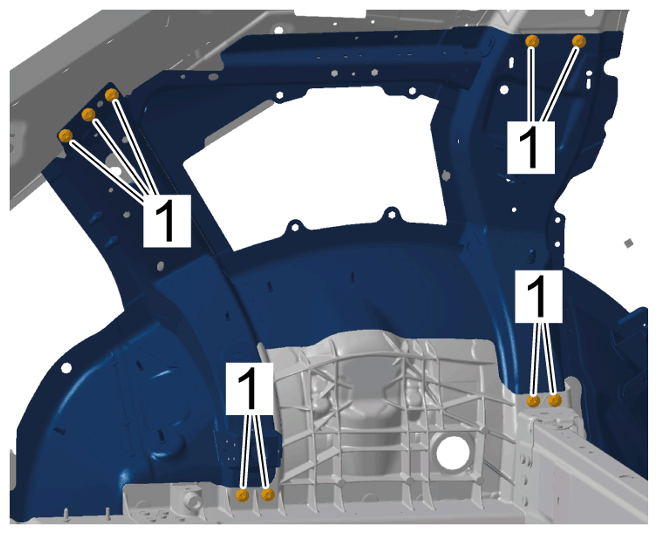

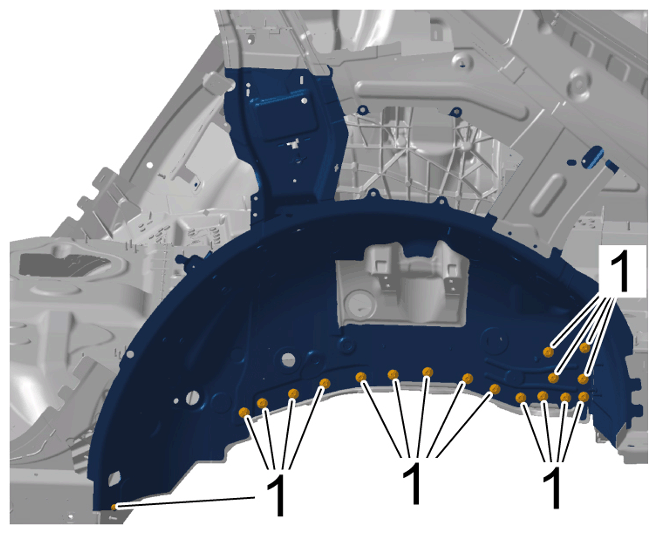

Self-tapping screws
- Screw in self-tapping screws.
> 5X00IN24 SET SELF-TAPPING SCREWS
Screws
