Installing Outer Wheel Housing Rear (Left)

Information

Before final assembly, make sure you fully understand all the work steps involved and carry out a trial assembly without applying adhesive.
The bonding process can only be carried out reliably when a smooth and swift sequence of operations is guaranteed.
Do not begin bonding work until all materials and tools necessary for later repair work are available.

Install outer wheel housing rear (left) and check that it fits perfectly.
Information
- Apply adhesive evenly over the entire bonding surface.

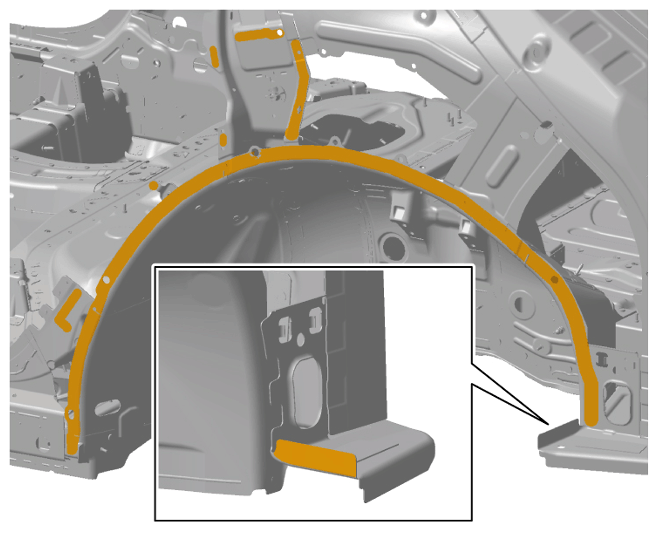

Apply adhesive on bonding area of the body. > Application depth 0.5 mm
Work with body structural adhesive.

> 5X00IN21 WORK WITH BODY STRUCTURAL ADHESIVE

Rear bonding areas

Information
- Apply adhesive evenly over the entire bonding surface.

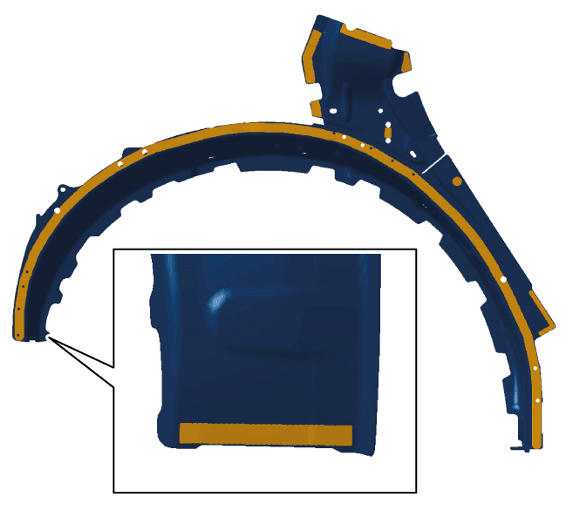

Preparing outer rear wheel housing (left).

Front bonding areas
1. 3.1 Apply adhesive on outer rear wheel housing (left). > Application depth 0.5 mm
2. 3.2 Also apply a bead of adhesive all around the bonding surface. > Application depth 3 mm

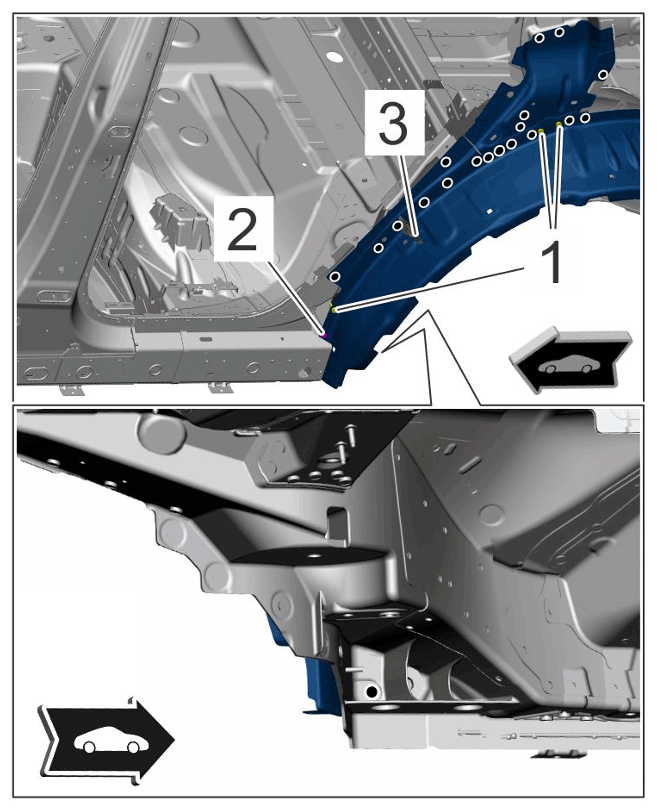

Rivet in outer wheel housing rear (left). > BLIND RIVET PAF.008.769

Front jointing points

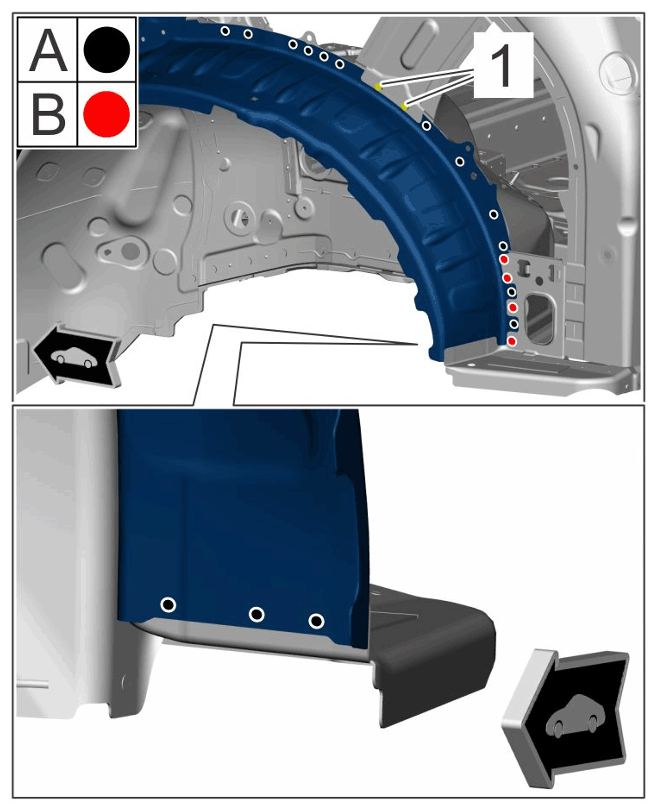

Rivet in outer wheel housing rear (left).

Rear jointing points
1. 5.1 Set rivets -A- . > BLIND RIVET PAF.008.769
2. 5.2 Set rivets -B- from the rear. > BLIND RIVET PAF.008.769
Screw in self-tapping screws -1- and -2- tighten.
> 5X00IN24 SETTING SELF-TAPPING SCREWS

Front jointing points
Screw in self-tapping screws -1- .
> 5X00IN24 SETTING SELF-TAPPING SCREWS

Rear jointing points

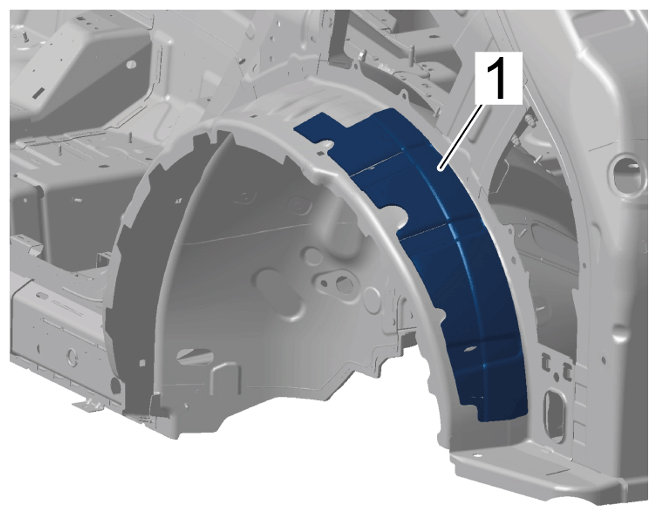

Stick new sound absorber -1- on outer rear wheel housing (left).

Sound absorber
