Removing Side Section Lower Part

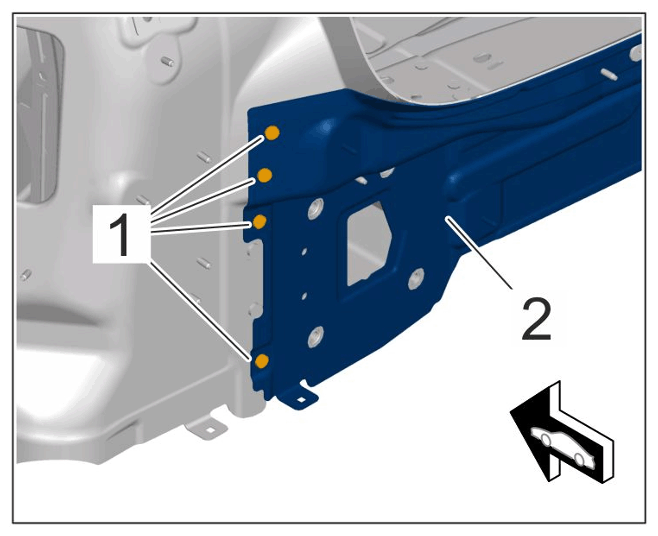

  1. Unscrew self-tapping screws -1-  from rear closing panel -2-  .
    G16140336

    Rear closing panel

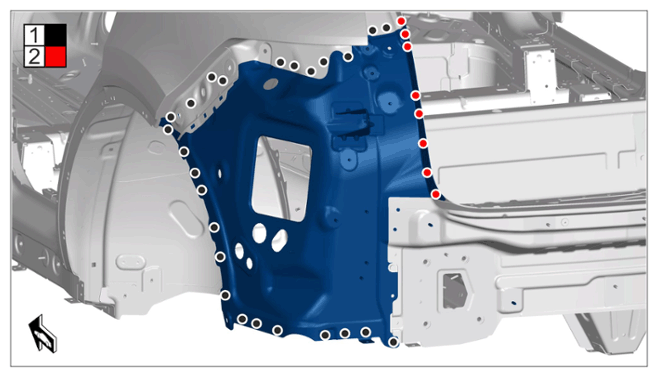

  2. Remove punch rivets -1-  and penetrated joints -2-  using > VAS 852 001 - body dent removal system, aluminium  and > VAS 6790 - Compact booster  .

    > 5X00IN23 REPLACING PUNCH RIVETS AND PENETRATED JOINTS

    G16140337

    Punch rivets and penetrated joints

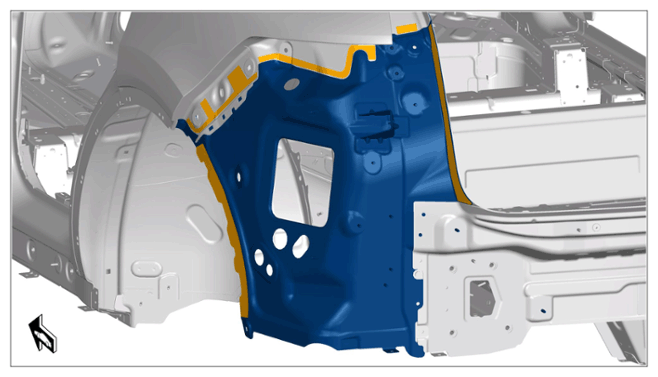

  3. Heat the marked bonding areas using > V.A.G 1416 - hot-air blower  .
    G16140338

    Bonding areas

  4. Remove side section-lower part.
