WM, 53555530 Replacing Side Section Rear: Tools

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G2010/2A-1
G16140220

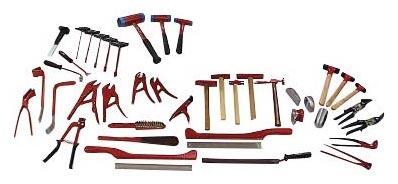

Aluminium tool set General workshop equipment > V.A.G 2010/2A
G16140221

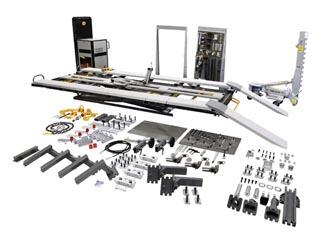

Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G16140222

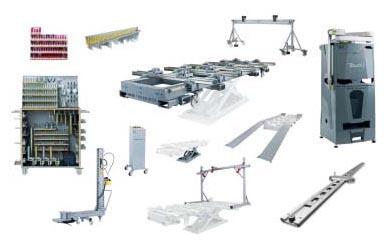

Measuring and straightening system General workshop equipment > VAS 811 017
G16140223

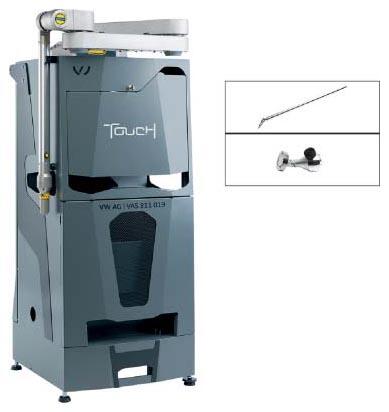

Measuring system Vehicle-specific workshop equipment > VAS 811 019
G16140224

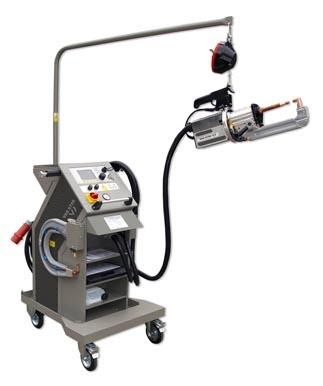

Resistance spot-welding equipment General workshop equipment > VAS 6755
G16140225

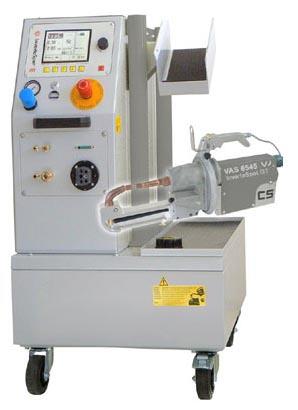

Resistance spot-welding equipment General workshop equipment > VAS 6545A
G16140226

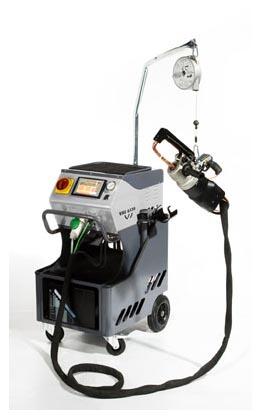

Resistance spot-welding equipment General workshop equipment > VAS 6530A
G16140227
Resistance spot-welding equipment General workshop equipment > VAS 821 101
G16140228
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G16140229

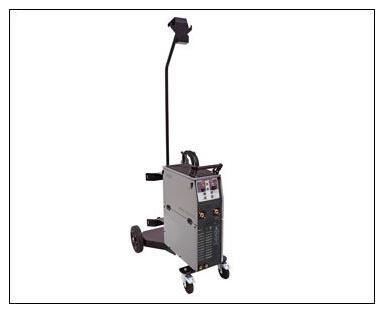

Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 003
G16140230

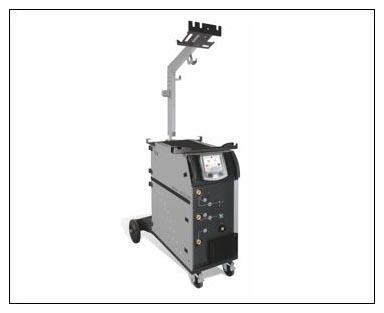

Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 005
G16140231

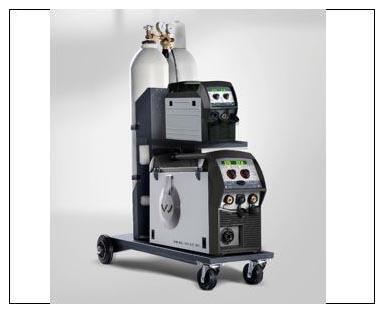

Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 001
G16140232
aluminium weld wire 2 kg Accessory > V.A.G 2001/2
G16140233
aluminium weld wire 7 kg Accessory > V.A.G 2001/1
G16140234
Zinc Romax weld wire 5 kg Accessory > V.A.G 1866/1
Zinc Romax weld wire 15 kg Accessory > V.A.G 1866

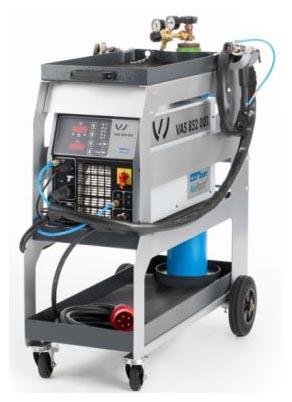

Body dent removal system, aluminium Vehicle-specific workshop equipment > VAS 852 001
G16140235
Mobile extraction system, aluminium General workshop equipment > VAS 6572/2
G16140236
Extraction system, steel General workshop equipment > VAS 6571/1
G16140237

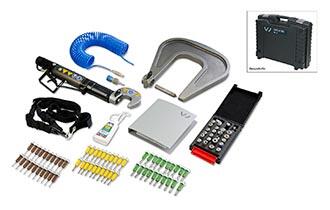

Compact Booster Vehicle-specific workshop equipment > VAS 6790
G16140238
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G16140239

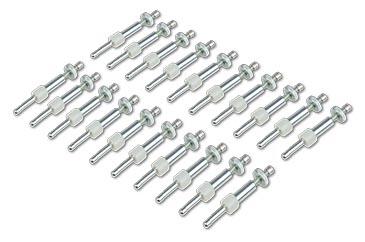

Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G16140240

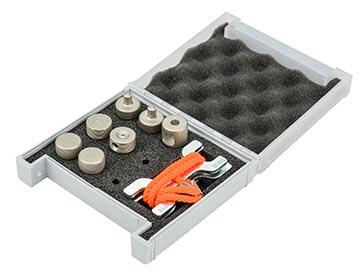

Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G16140241

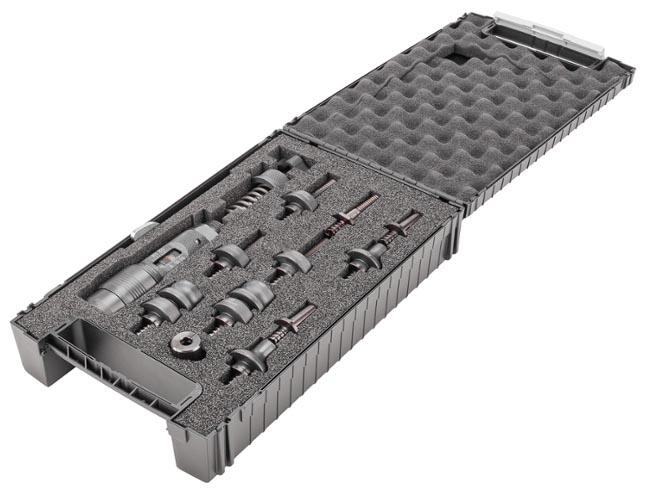

Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G16140242

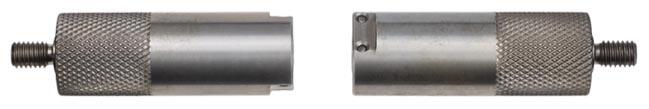

Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G16140243

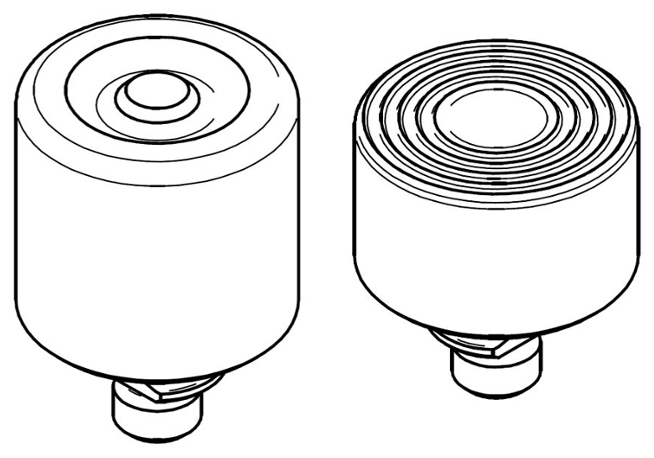

Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G16140244

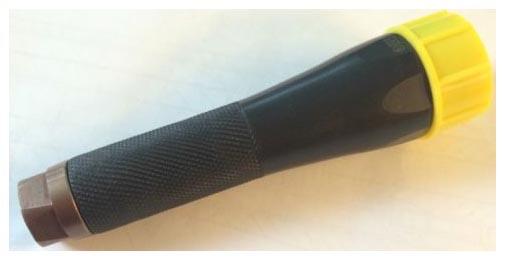

Extension Vehicle-specific workshop equipment > VAS 6792/2
G16140245

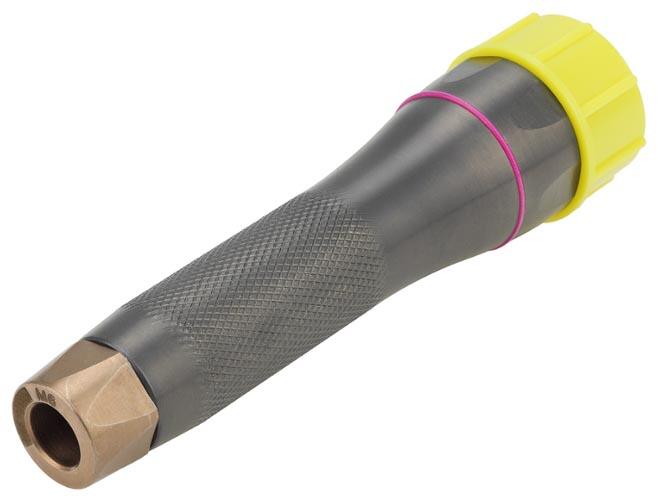

Extension Vehicle-specific workshop equipment > VAS 6792/28
G16140246
Crimping pliers set, 4-piece Vehicle-specific workshop equipment > VAS 6635
G16140247
Crimping pliers Vehicle-specific workshop equipment > VAS 6635/5
G16140248

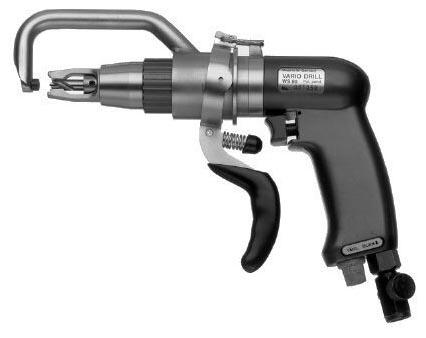

Spot-weld remover General workshop equipment > VAS 882 001
G16140249

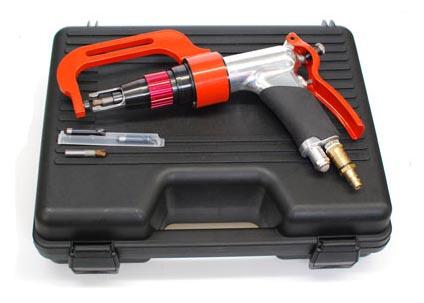

Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G16140250

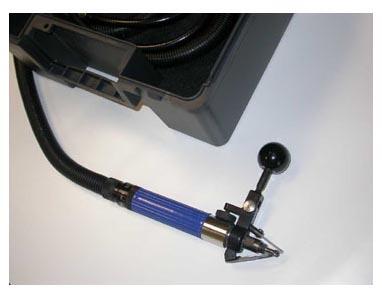

Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G16140251
Body saw General workshop equipment > VAS 882 003

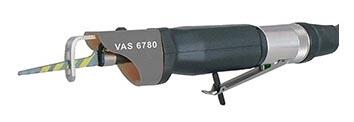

Body saw General workshop equipment > VAS 6780
G16140252
Body saw General workshop equipment > VAS 6598A
G16140253

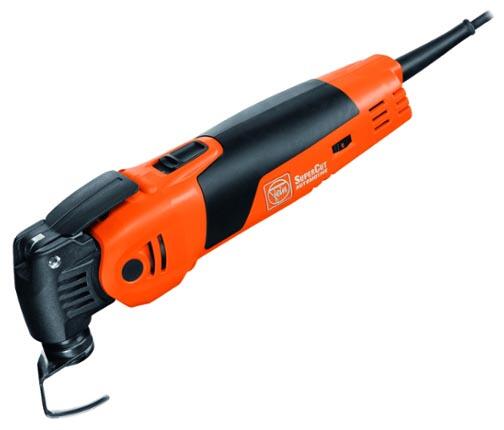

Vibrating knife Vehicle-specific workshop equipment > V.A.G 1561B
G16140254
1CJ° countersink Vehicle-specific workshop equipment > VAS 6957
G16140255

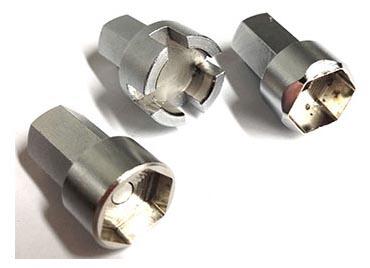

FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G16140256

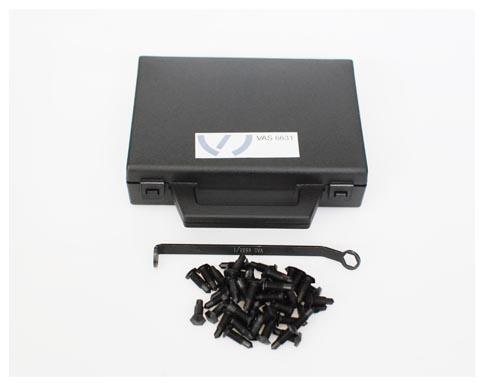

Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G16140257
Brush spotlight set General workshop equipment > VAS 6446A
Spray band Accessory > VAS 6446/10
Spray band Accessory > VAS 6446/11

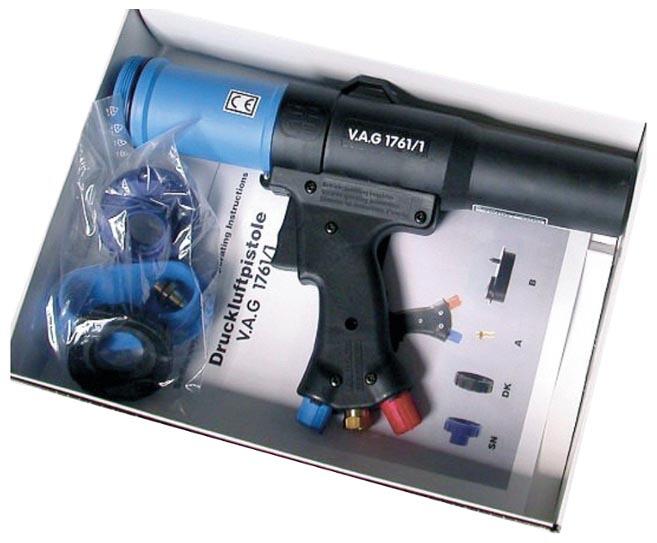

Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G16140258

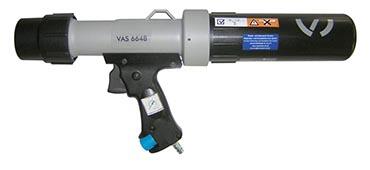

Compressed-air gun General workshop equipment > VAS 6648
G16140259
hand-cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G16140260

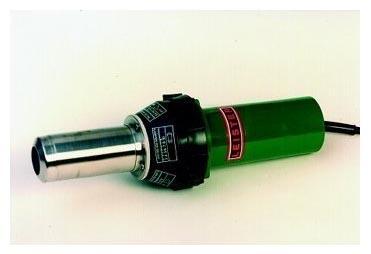

Hot-air blower General workshop equipment > V.A.G 1416
G16140261

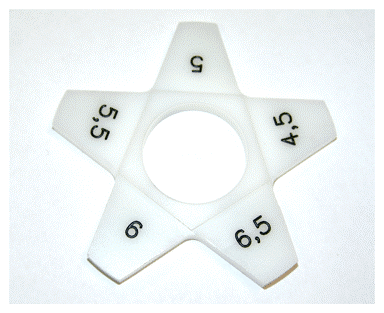

Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G16140262
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G16140263

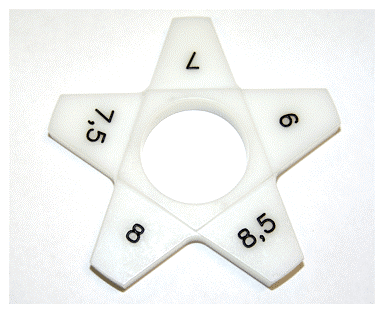

Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G16140264
