Removing Rear Side Section

Information

The insulating mat will be ruined during removal and must be replaced.

Information

Mark cuts in accordance with the new part. Make sure to leave an overlap of approx. 30 mm with respect to the body.

Information

Loosen connection points on one side only. Do not damage the sheet-metal panel underneath.

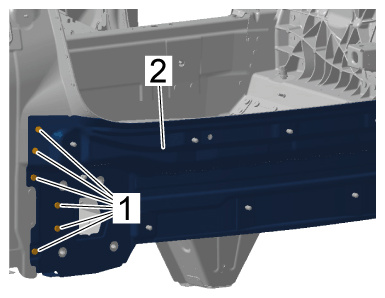

1. Unscrew self-tapping screws -1-  from closing panel rear -2-  .

   Closing panel rear

2. Mark cuts.

   Cut

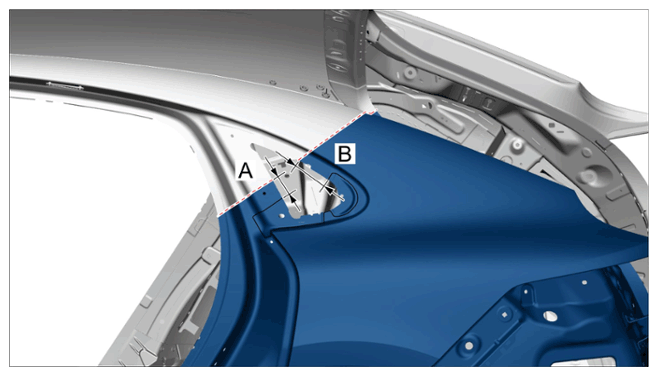

   1. 2.1  Mark cut on the C-pillar at -Dimension A-  > Distance 50 mm  .
   2. 2.2  Mark cut on the D-pillar at the window aperture at -Dimension B-  > Distance 85 mm  .

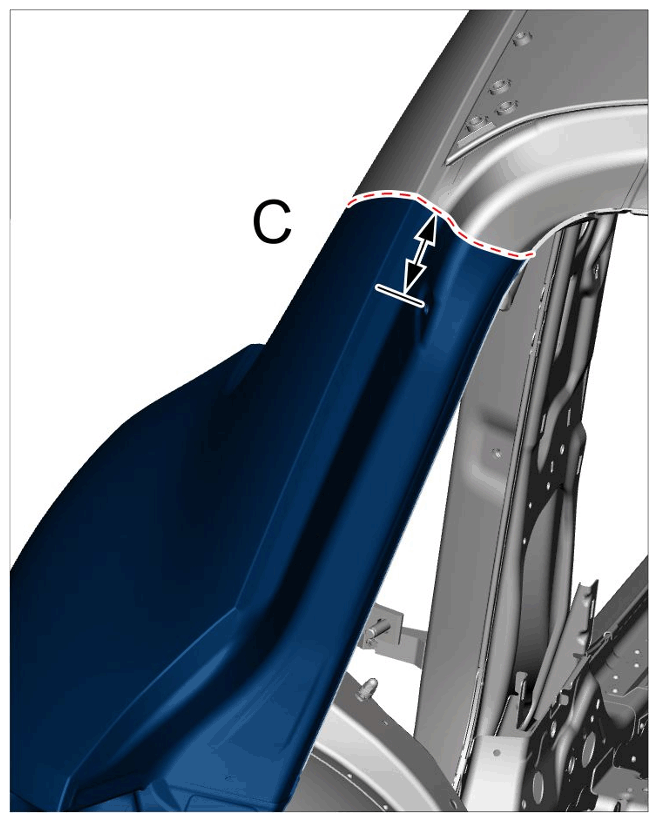

   3. 2.3  Mark cut on the D-pillar at water drain channel at -Dimension C-  > Distance 90 mm  .

      Cut in water drainage channel area

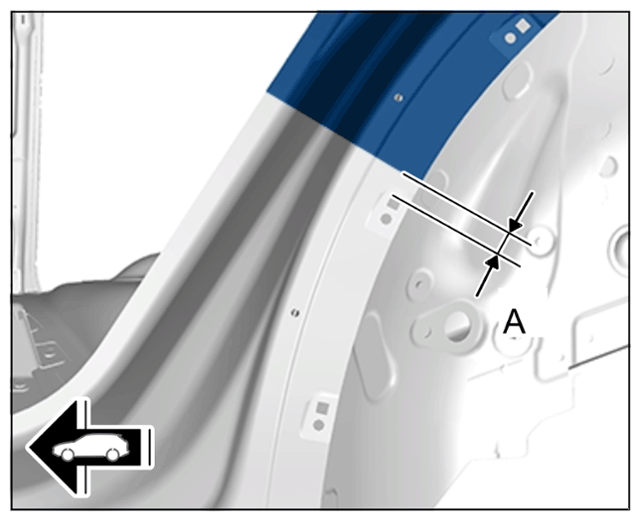

   4. 2.4  Mark cut on lower side panel at -Dimension A-  > Distance 25 mm  .

   Cut on lower side panel

   Information

   Only make cuts in the top plate. Make sure not to damage the plate underneath when doing this.

3. Make cuts.

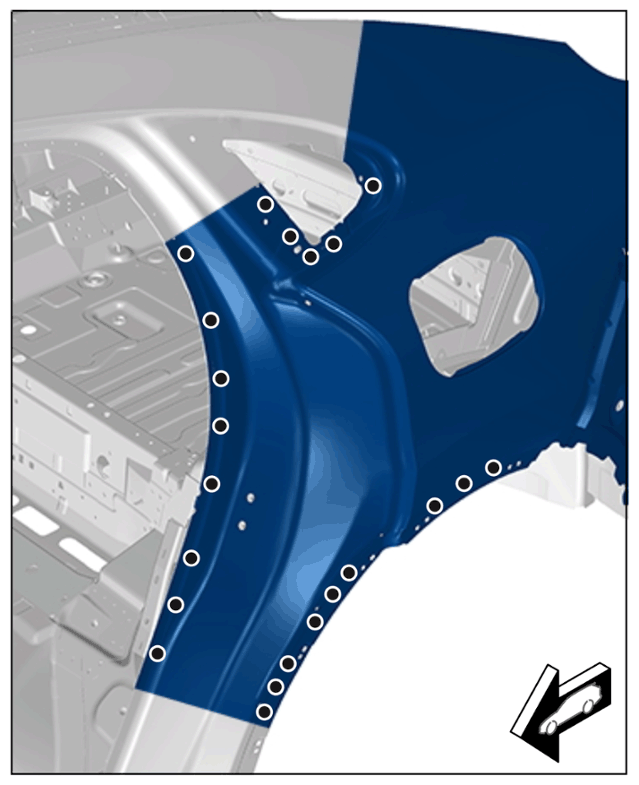

4. Disconnect connection points > Connection points.

   Connection points

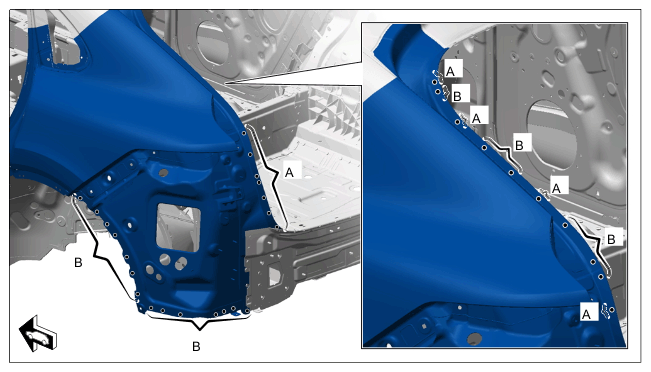

   1. 4.1  Drill through clinch points in areas -A-  using a > with a diameter of 4 mm  .
   2. 4.2  Remove punch rivets in areas -B-  using > VAS 852 001 - body dent removal unit, aluminium  and > VAS 6790 - Compact booster  .

      > 5X00IN23 REPLACE PUNCH RIVETS AND PENETRATED JOINTS

5. Remove punch rivets y  Punch rivets using > VAS 852 001 - body dent removal unit, aluminium  and > VAS 6790 - compact booster  .

   > 5X00IN23 REPLACE PUNCH RIVETS AND PENETRATED JOINTS

   Punch rivets

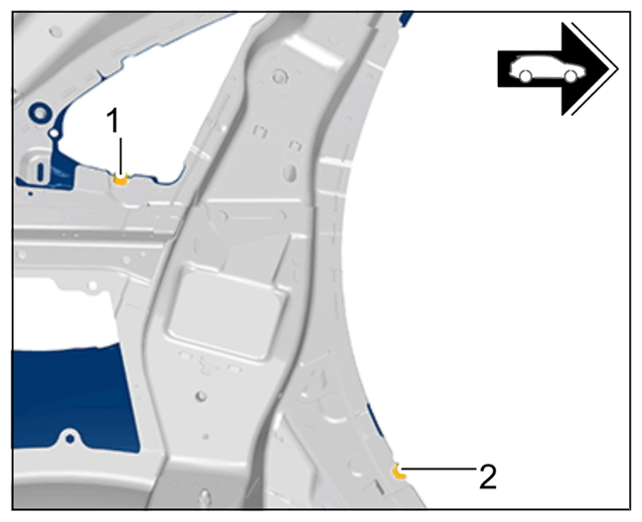

6. Release sheet-metal brackets -1 and 2-  .

   Sheetmetal brackets

   1. 6.1  Heat sheet-metal bracket -2-  using > V.A.G 1416 - hot-air blower  .
   2. 6.2  Bend up sheetmetal brackets -1 and 2-  .

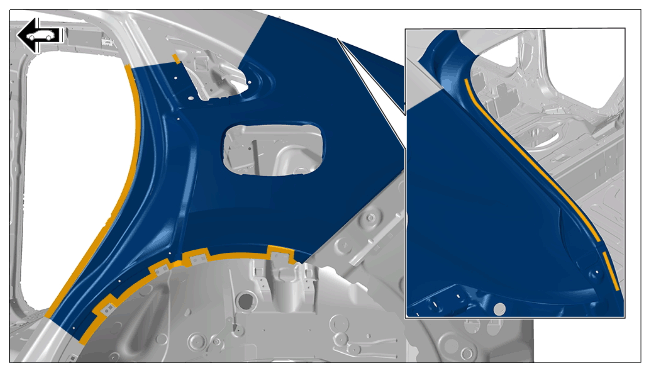

7. Heat bonding areas > Bonding areas  using > V.A.G 1416 - hot-air blower  . > Bonding areas

   Bonding areas

8. Remove side section rear.
